Demolition Hammer 19,1 J, 1510 W, 950

HM1203C

Demolition Hammer 19,1 J, 1510 W, 950 - 1900 ipm

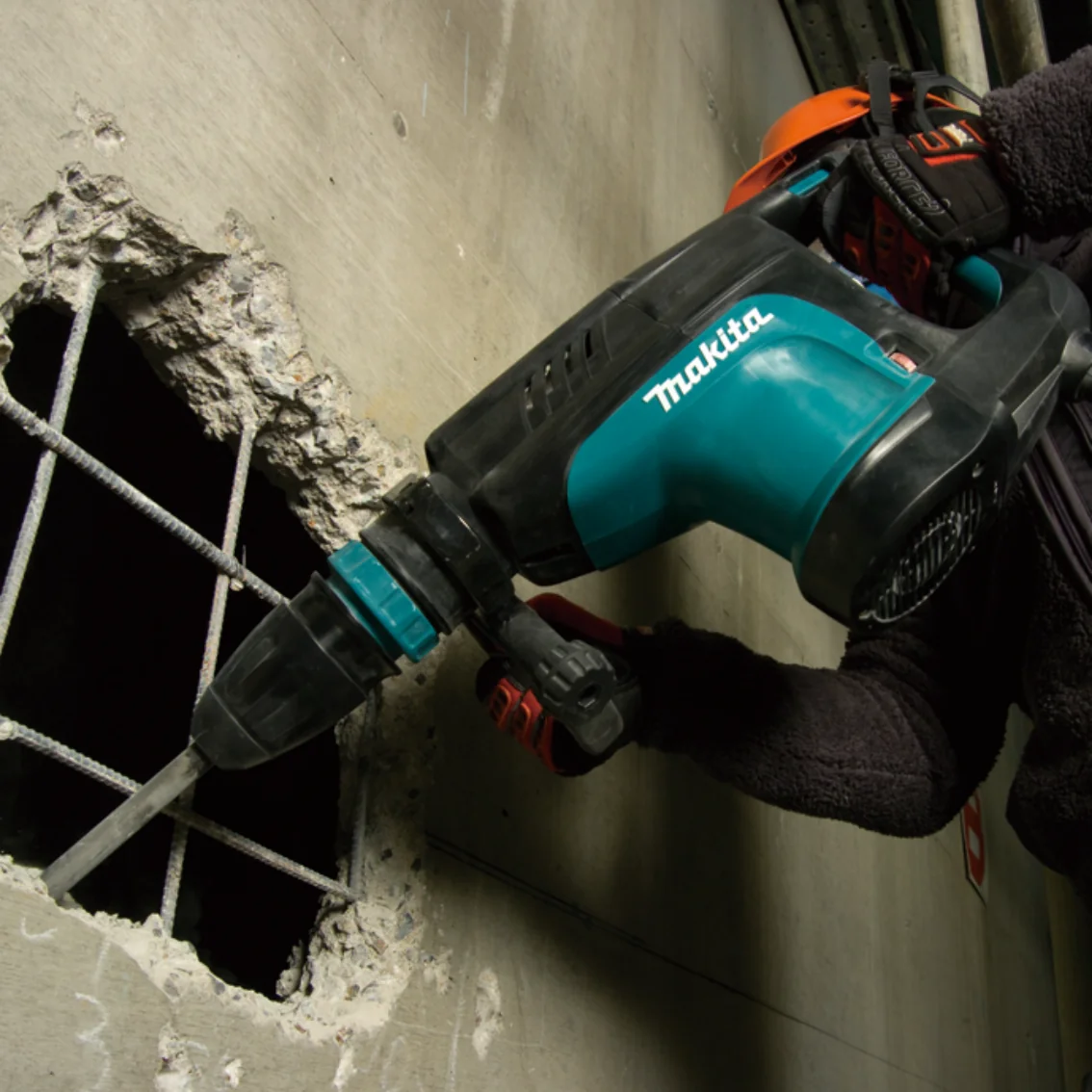

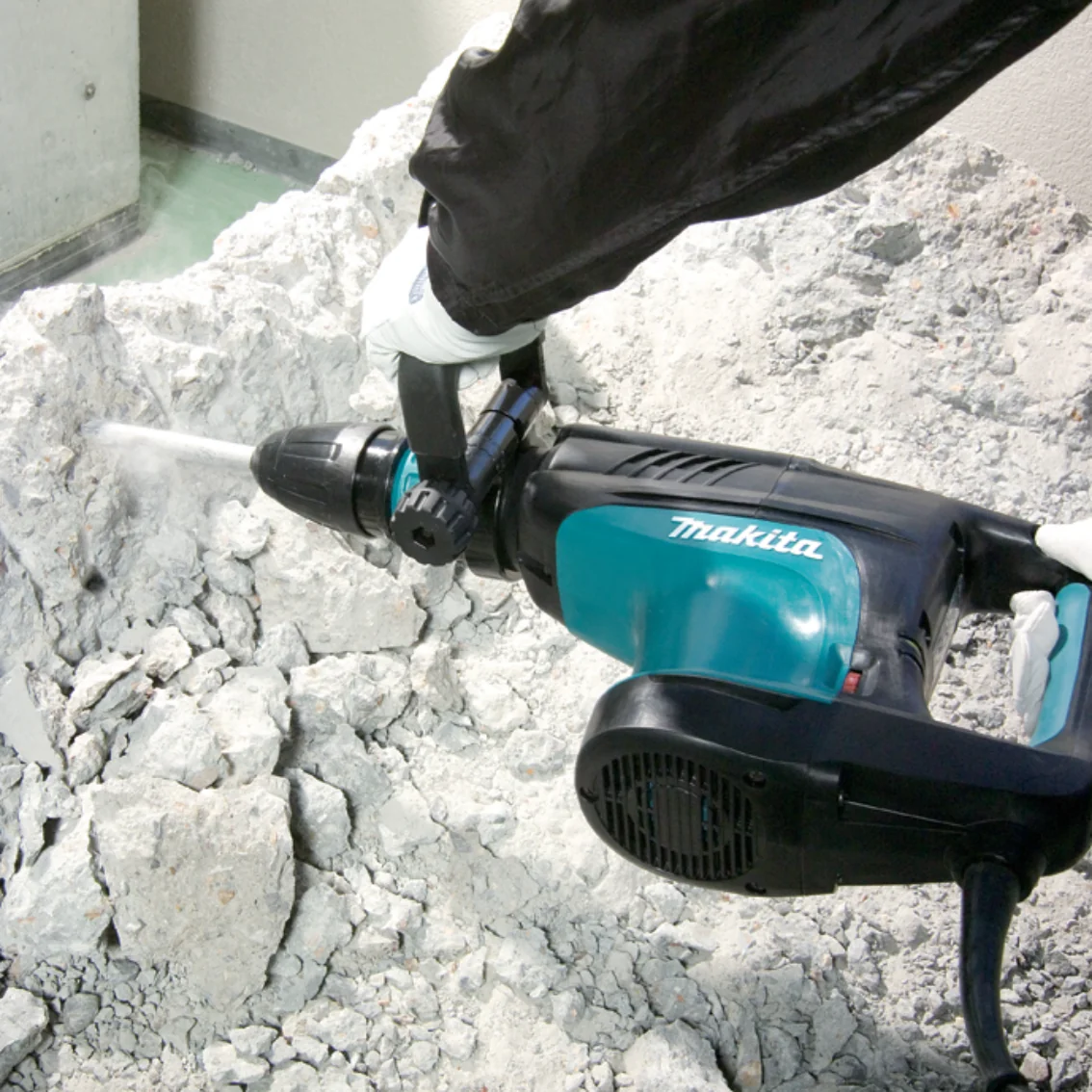

Demolition hammer for heavy-duty work An efficient demolition hammer for extremely heavy-duty applications. Compatible with SDS-MAX bits. Motor capacity of 1 510 W and impact energy of 19.1 J provide efficient material removal. Adjustable impact rate: 950 â 1 900 minâ»Â¹.

Technologies and functions Advantages Specifications

Technologies and functions

Advantages

Compact Power with Less Weight
Powerful 1,510 W motor delivers 19.1 J (EPTA-Procedure 05/2009) of impact energy to handle the most demanding applications
Constant speed control automatically applies additional power to the motor to maintain speed under load to complete the most challenging jobs
Soft start suppresses start-up reaction for more precision and better accuracy
L.E.D. service light notifies the user approximately 8 hours before the brushes need to be replaced
L.E.D. power light indicates switch failure or cord damage
Variable speed control dial enables user to match the speed to the application for greater versatility
Extended life brushes are longer for more work between service intervals and less downtime
12 Bit angle settings allow the bit to be set at different positions for operating convenience
One-touch sliding chuck for easy bit changes
Automatic brush cut-off protects commutator from damage for longer tool life
Rubberized ergonomic soft grip provides more comfort
Makita Motor Advantage engineered with field core interlocking steel laminations, dual ball bearing armature and more copper commutator bars, increasing energy transfer efficiency for more power and longer tool life
Increased repairability with simplified wiring and bit holding mechanism
Double insulated

Specifications

Impact Energy, J 19.1

continuous rating input 1'510

Impacts per Minute, ipm 950 - 1'900

Type of drill chuck Adapted for SDS-MAX bits

Type of motor Brush

Variable speed

Constant speed

Soft start

Double insulated

Dust Collection

Net Weight, kg 9.7

power supply cord, m 4

Vibration level 15.3

Vibration K factor 1.5

Sound pressure level, dB 93

Sound power level, dB 101

Noise K factor, dB 1.72

Carbon brush 175

Depth, mm 576

Width, mm 128

Height, mm 265

Code EAN 0088381601986

Packaged Width, mm 450

Packaged Depth, mm 660

Packaged Height, mm 160

Weight (package), kg 15.78

HS code 8467298509
