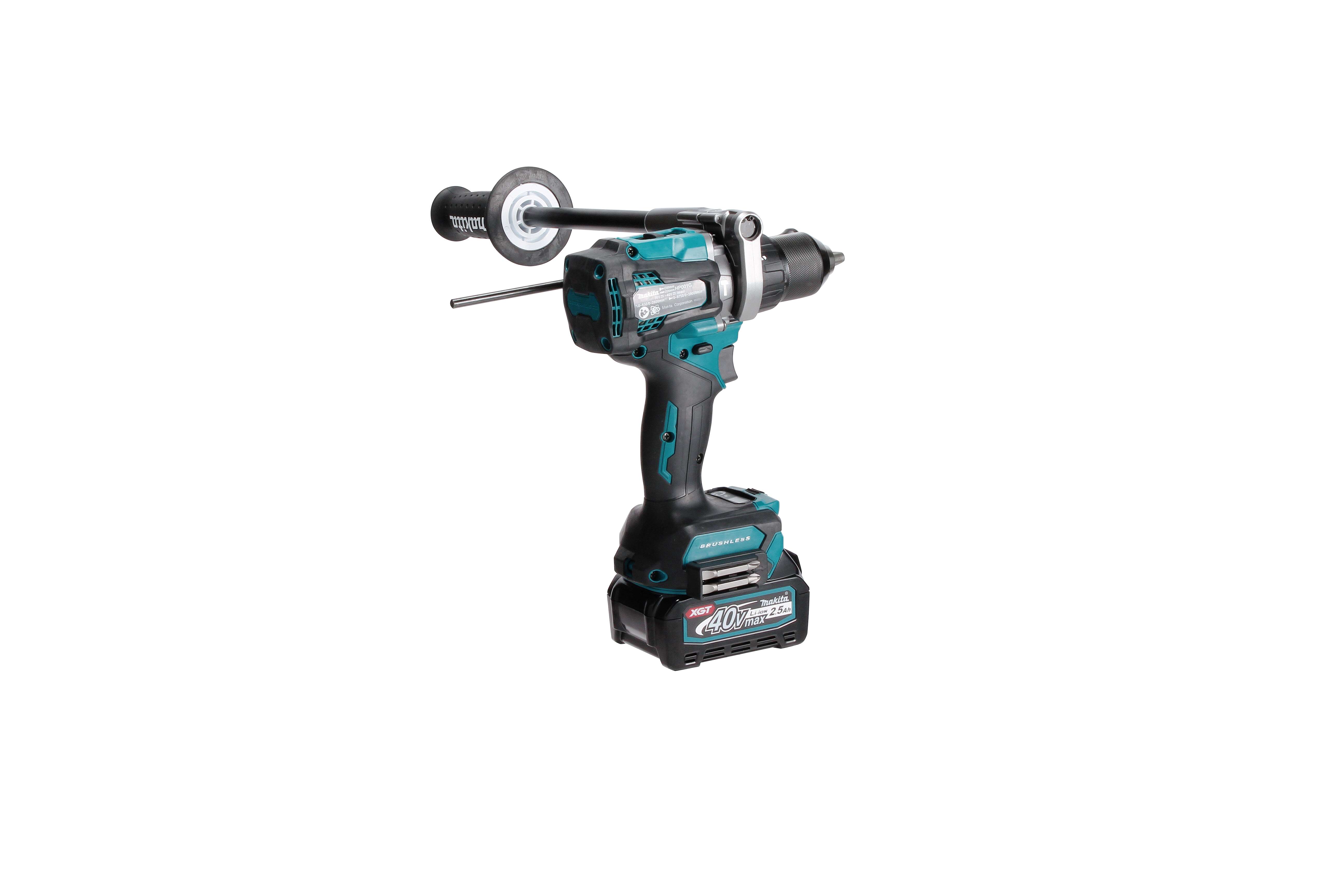

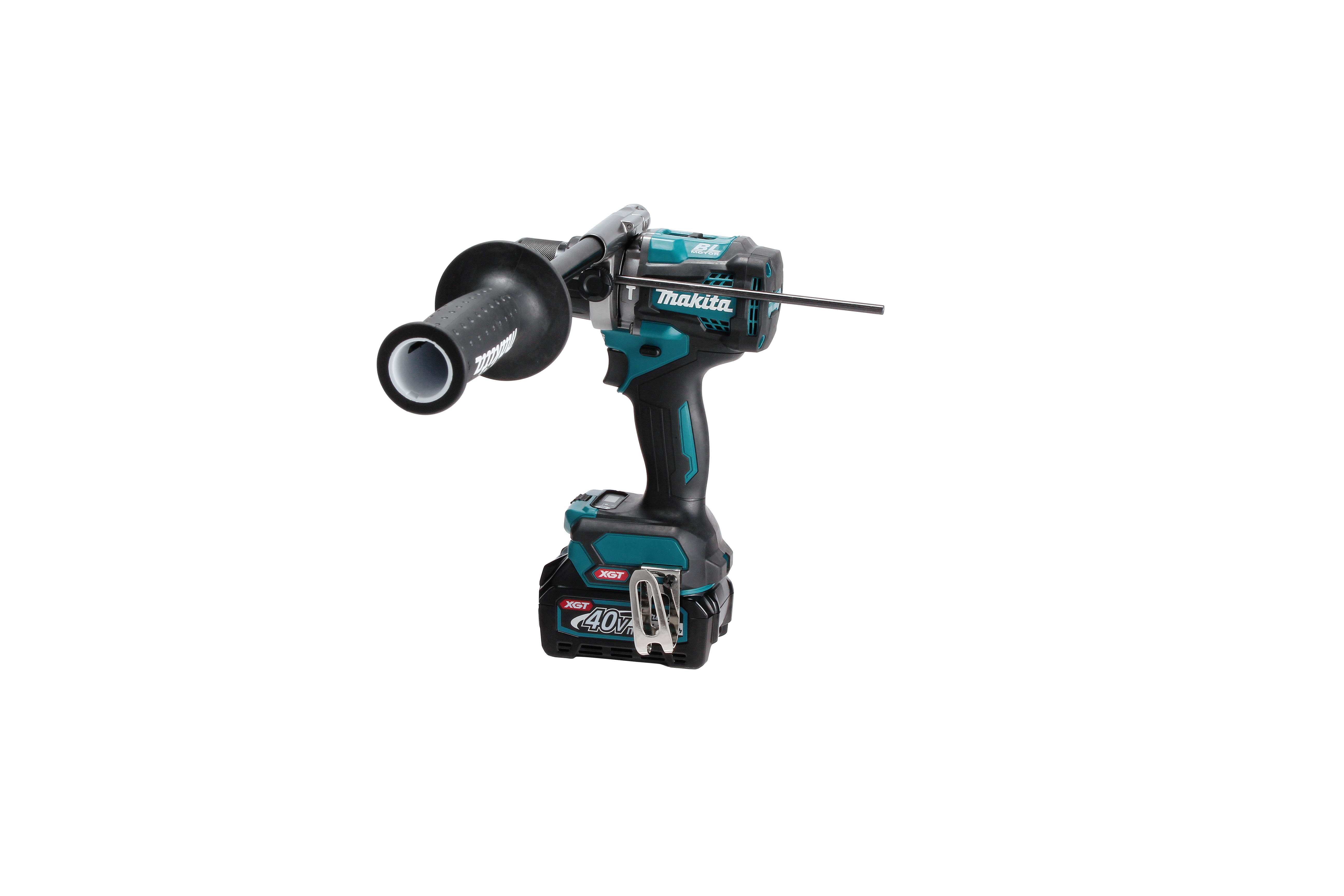

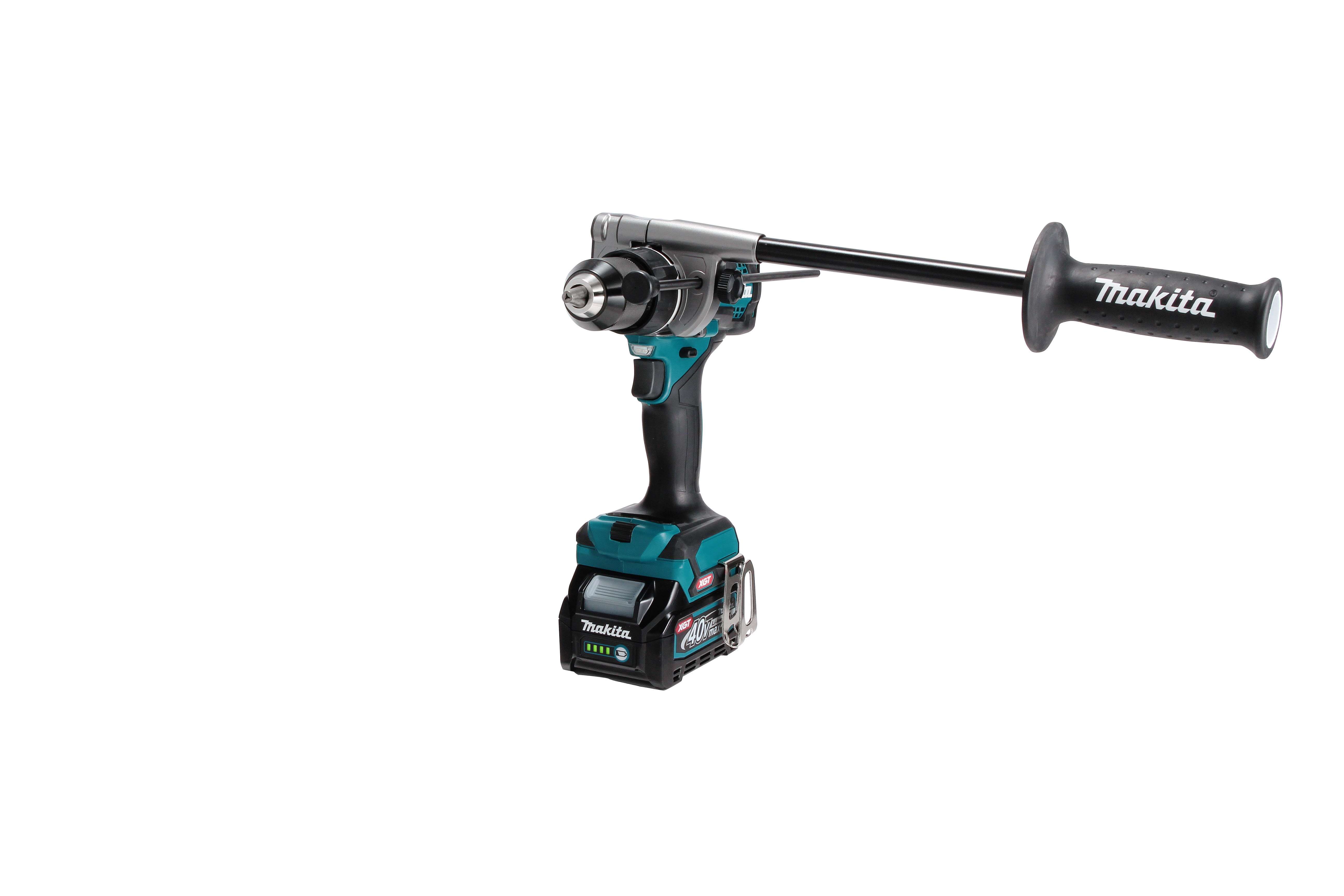

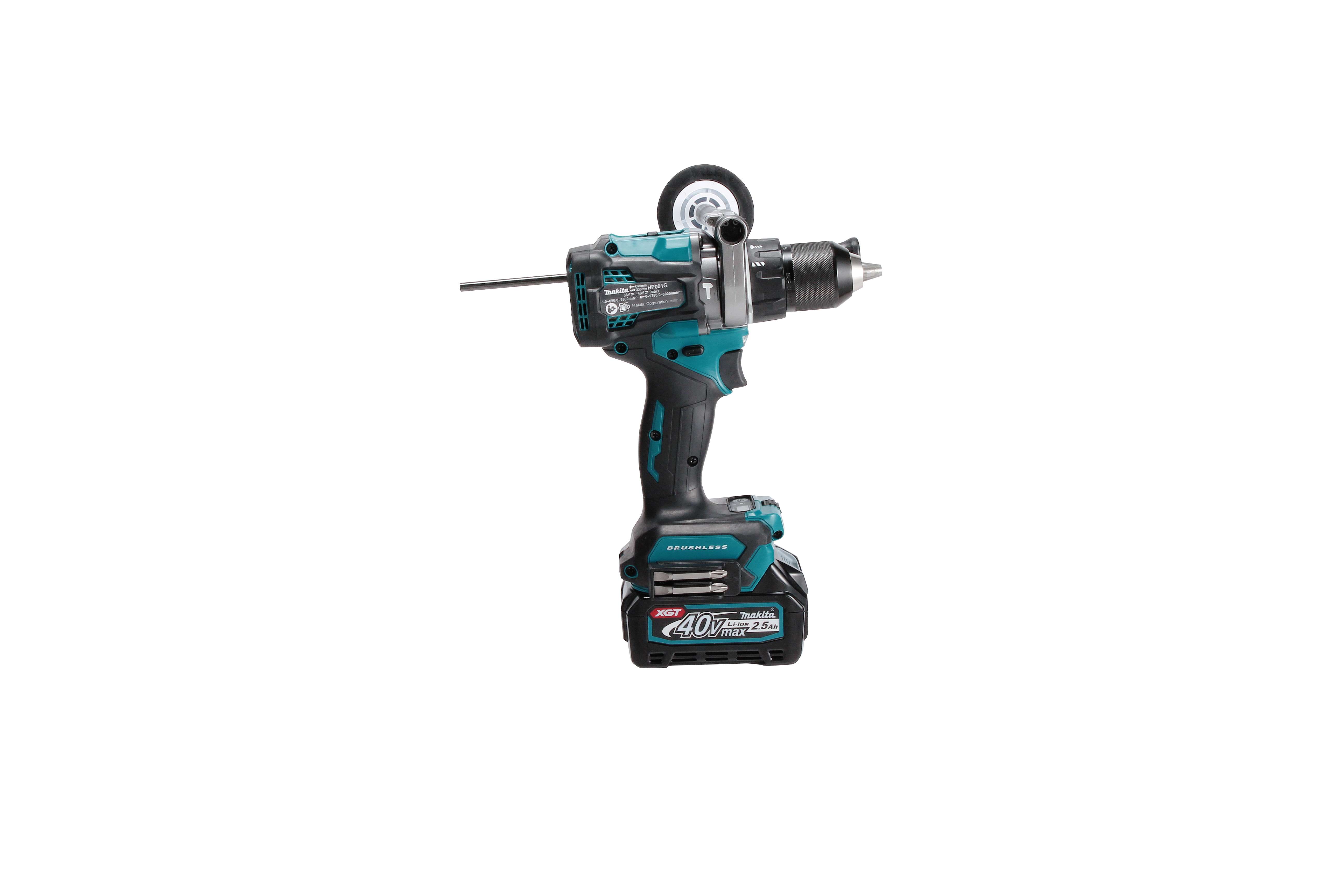

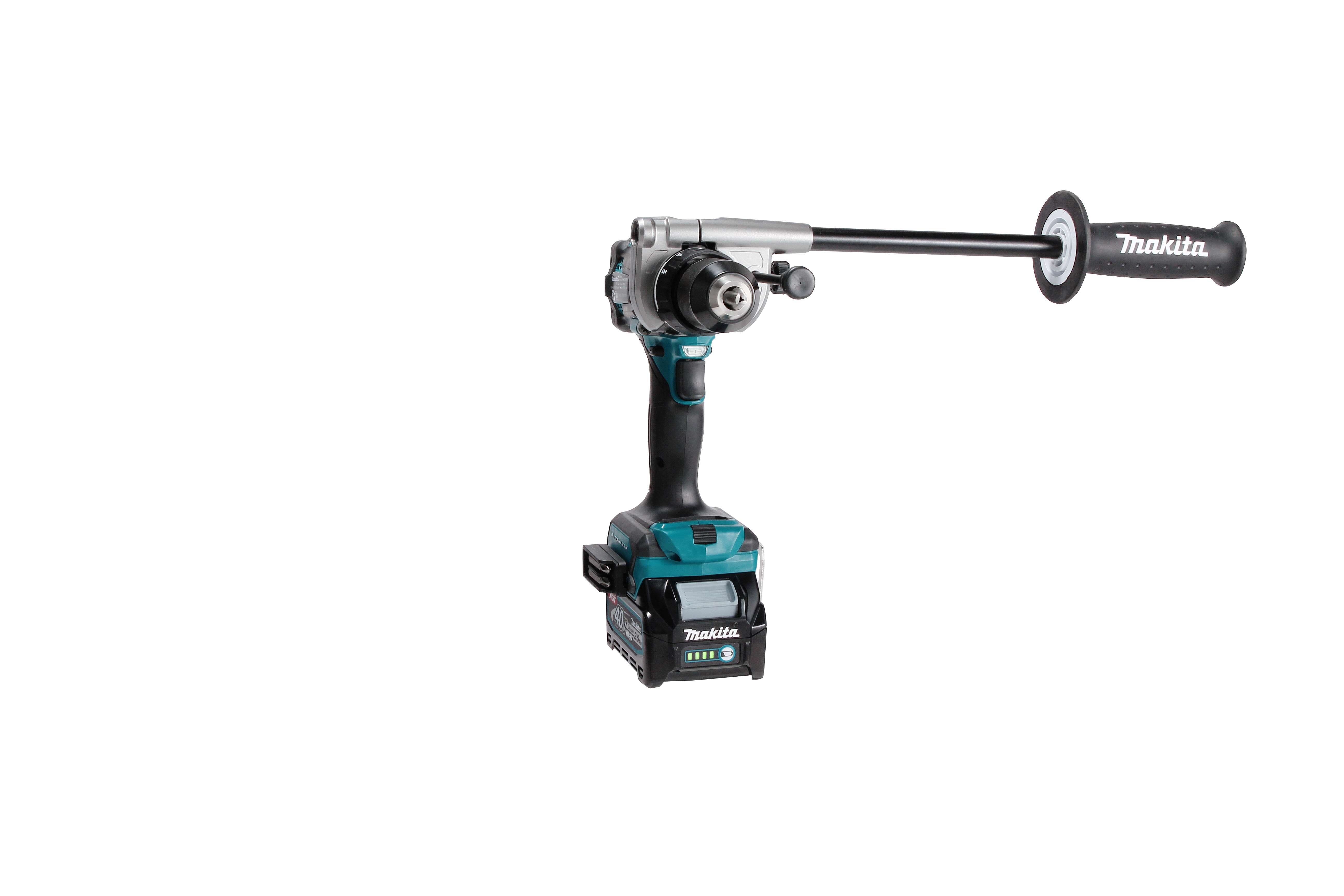

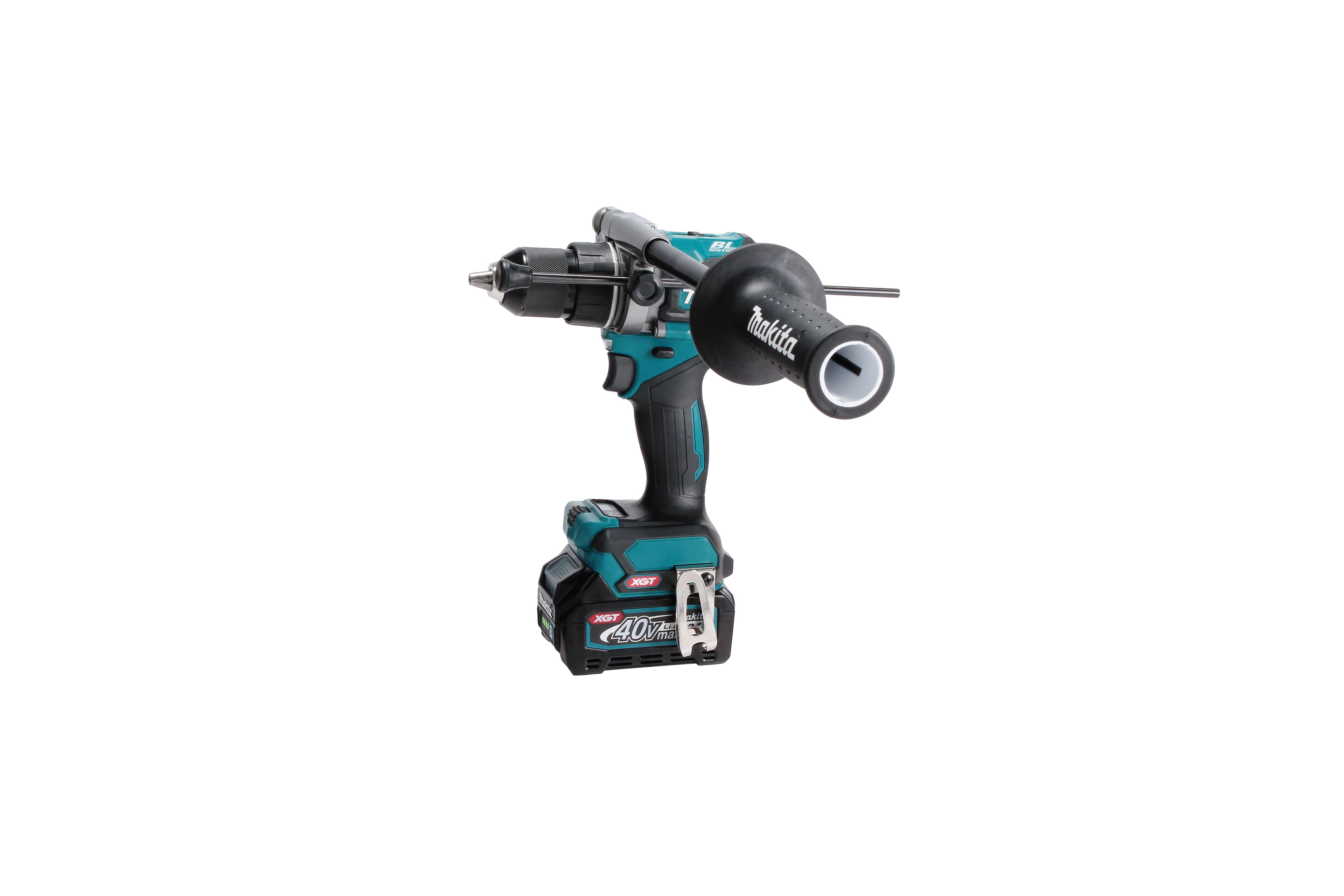

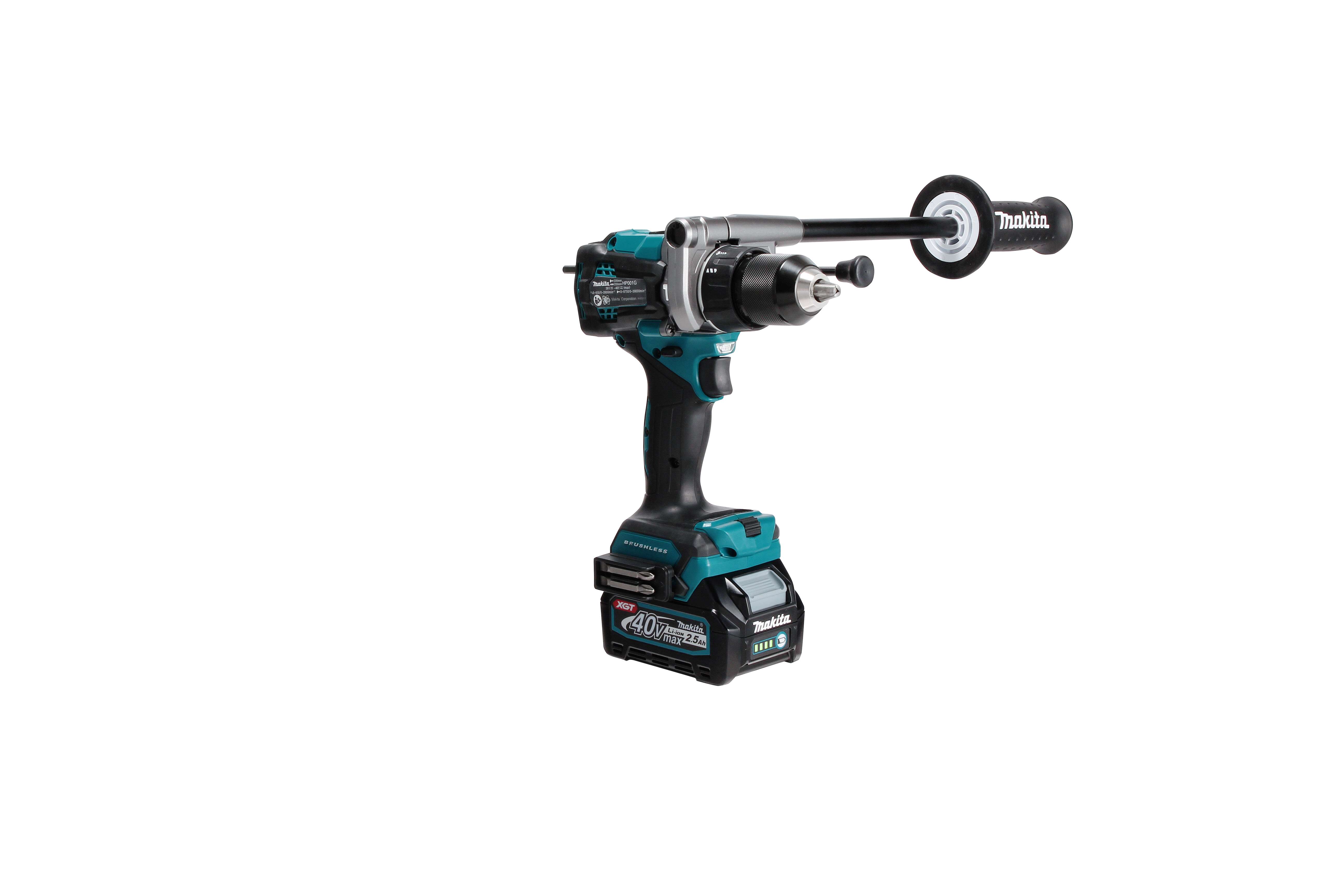

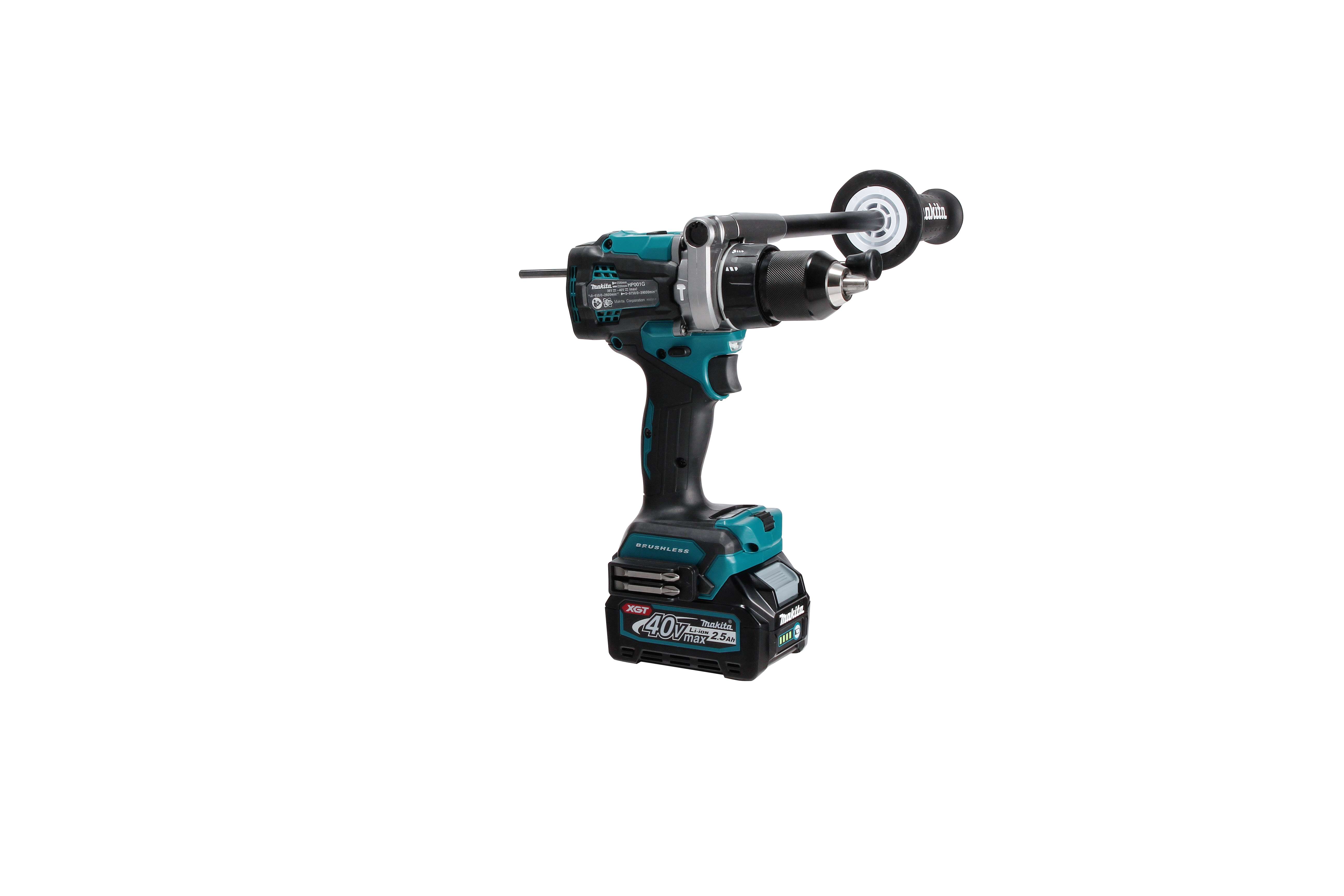

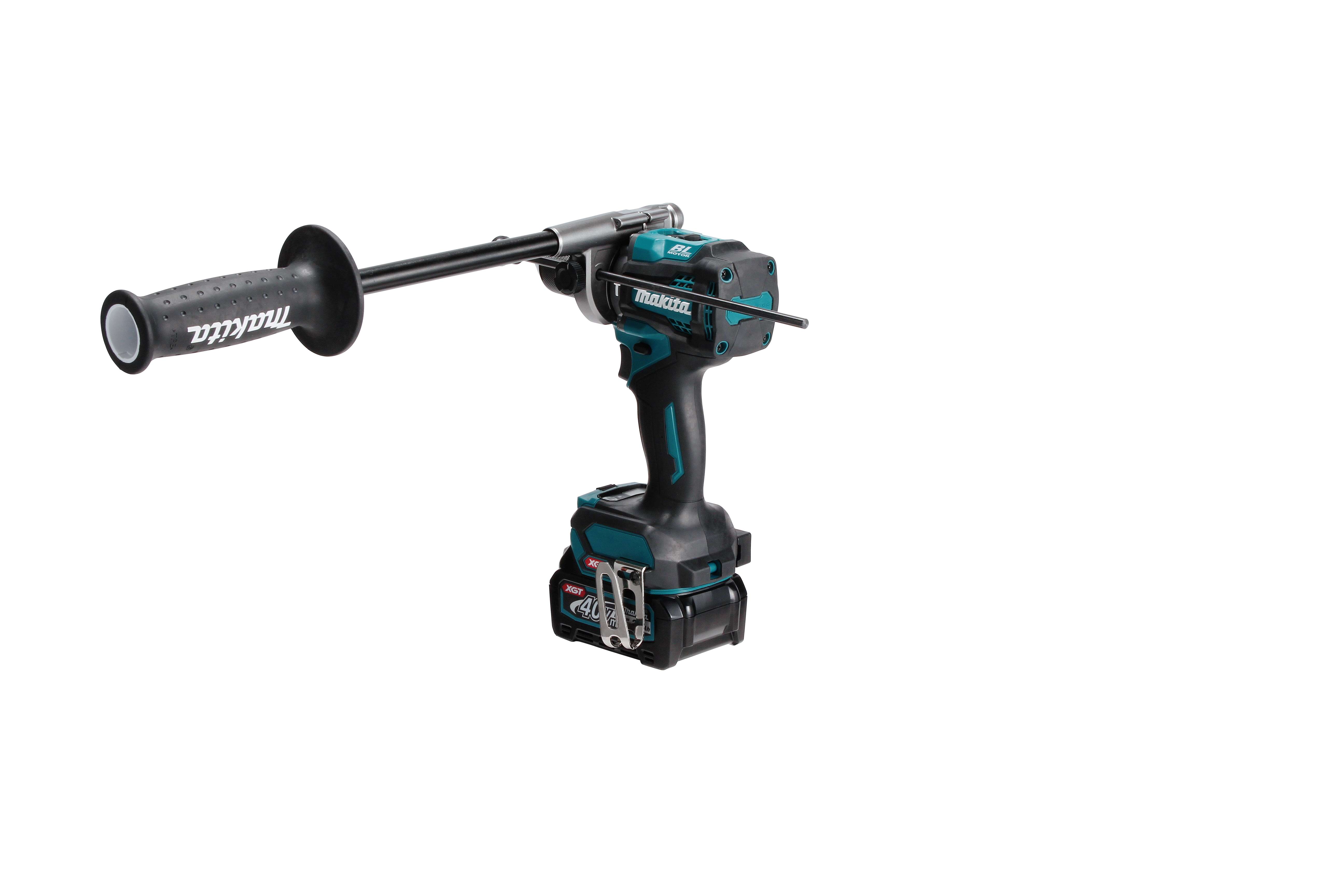

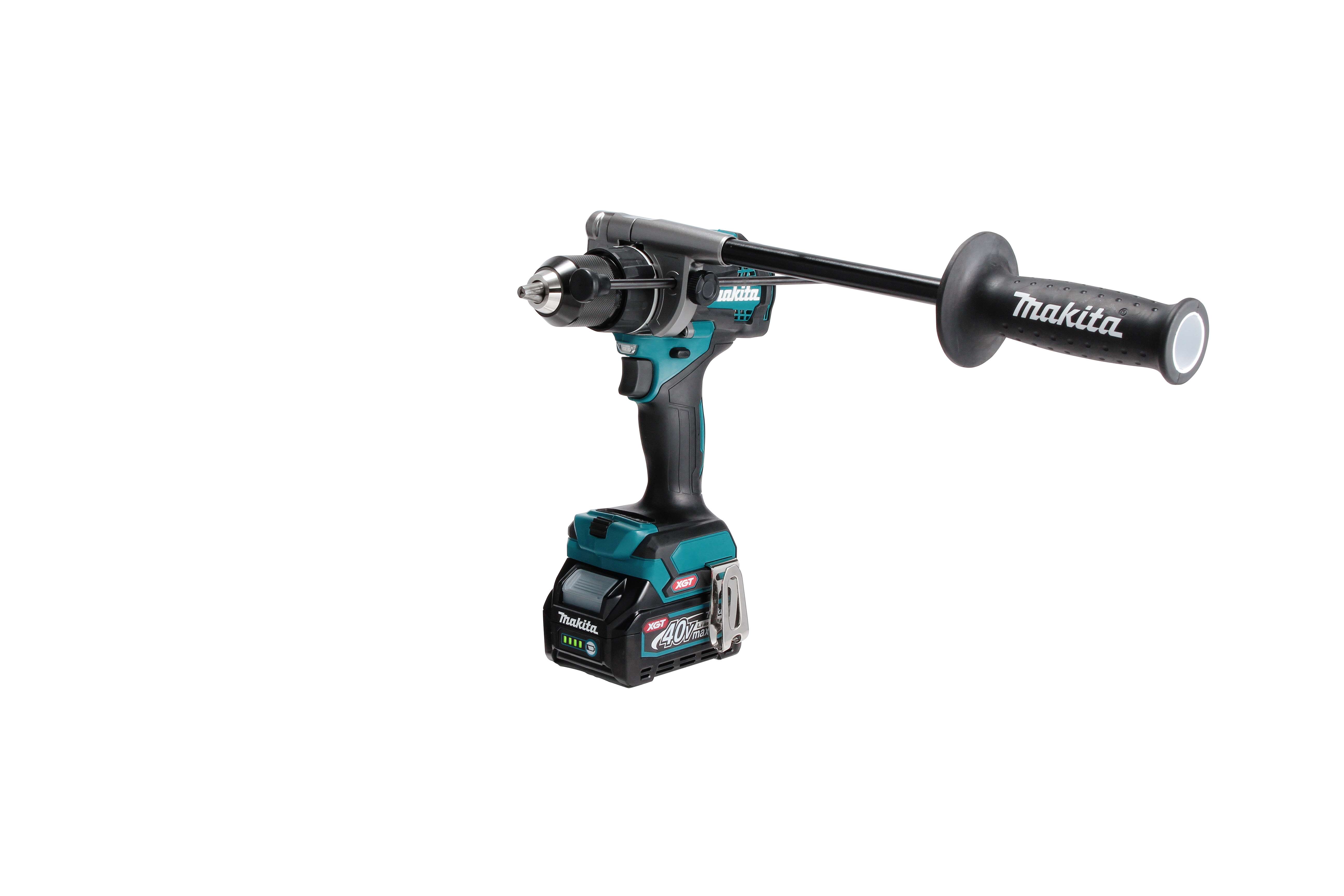

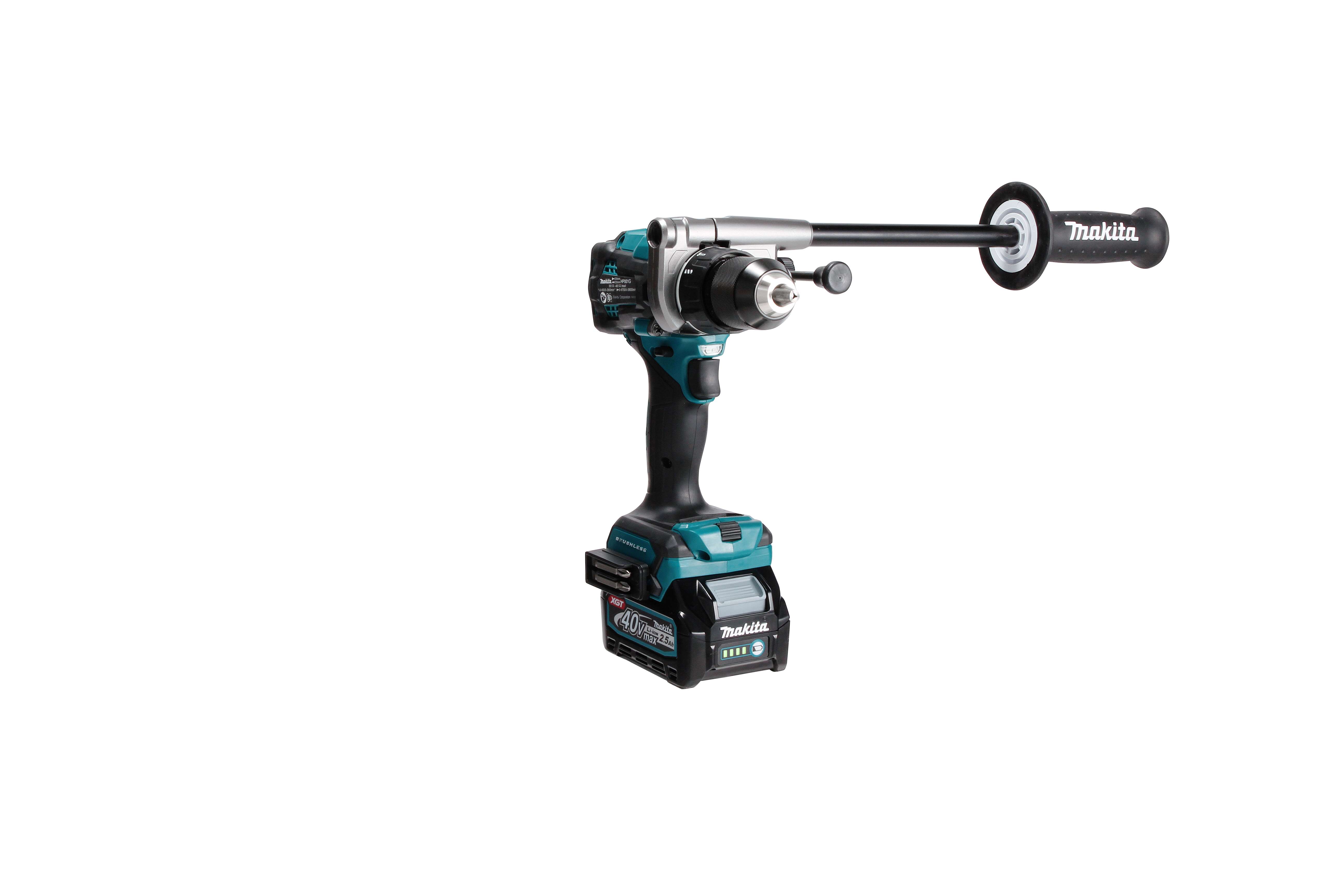

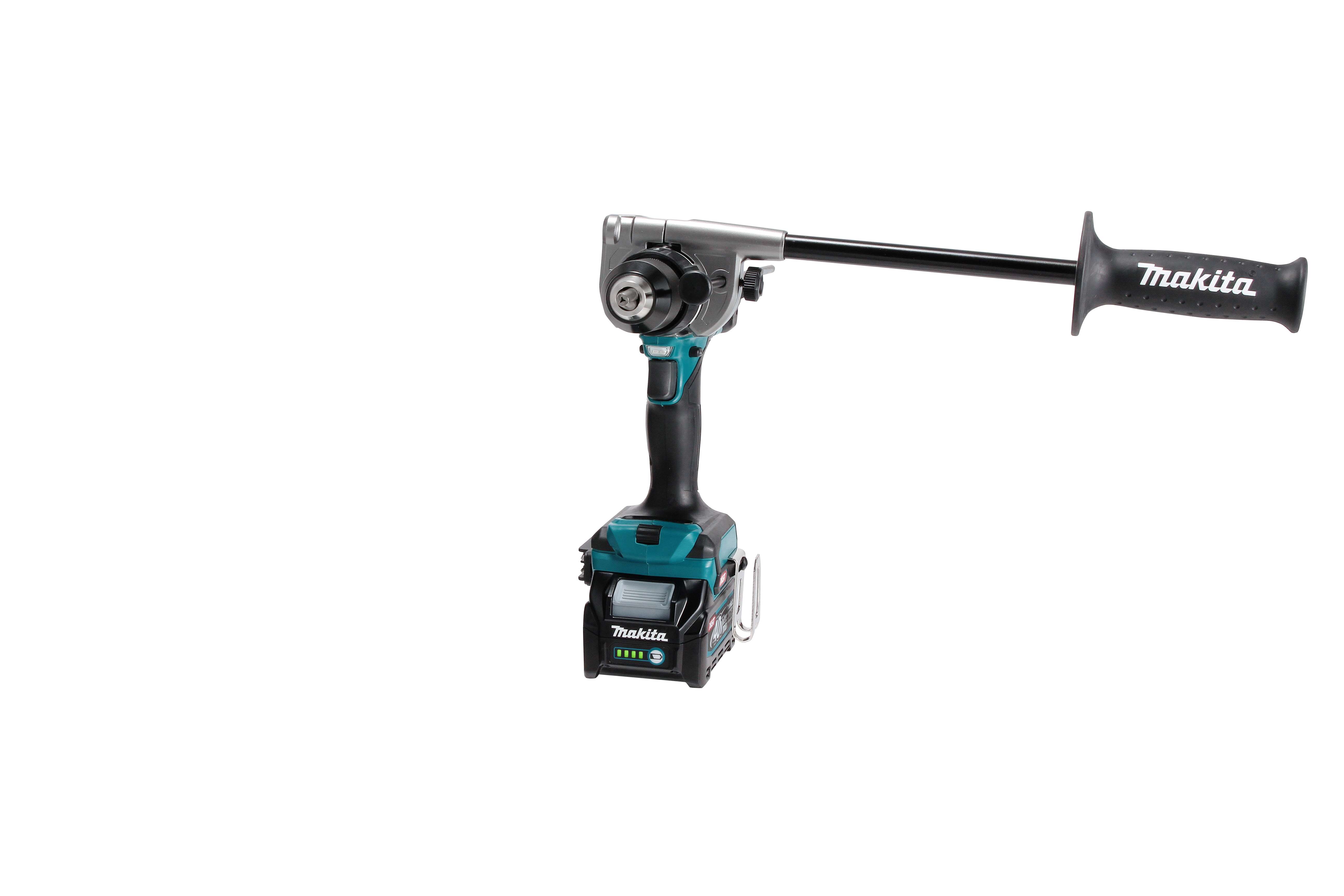

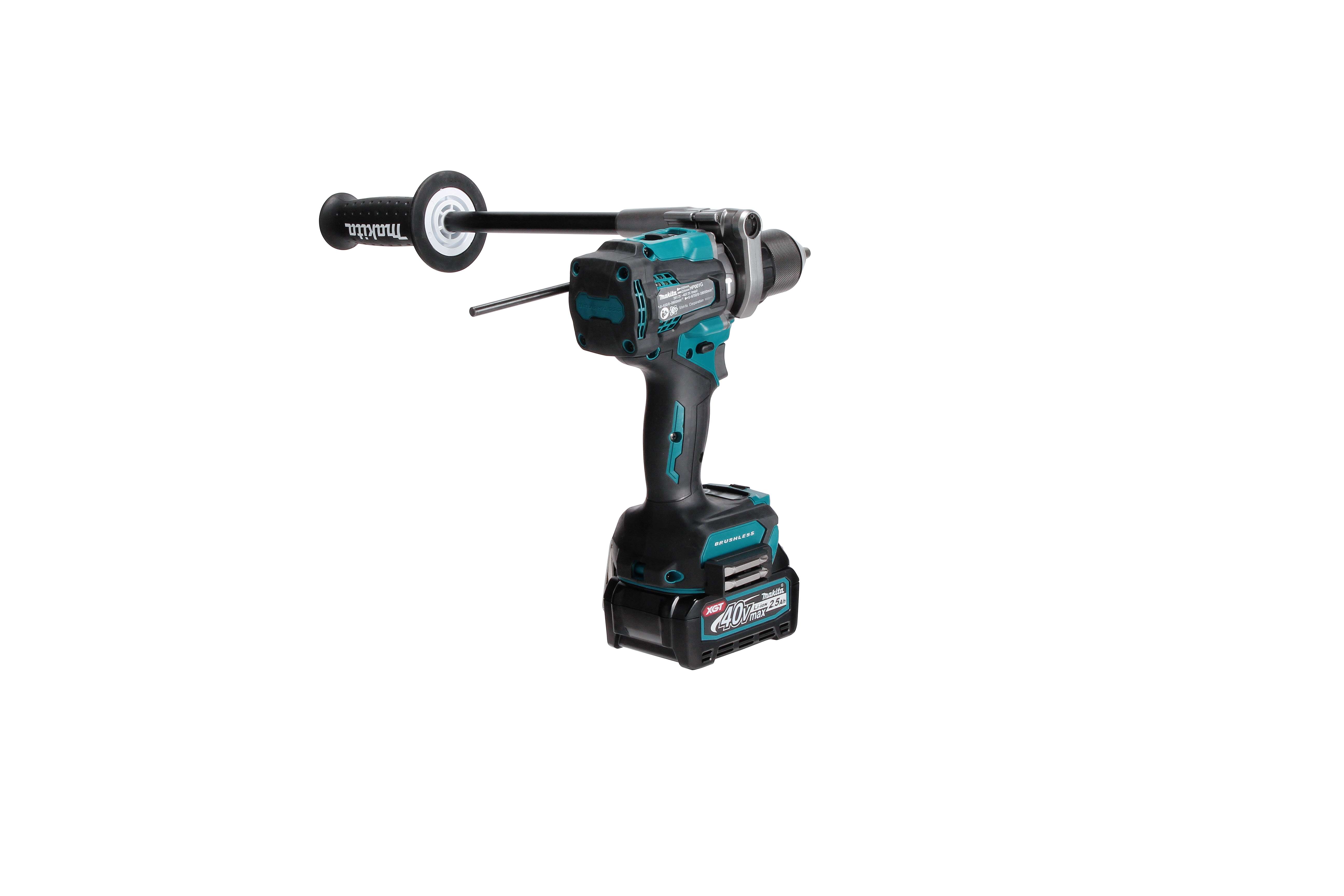

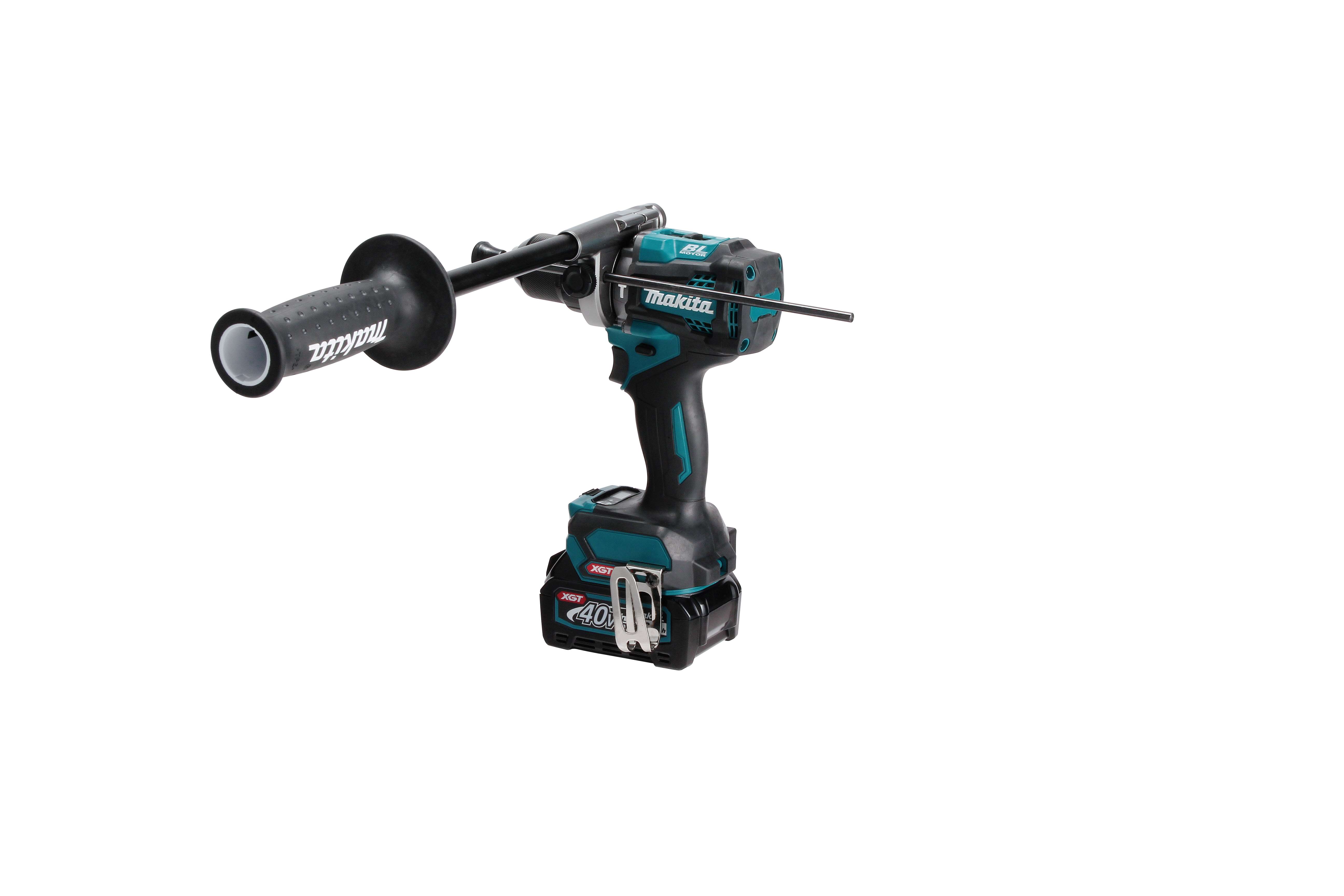

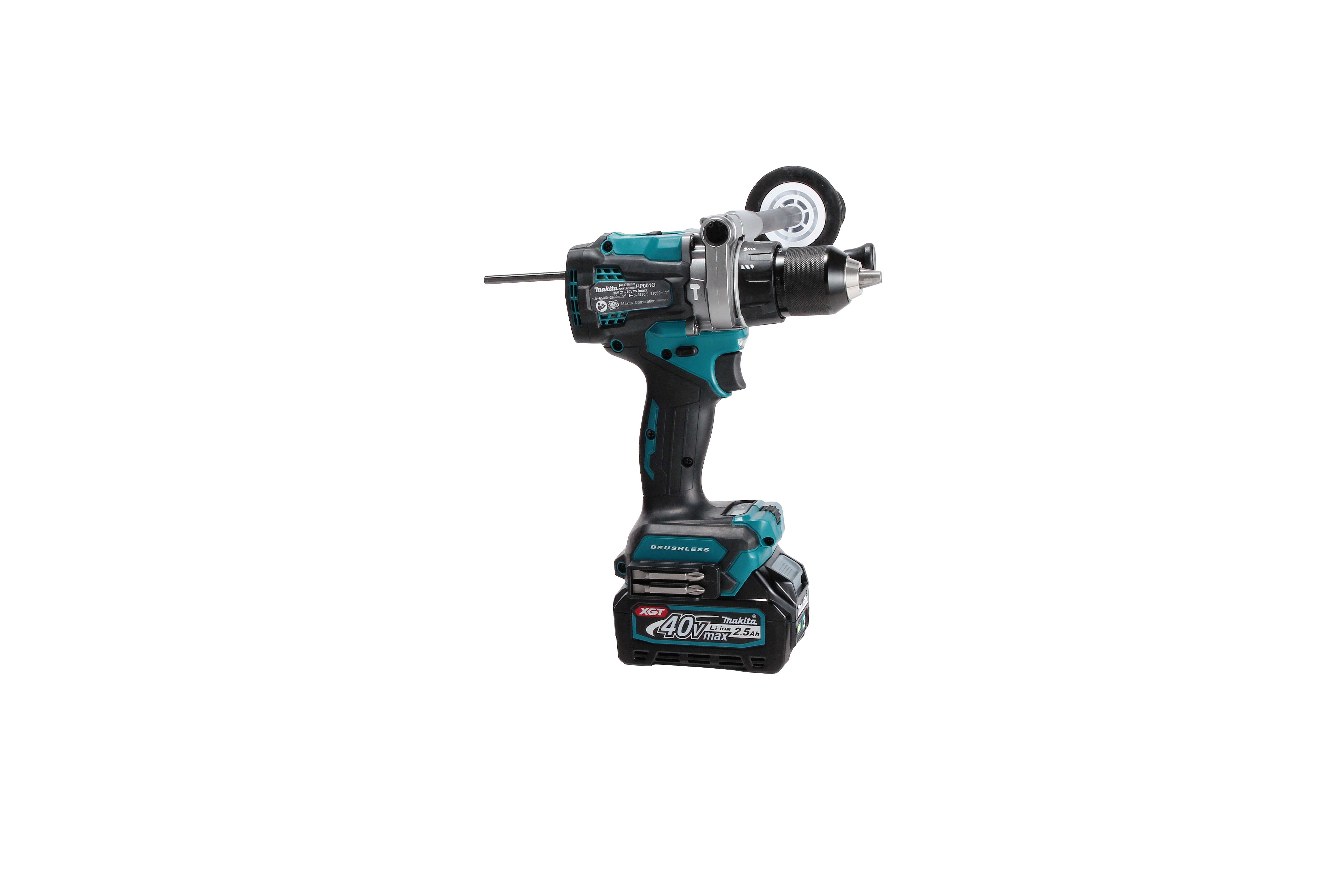

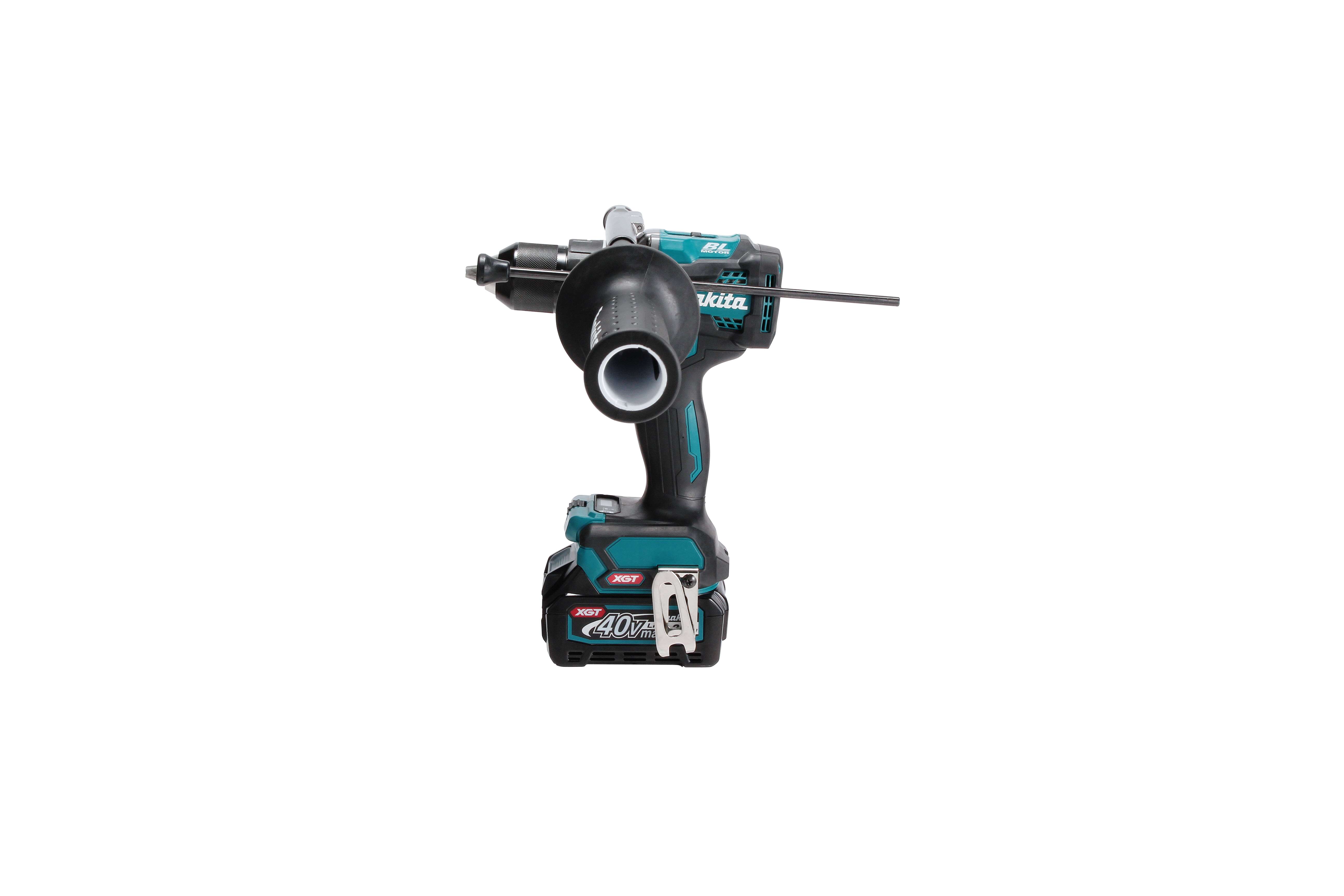

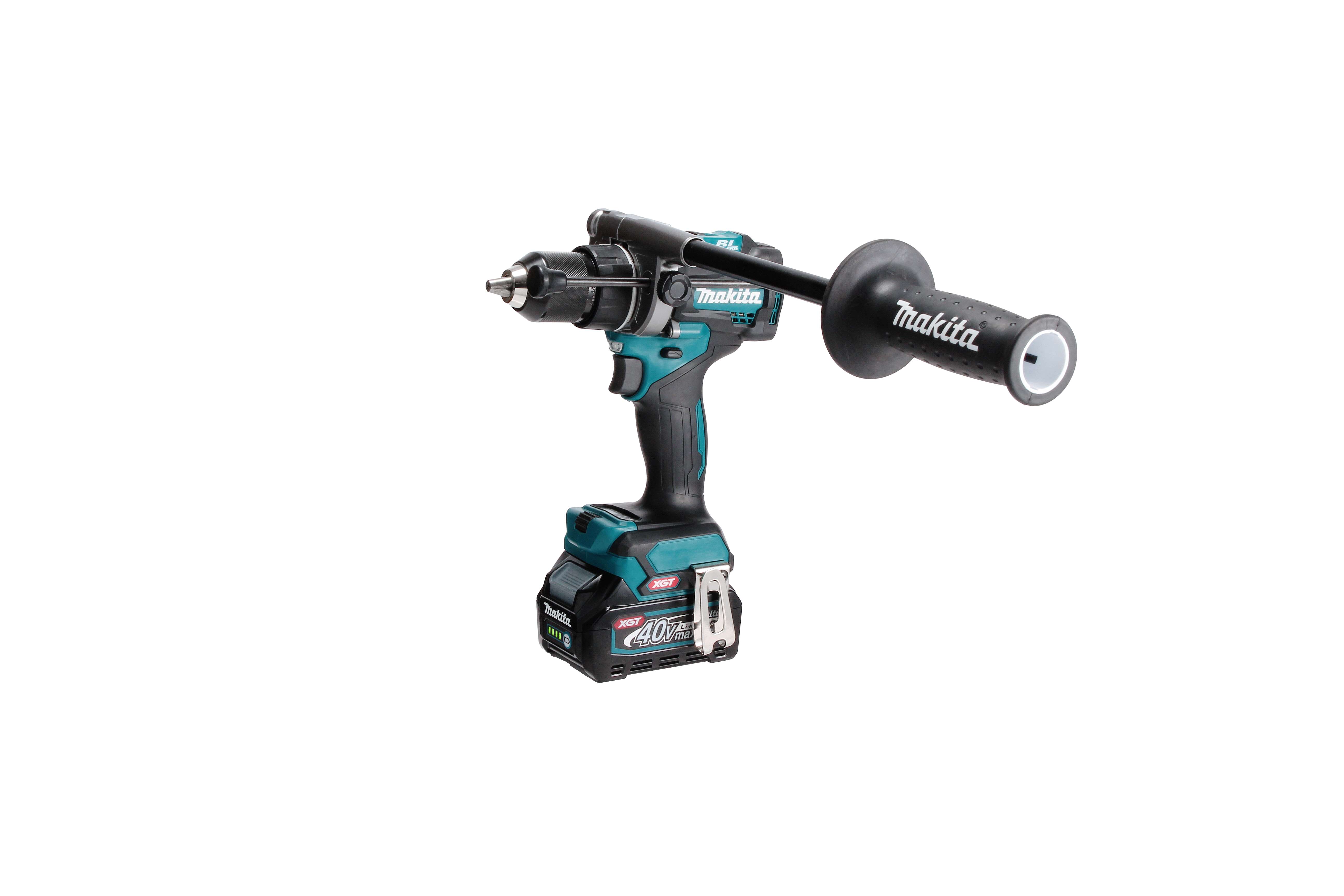

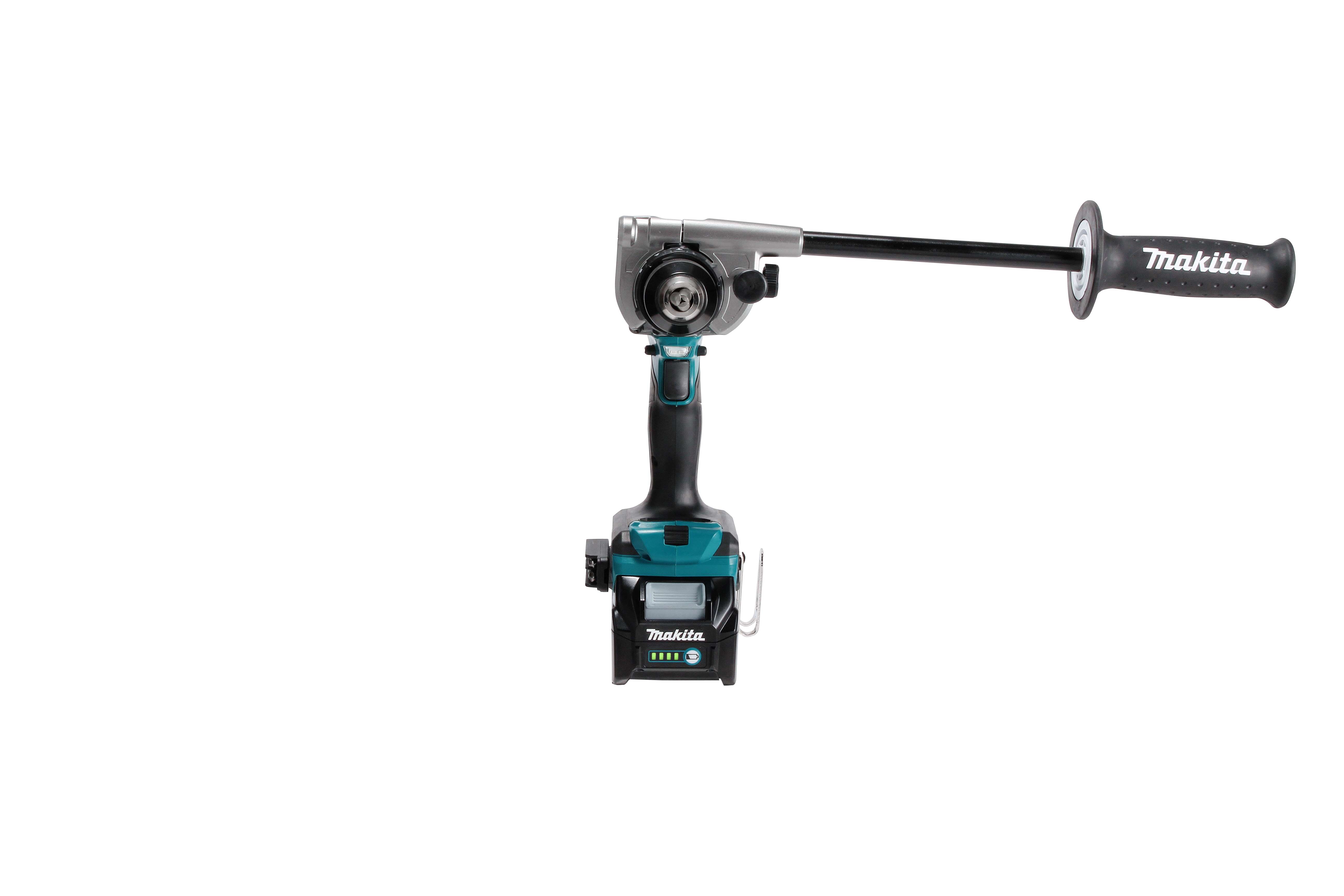

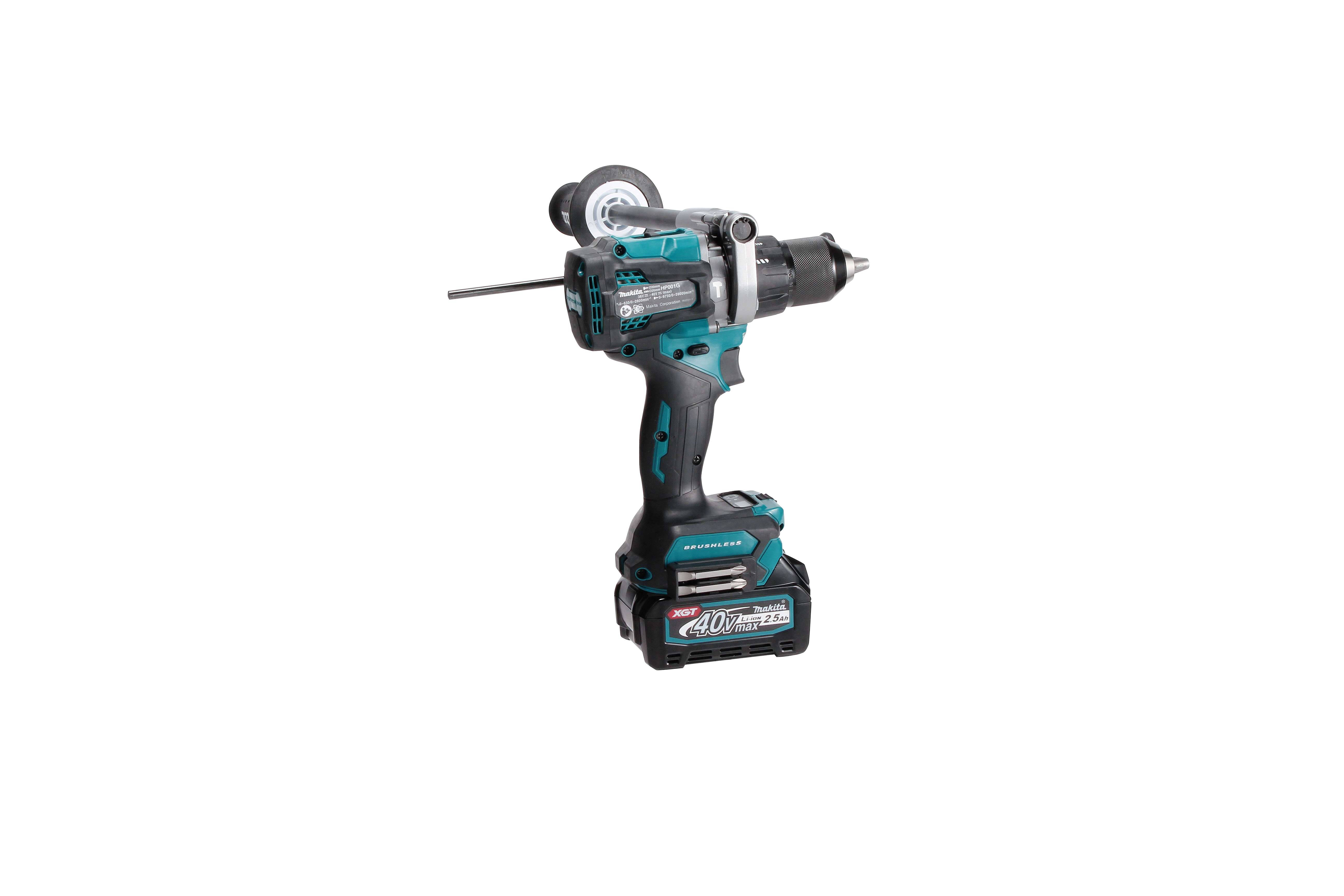

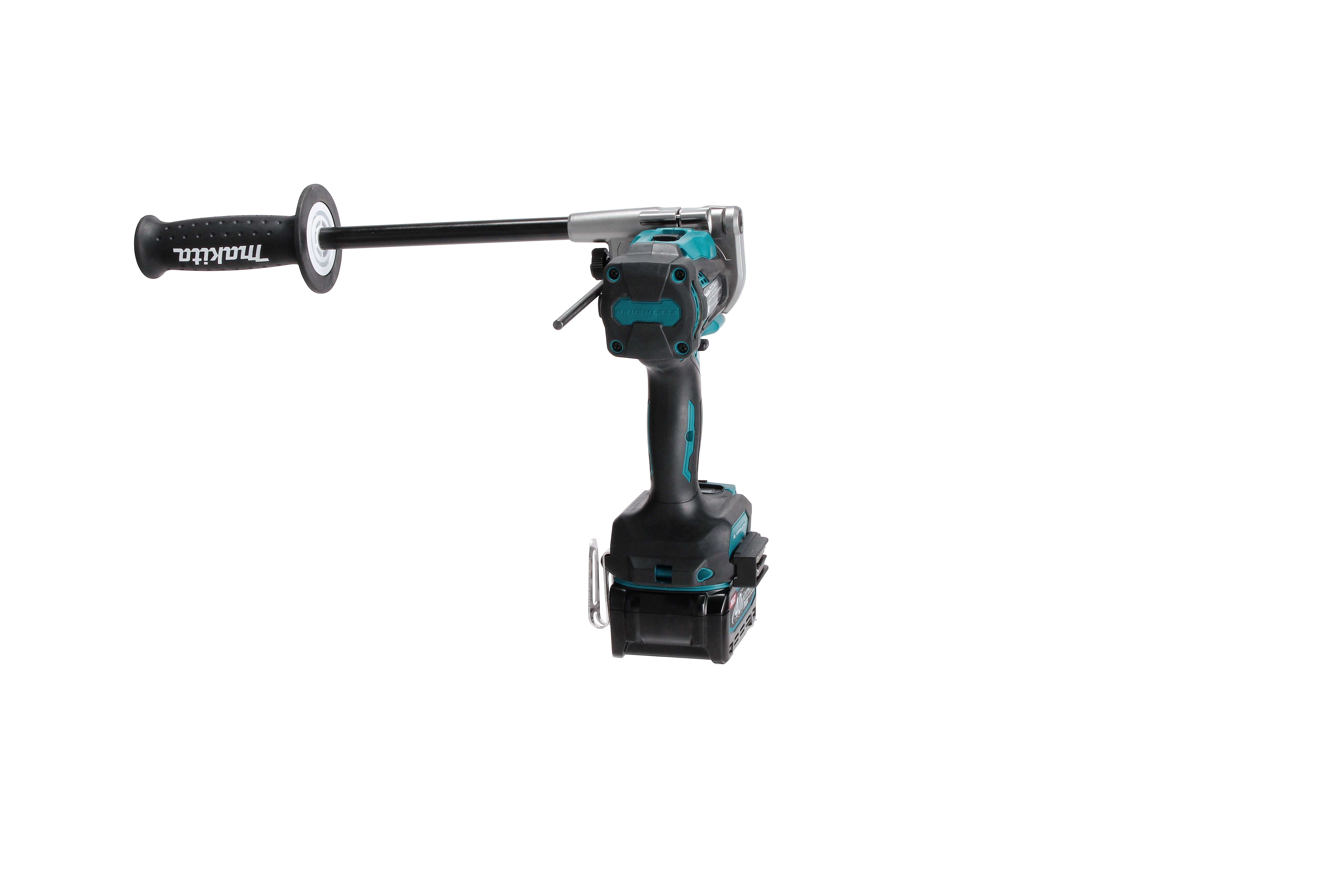

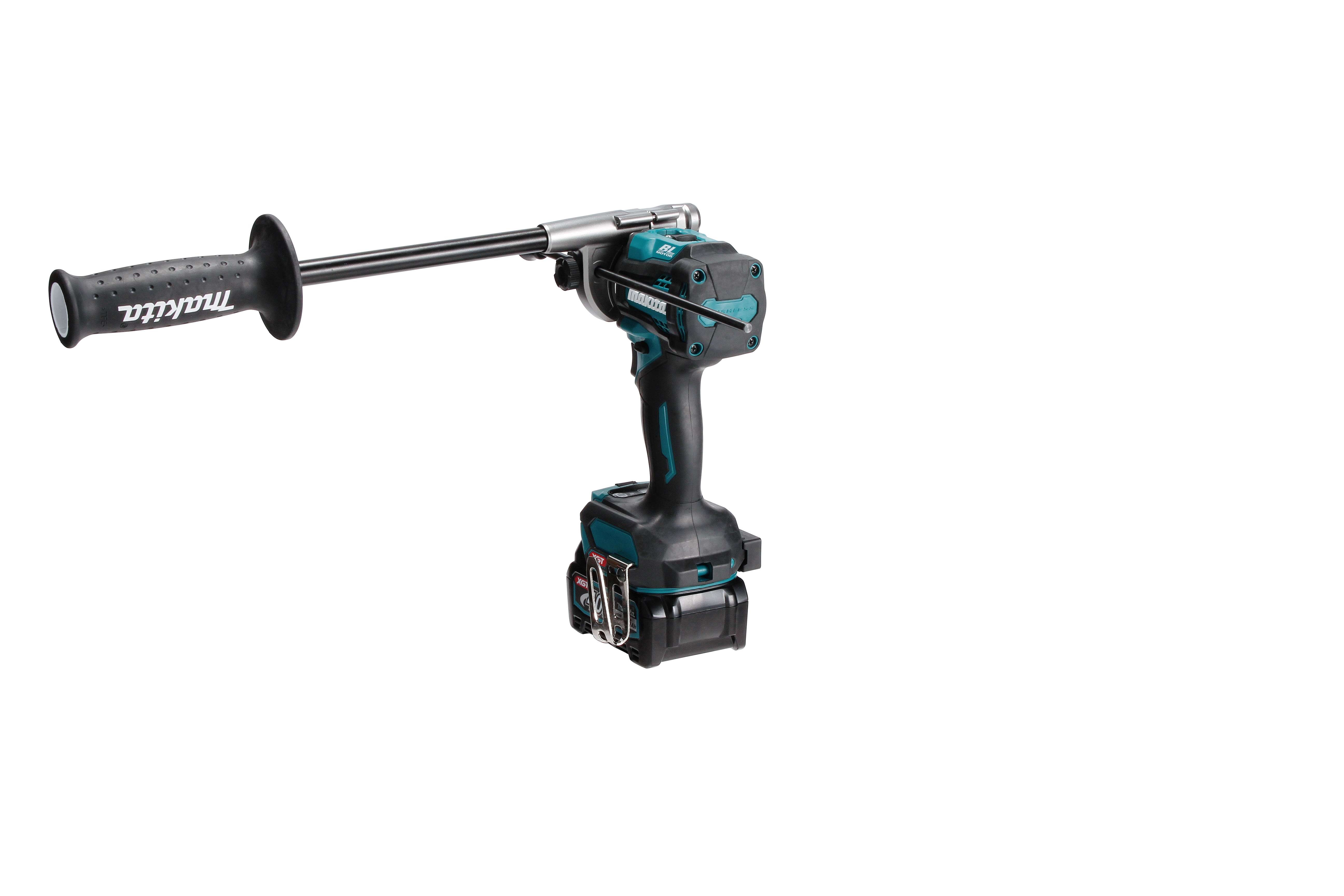

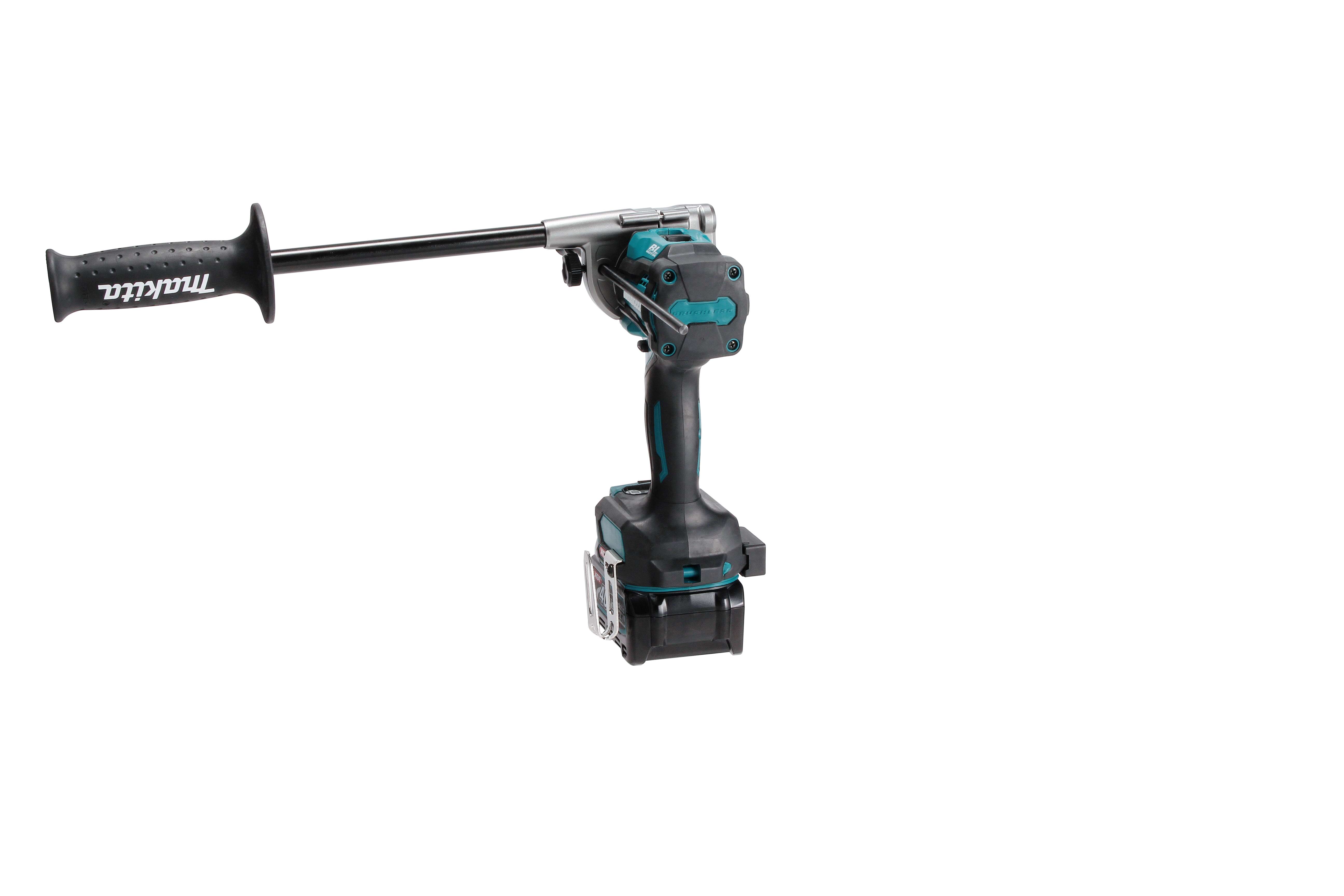

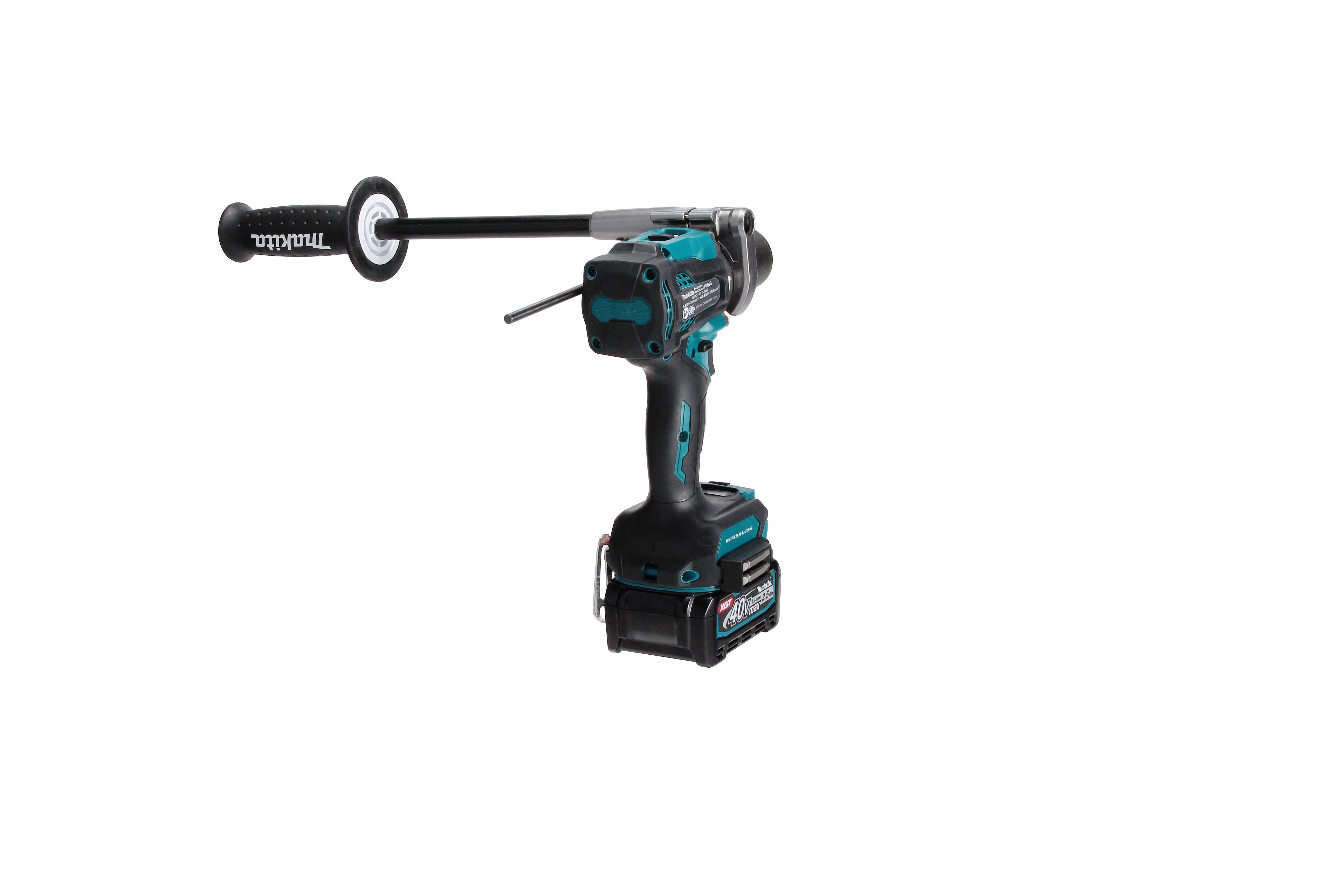

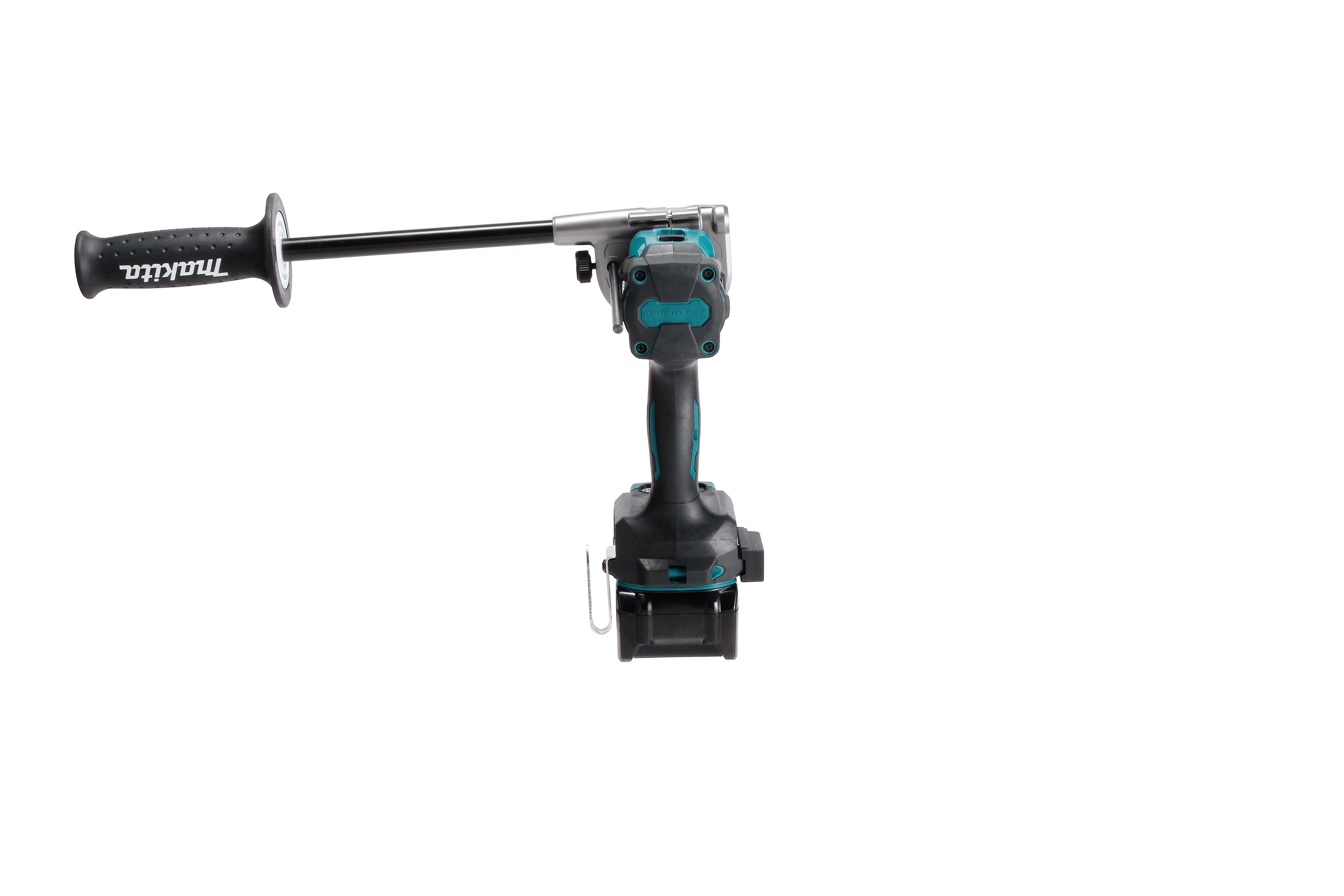

Cordless Hammer Driver Drill 40V max XGT®, BL, AFT, 13 mm, 150 Nm

HP001GZ

Cordless Hammer Driver Drill 40V max XGT®, BL, AFT, 13 mm, 150 Nm

Battery and charger are sold separately.

Rugged, brushless combi drill for heavy-duty screwdriving and drillingA powerful, brushless drill for professional screwdriving and drilling with or without hammer action, two power settings. A high maximum torque of 140 / 68 Nm. An ideal choice for jobs that require high power and torque. Integrated LED light.

Technologies and functions Advantages Specifications

Technologies and functions

Advantages

Excellent performance in continuous heavy duty applications
Outstanding drilling speed
Delivers 20% or more higher speed than previous model
Increased max speed (0-2,600 RPM) in High mode for faster drilling speed in light duty applications
Variable 2-speed transmission (0-650 & 0-2,600 RPM) for a wide range of drilling, fastening and hammer drilling applications
Compact overall length for easy handling and control
Active Feedback sensing Technology (AFT) turns the motor off if bit rotation is suddenly forced to stop
Electronical clutch (41/21 settings in Low/High mode) allows for clutch setting in the torque range which cannot be covered with mechanical clutch
Jog dial for easy adjustment of fastening torque
with digital display for visual confirmation of selected torque
Electric brake for maximum productivity and increased operator safety
LED job light with afterglow feature illuminates the work area
All metal 13 mm self-ratcheting chuck for improved bit gripping strength and durability
Keyless chuck for quick and easy bit installation and removal
Depth gauge for increased drilling consistency
High water-resistance compatible with XPT
Reversing switch is conveniently located
Durable, reversible belt clip convenient for temporary tool hanging
Battery protection circuit protects against overloading, over-discharging and over-heating

Specifications

Chuck size, mm 13

Type of drill chuck Keyless Chuck

Number of speeds 2

No load speed low, rpm 650

No load speed high, rpm 2600

Blows per minute low, bpm 9750

Blows per minute high, bpm 39000

Maximum torque, Nm 150

Type of motor BLmotor

Platform 40V max XGT®

Type of battery Li-Ion

Voltage, V 36

Charger

Compatible batteries 40V max: 8.0 Ah / 5.0 Ah / 4.0 Ah / 2.5 Ah / 2.0 Ah

Chuck torque setting 21/41

Variable speed

Brake

Reversing

Constant speed

Clutch-equipped

Built-in job light

Toolless change

Extreme protection technology

Active feedback-sensing technology

Capacity masonry, mm 20

Capacity steel, mm 20

Capacity wood, mm 50

Capacity hole saw, mm 152

Capacity Forstner drill bit, mm 50

Capacity atjustable circle, mm 200

Min chuck capacity, mm 13

Max chuck capacity, mm 13

Net Weight, kg 2.7

Vibration level drilling into concrete, m/s2 10

Вибрационный K фактор при сверлении в бетоне, м/с2 1.5

Vibration level drilling into metal, m/s2 2.5

Sound pressure level, dB 85

Depth, mm 182

Width, mm 86

Height, mm 275

Code EAN 0088381892193

Packaged Width, mm 200

Packaged Depth, mm 130

Packaged Height, mm 420

Weight (package), kg 3

HS code 8467292000
