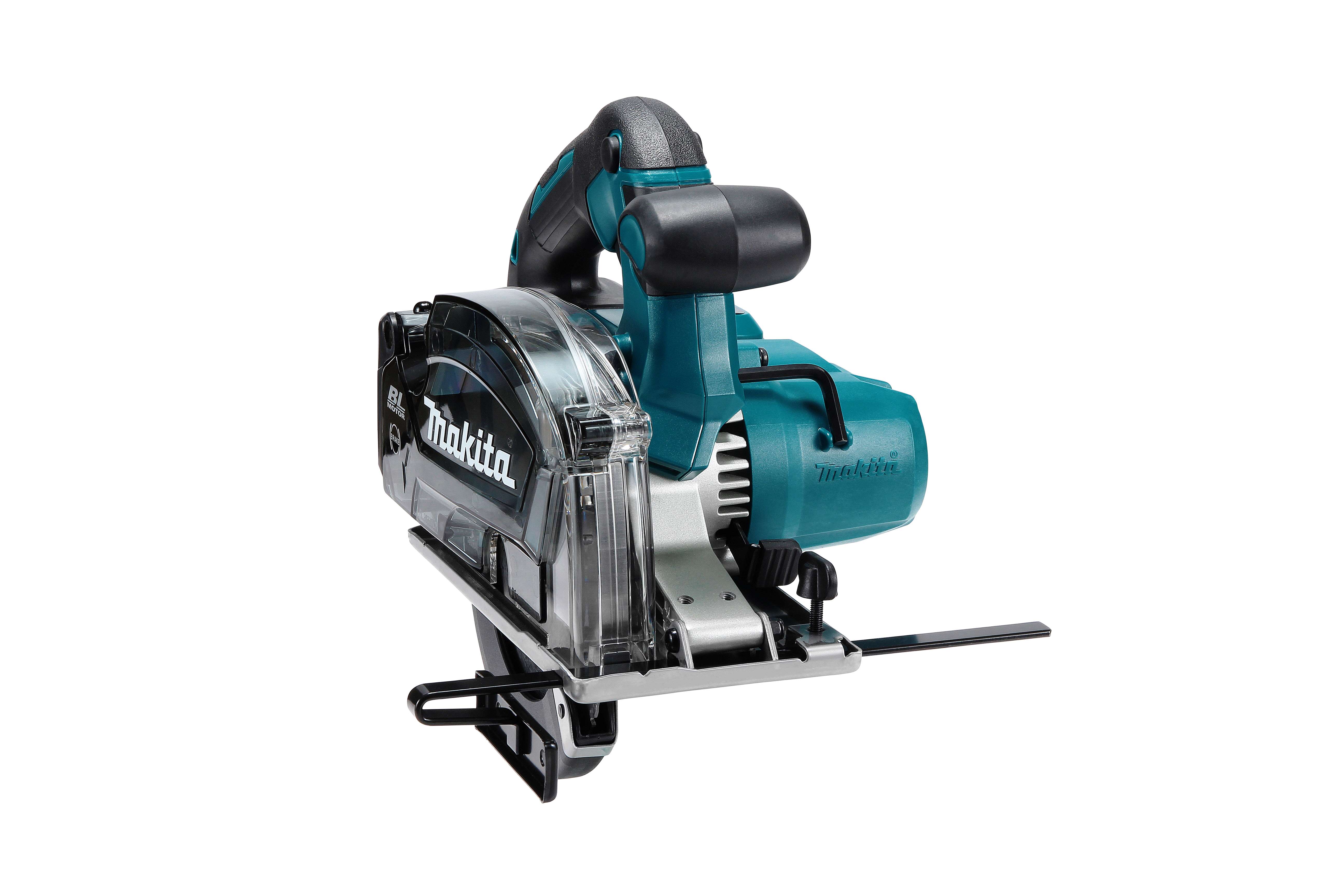

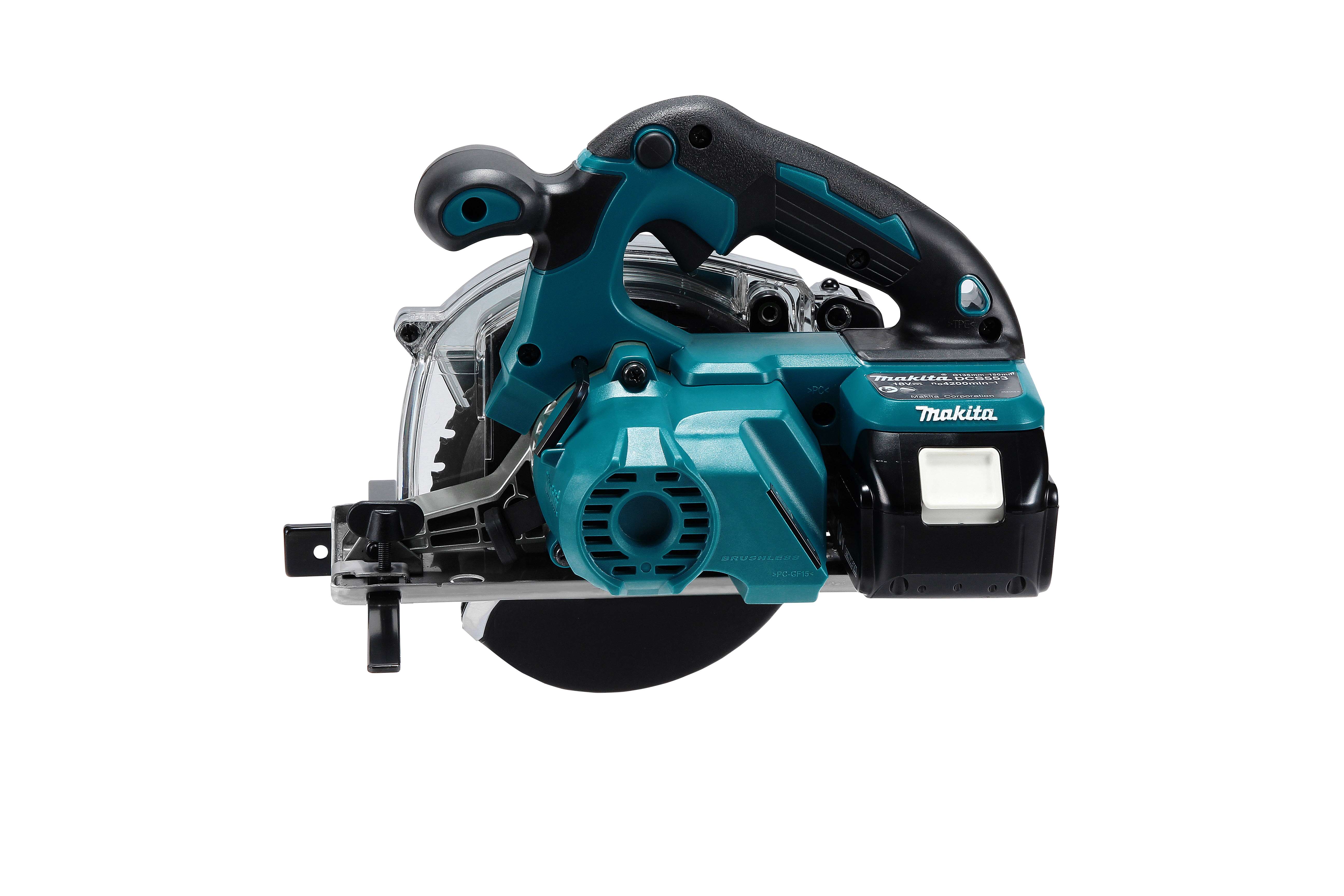

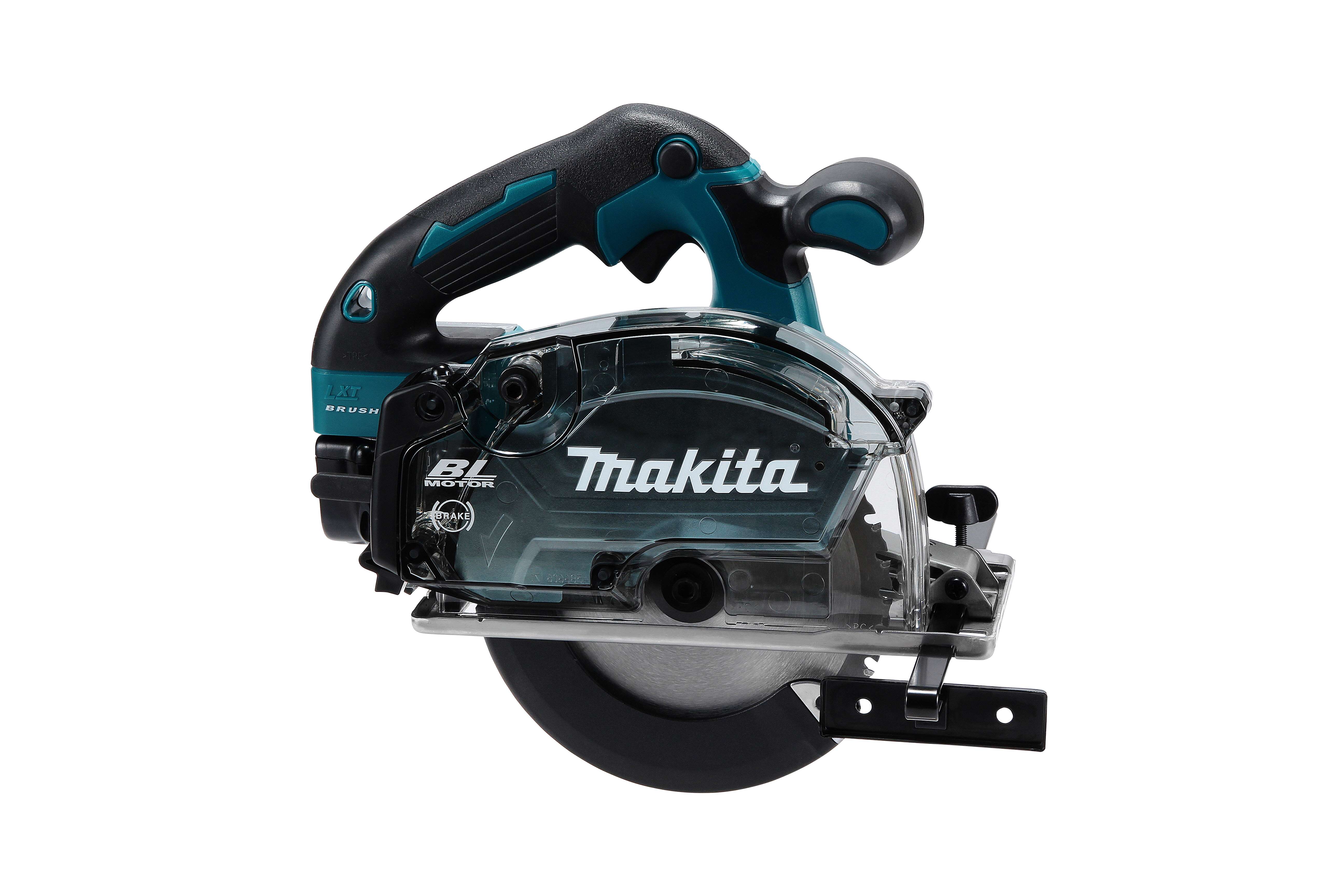

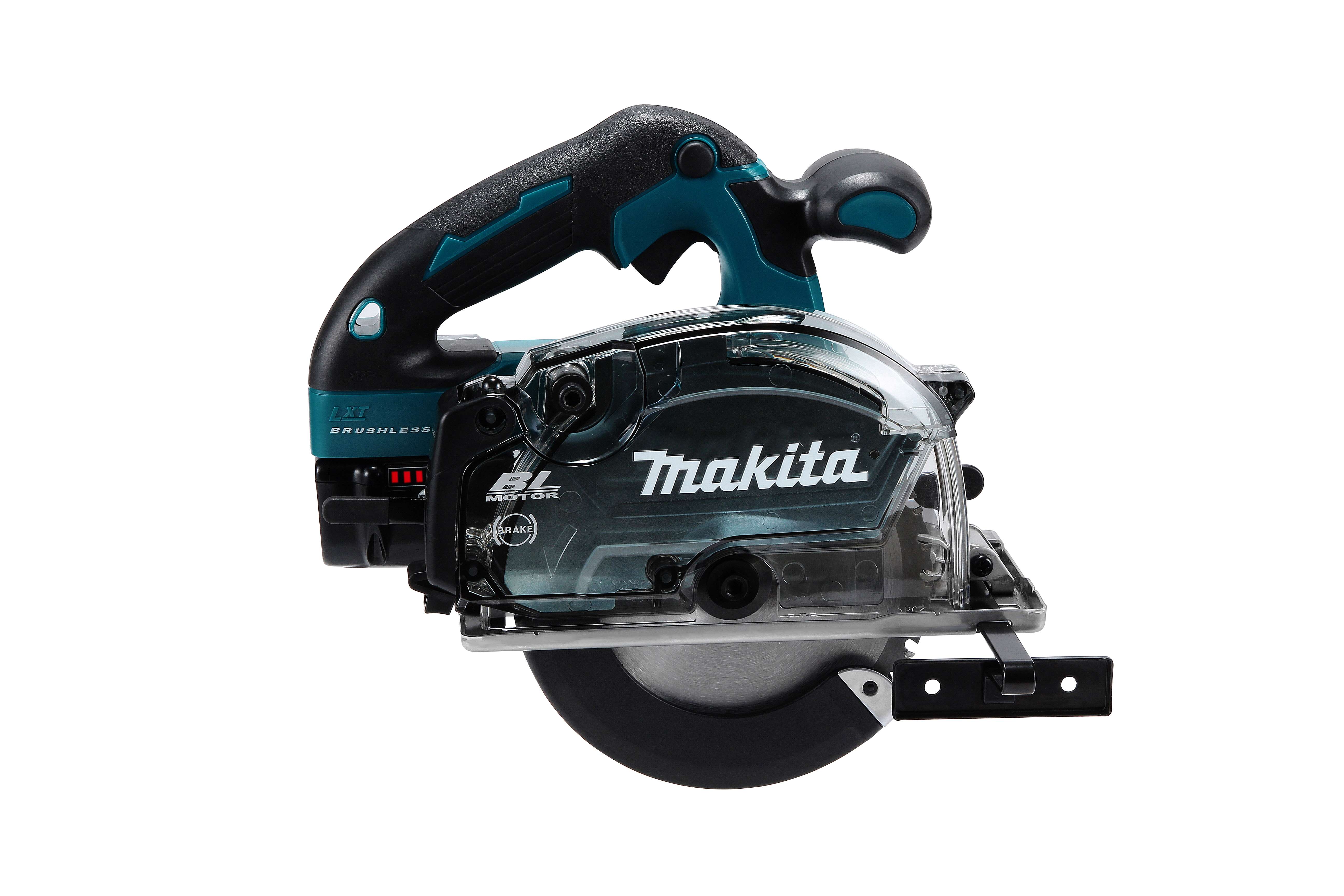

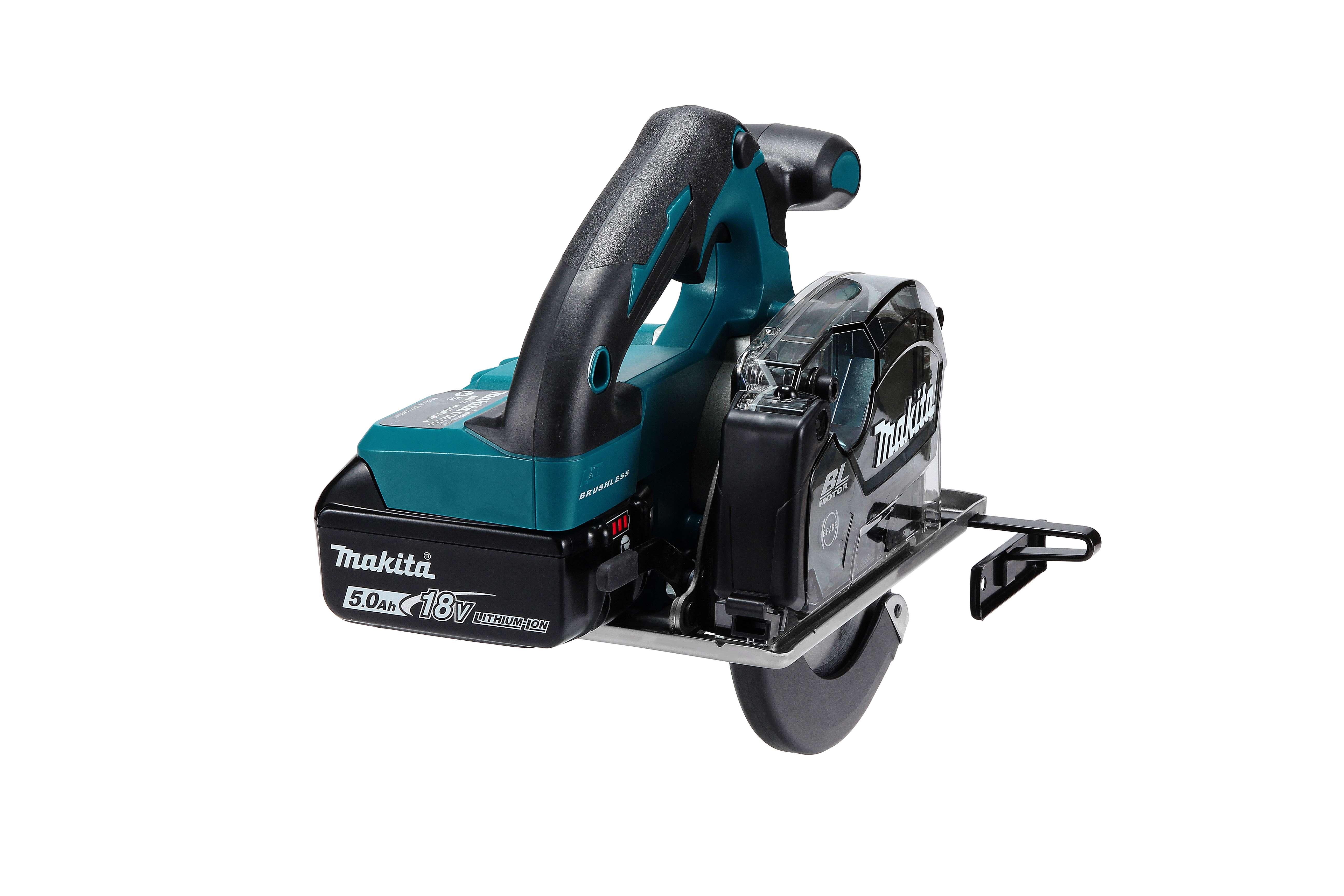

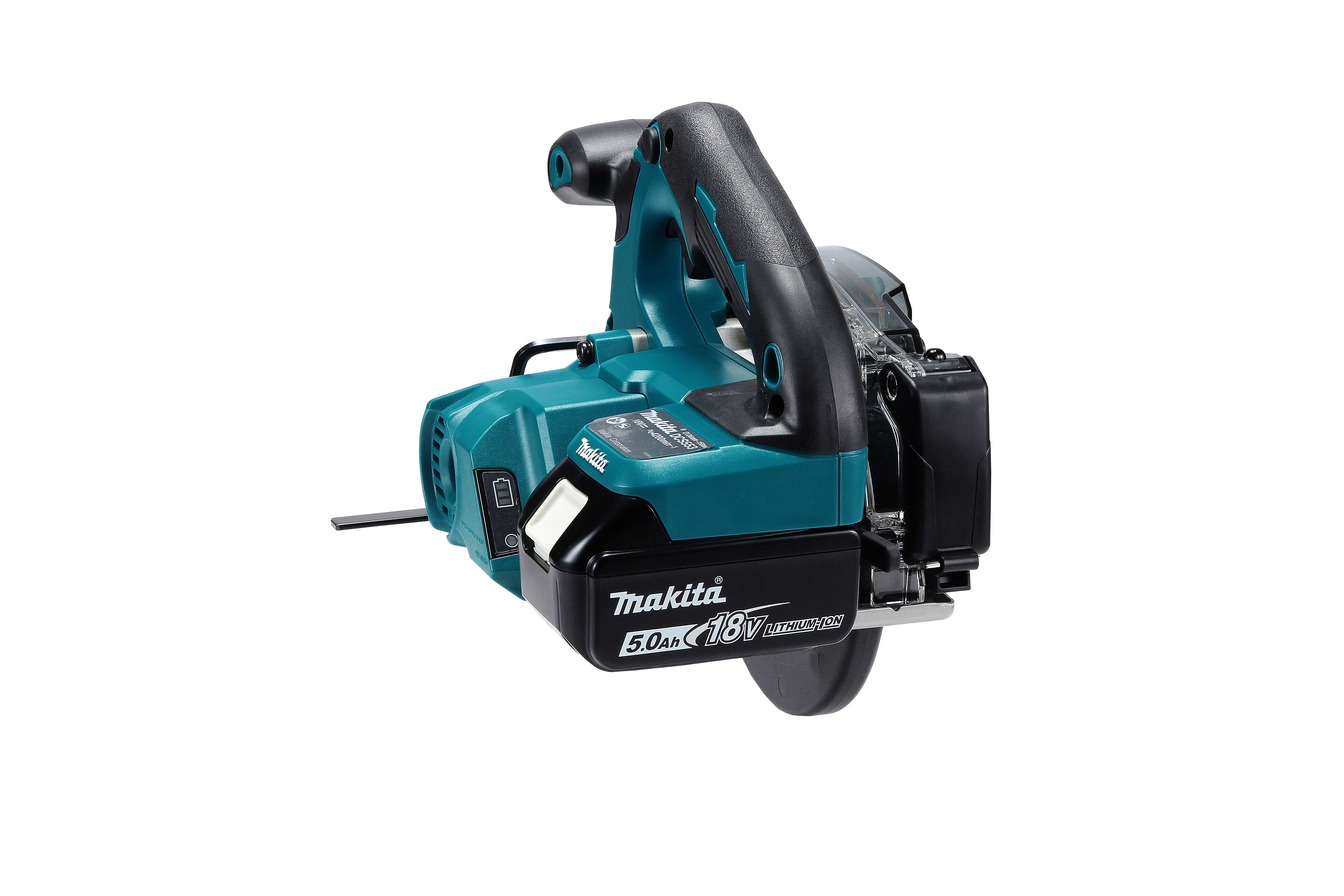

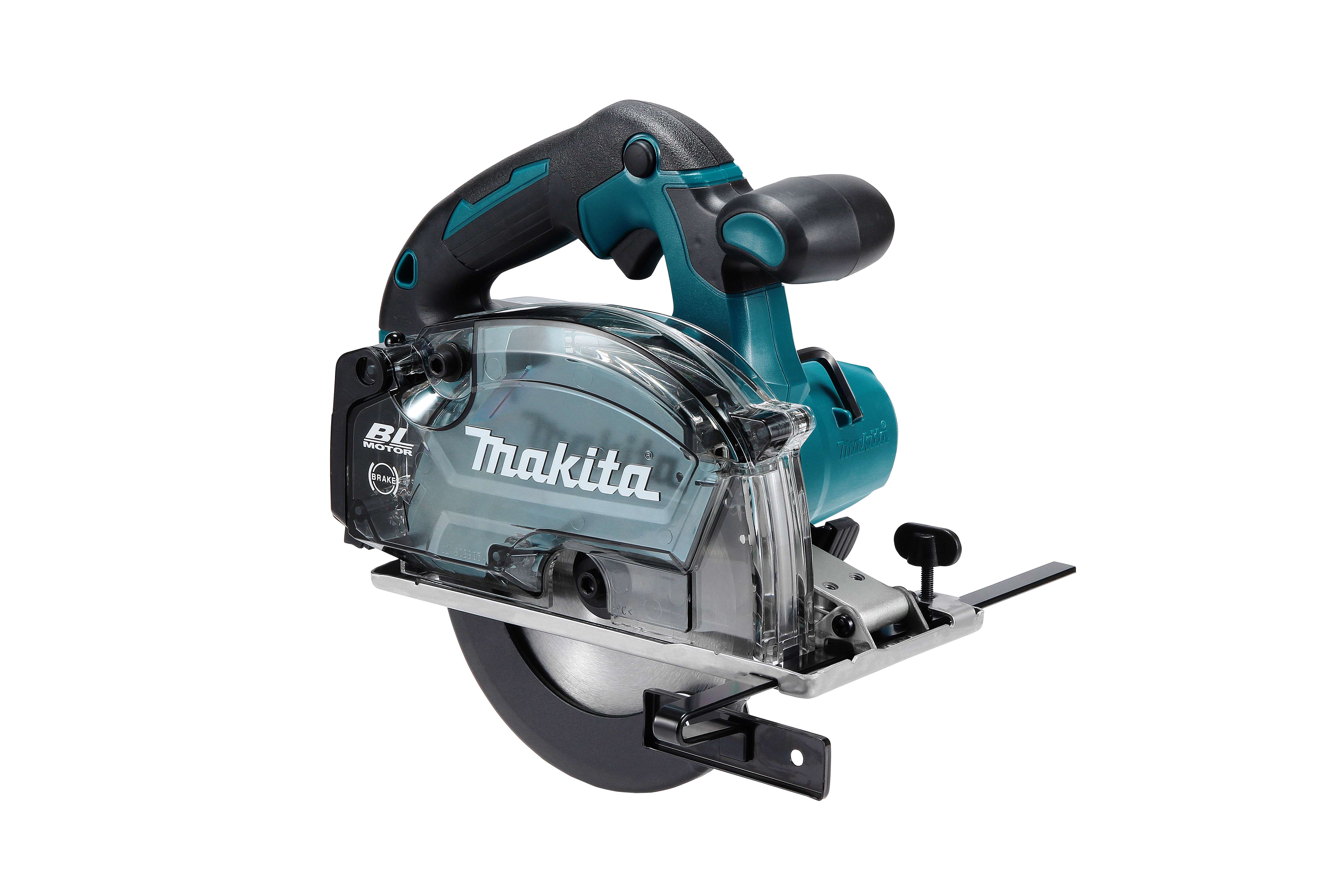

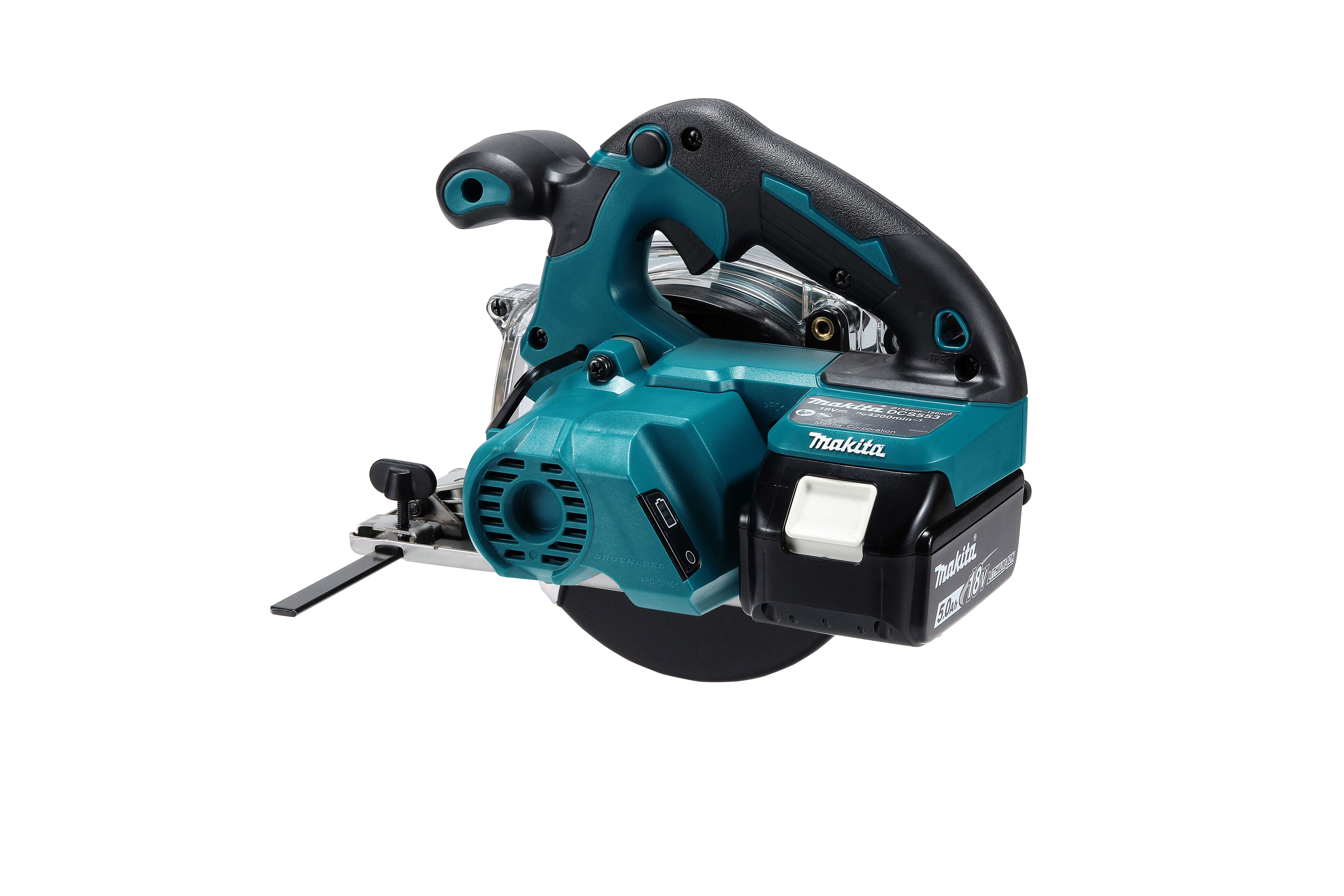

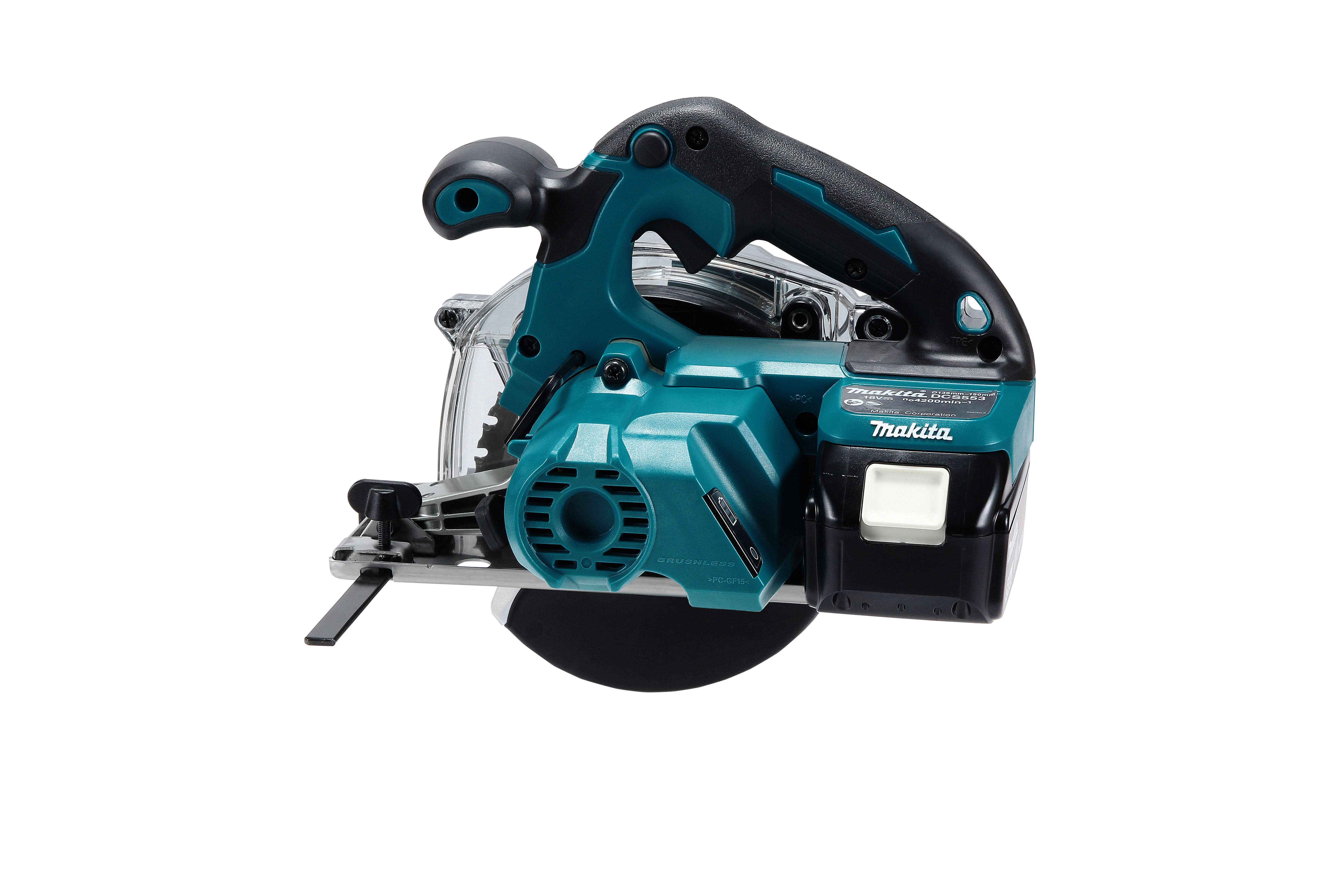

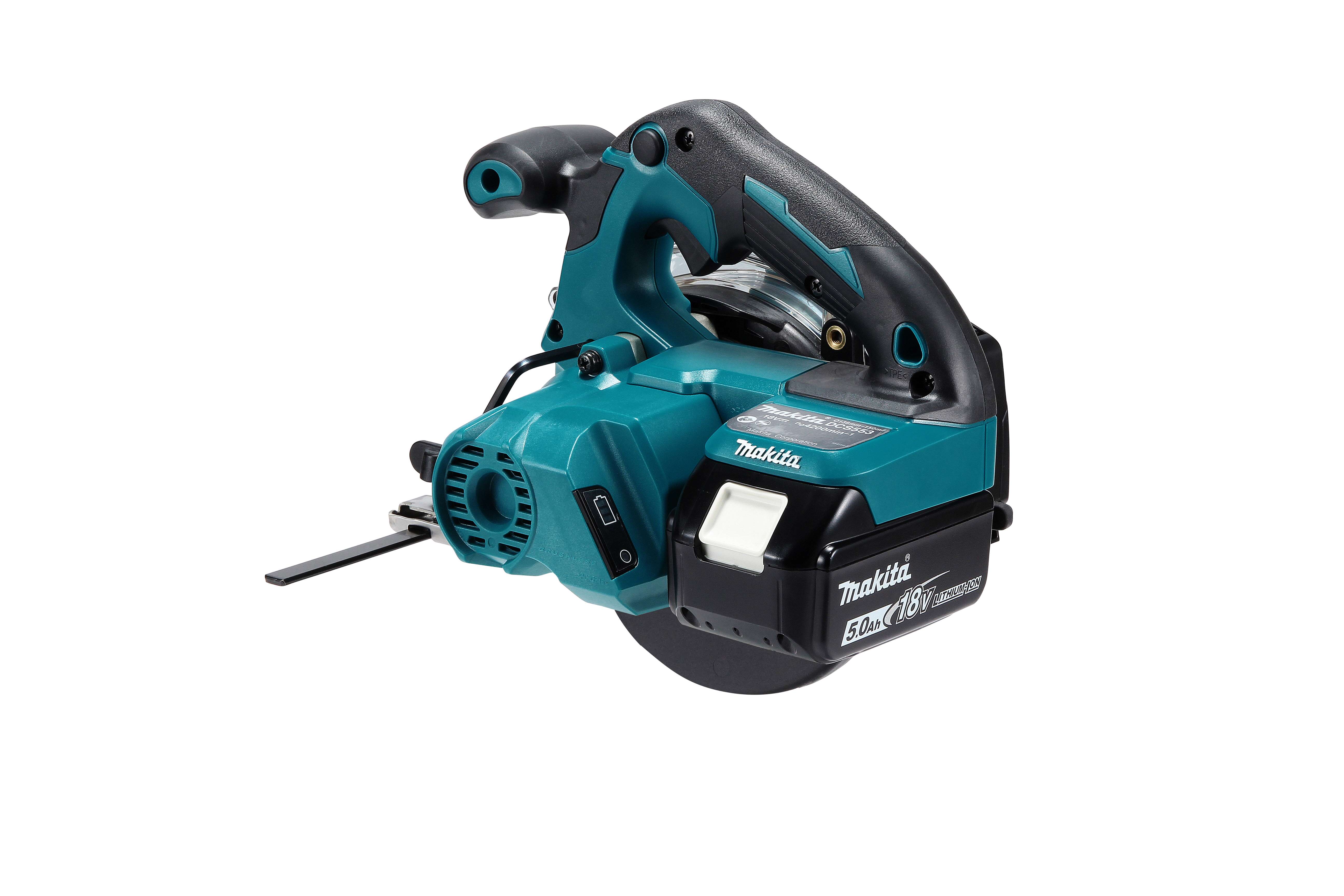

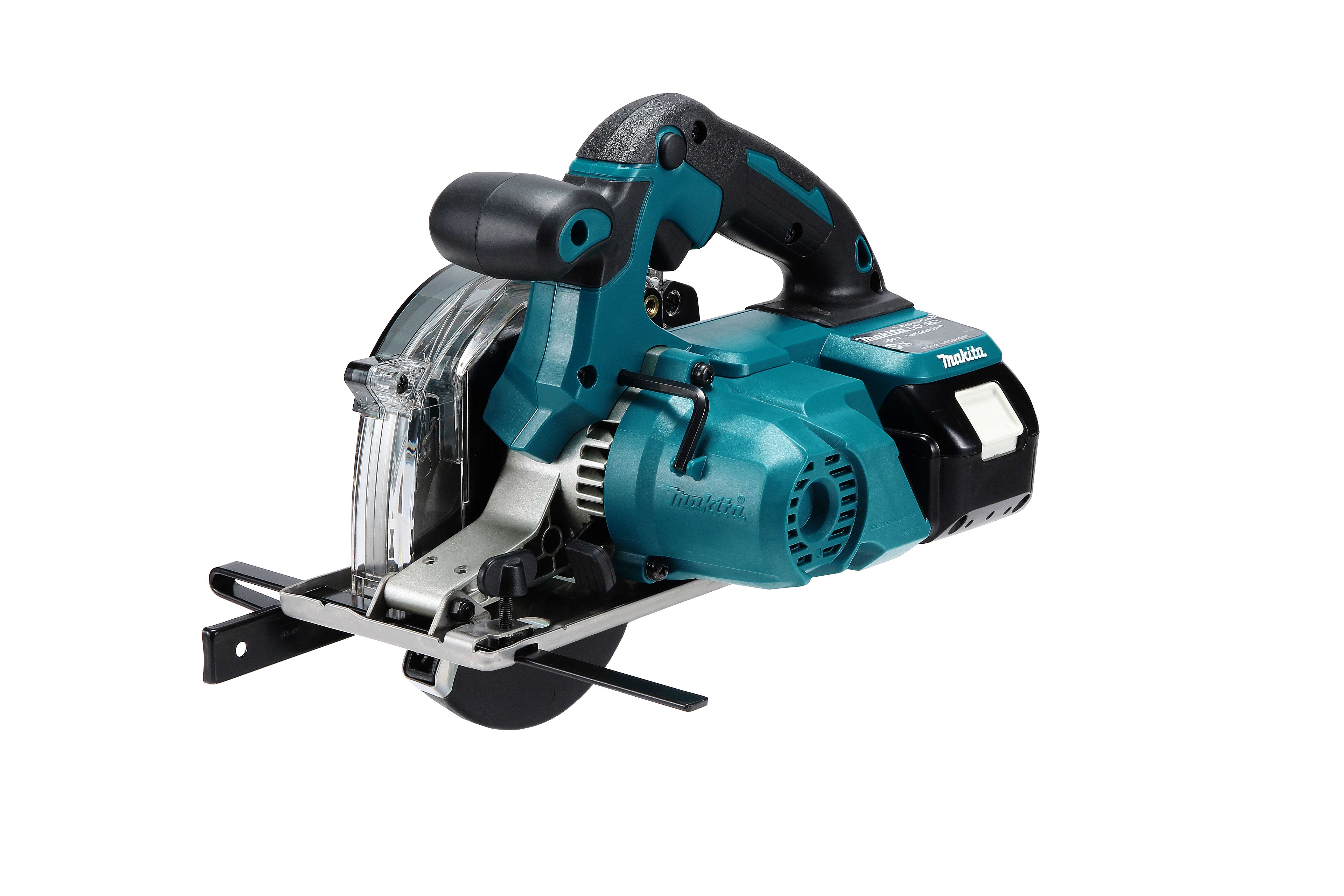

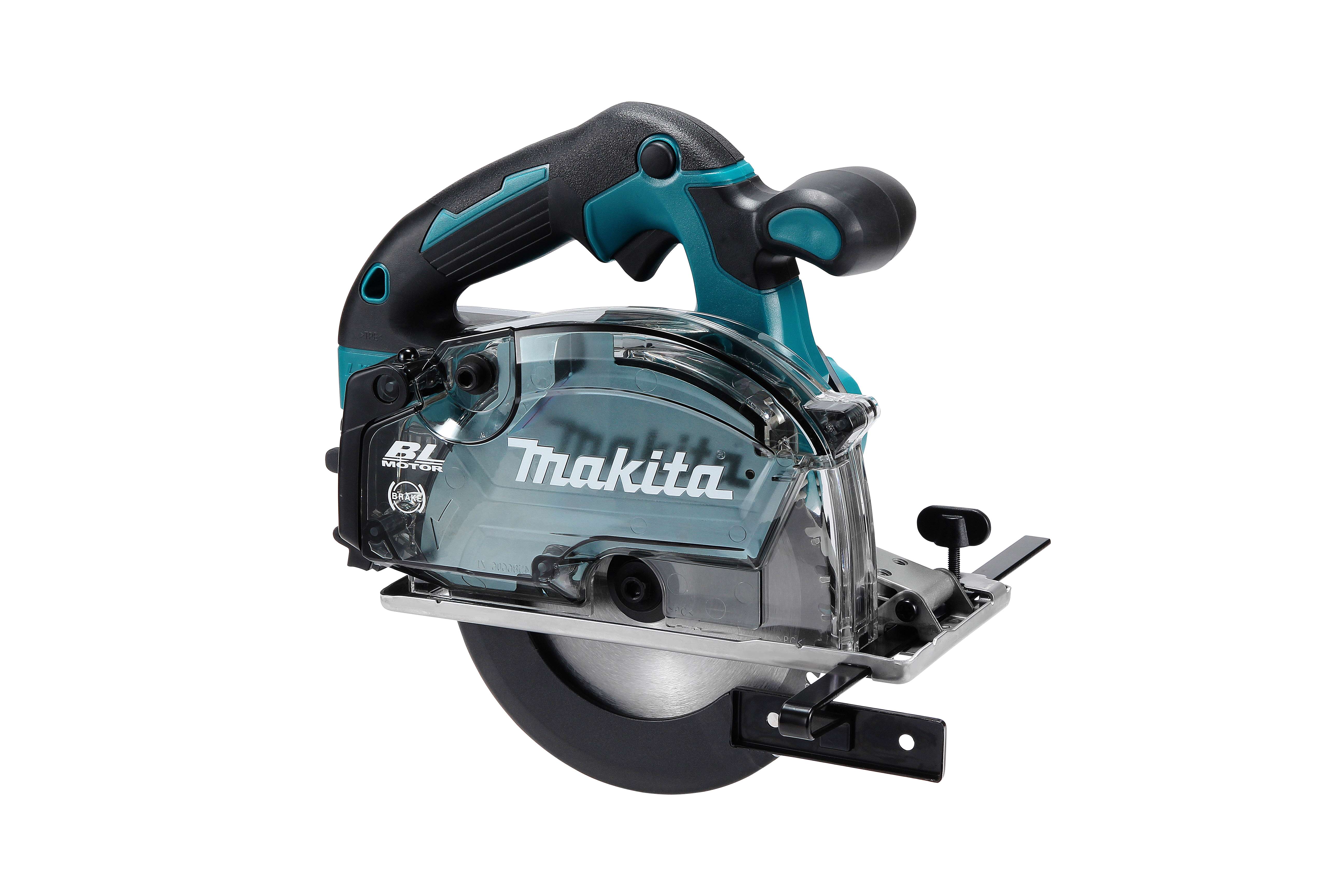

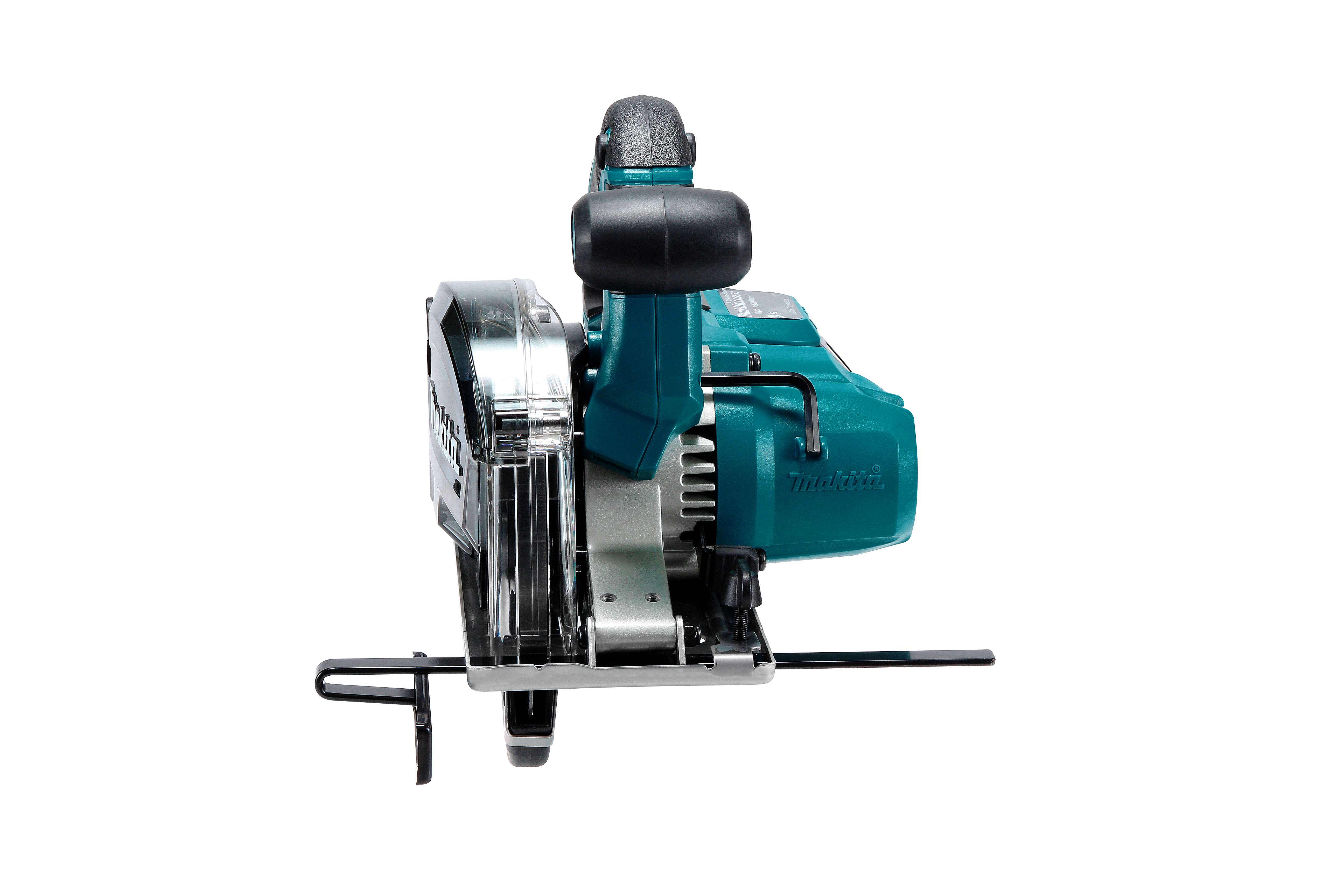

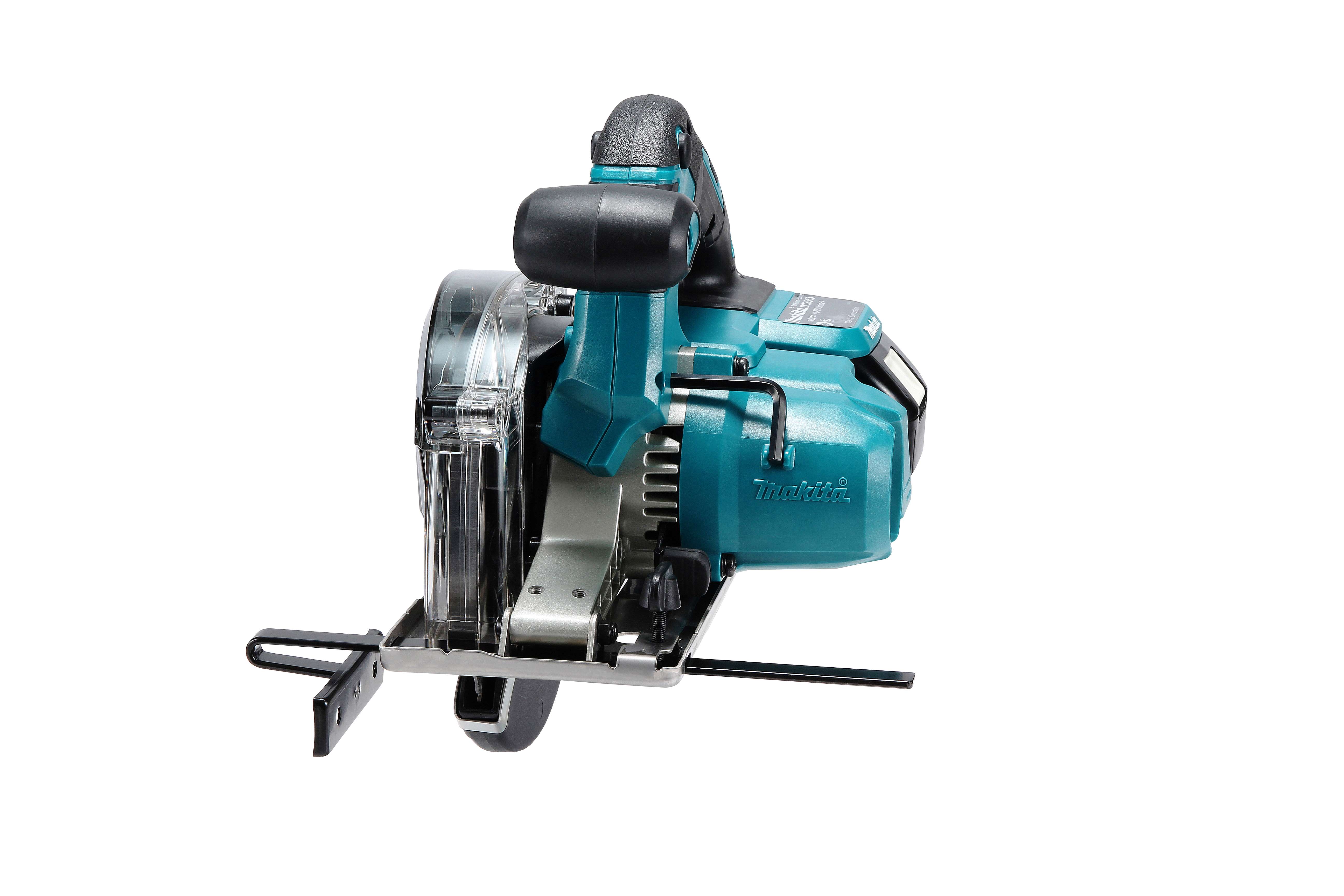

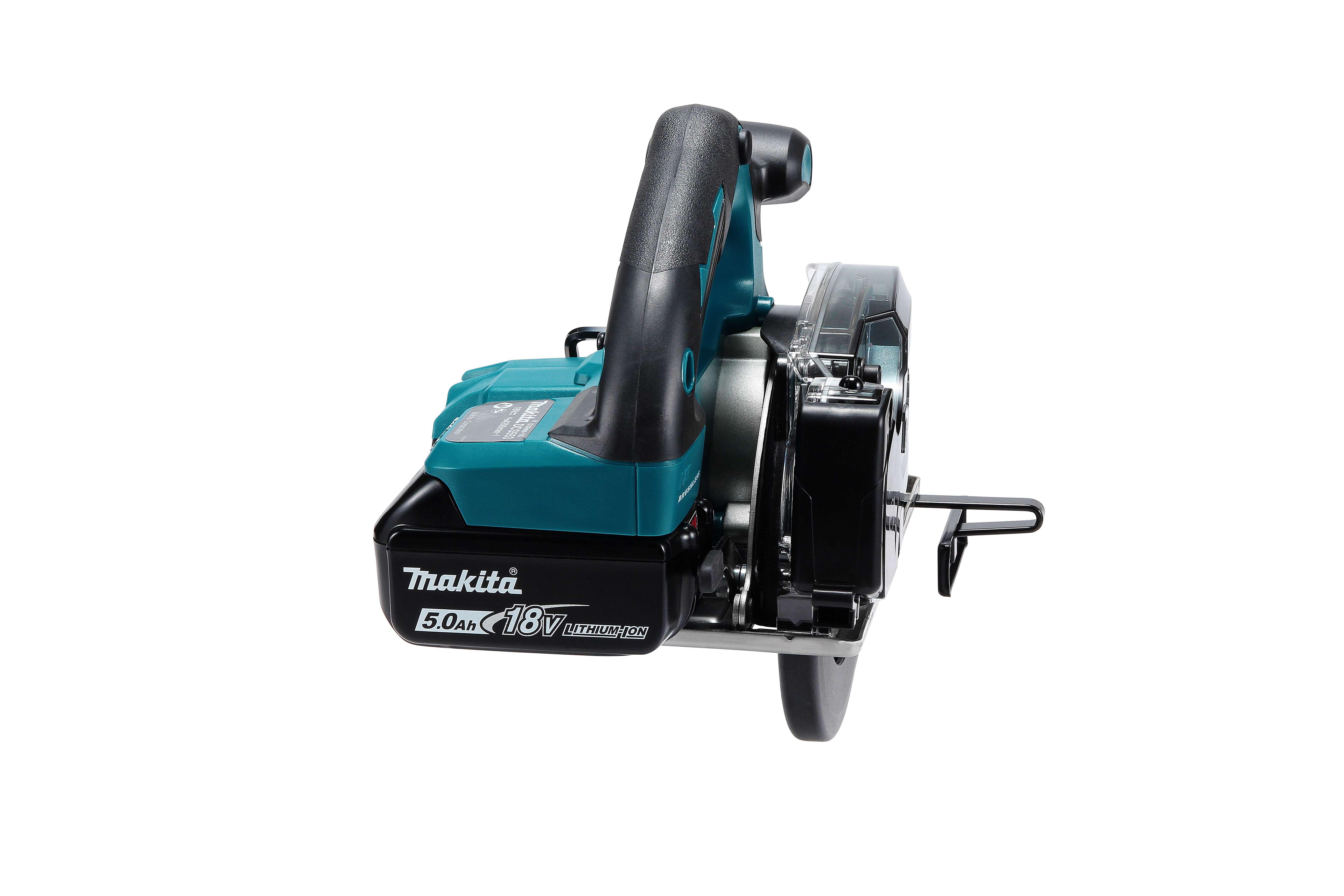

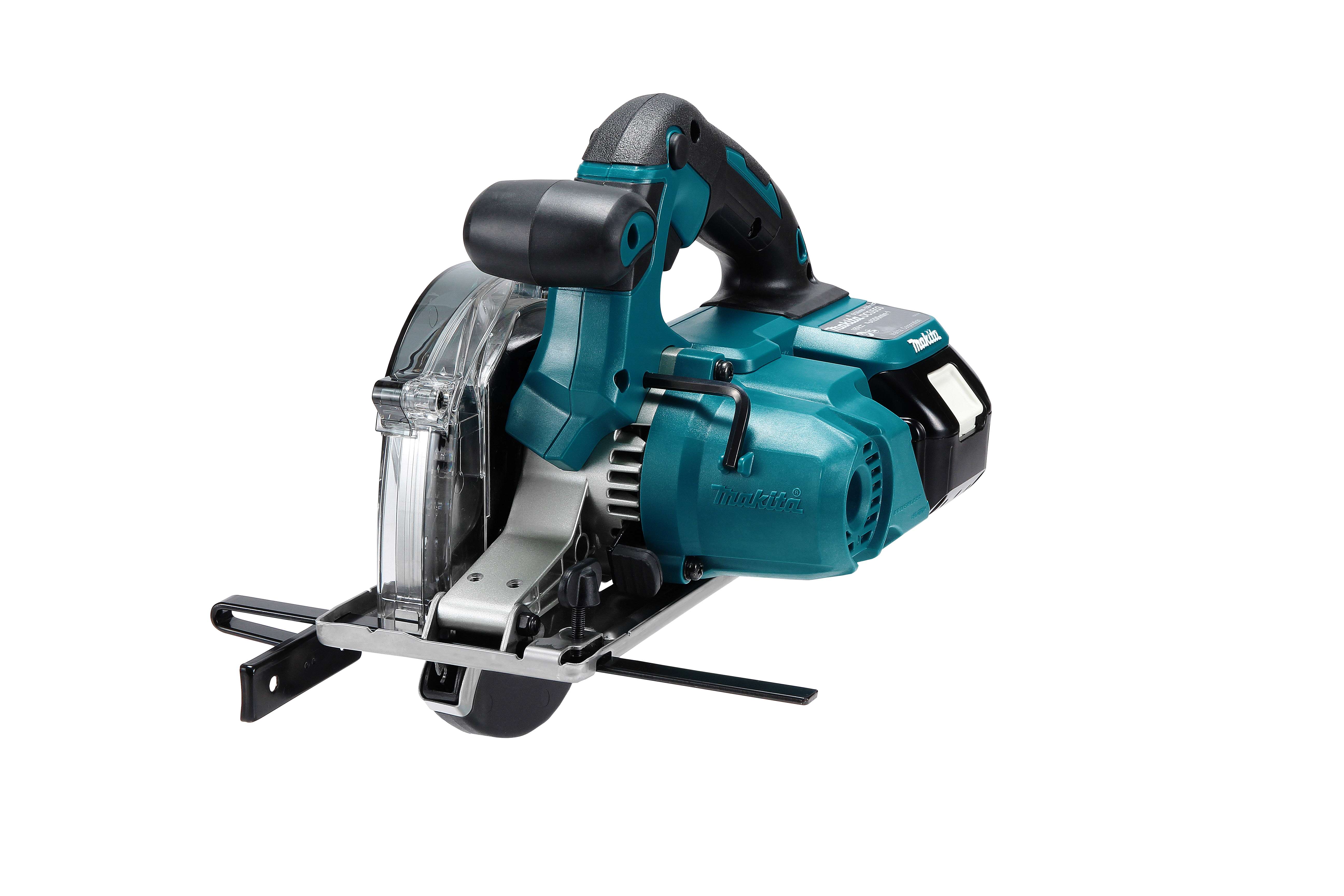

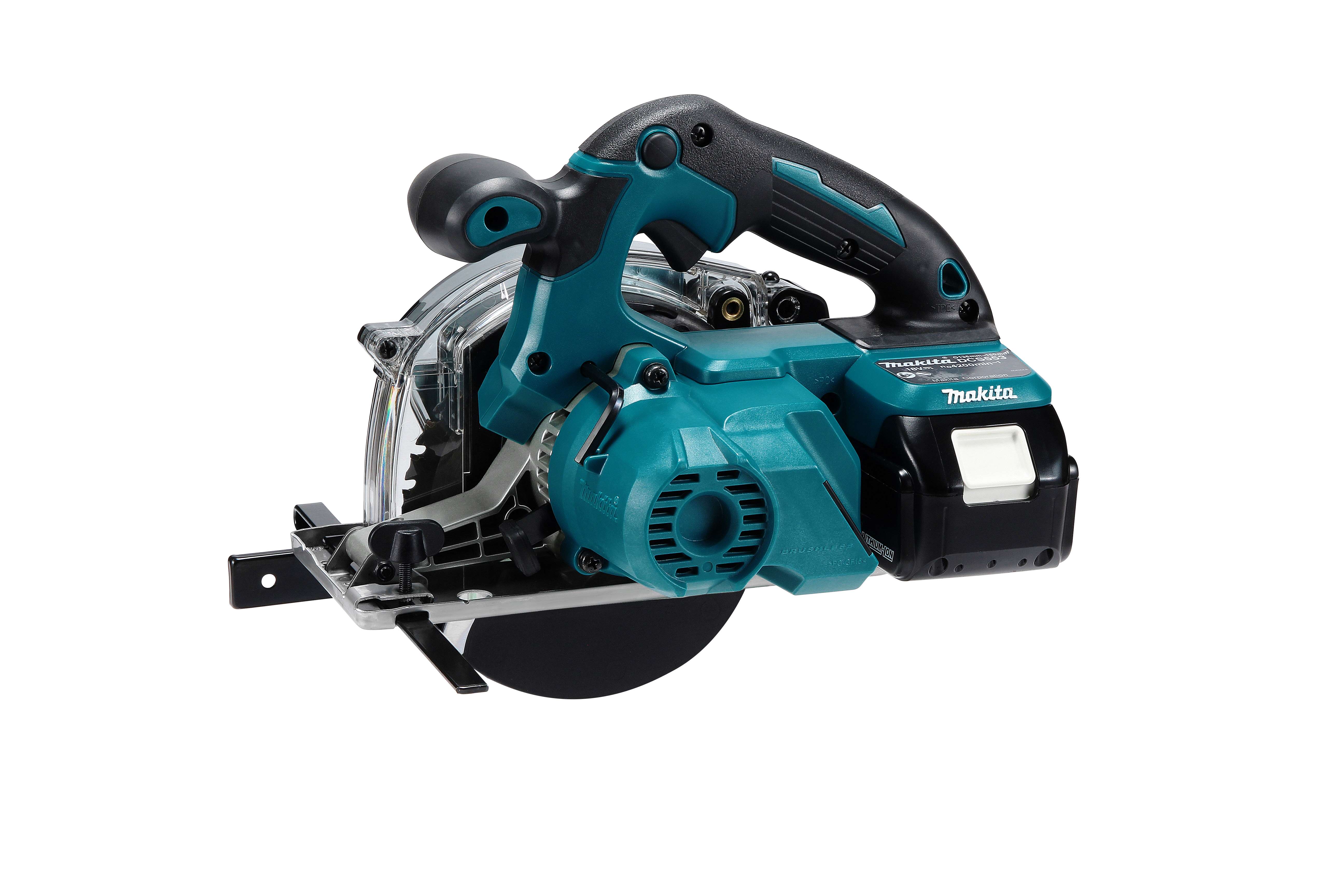

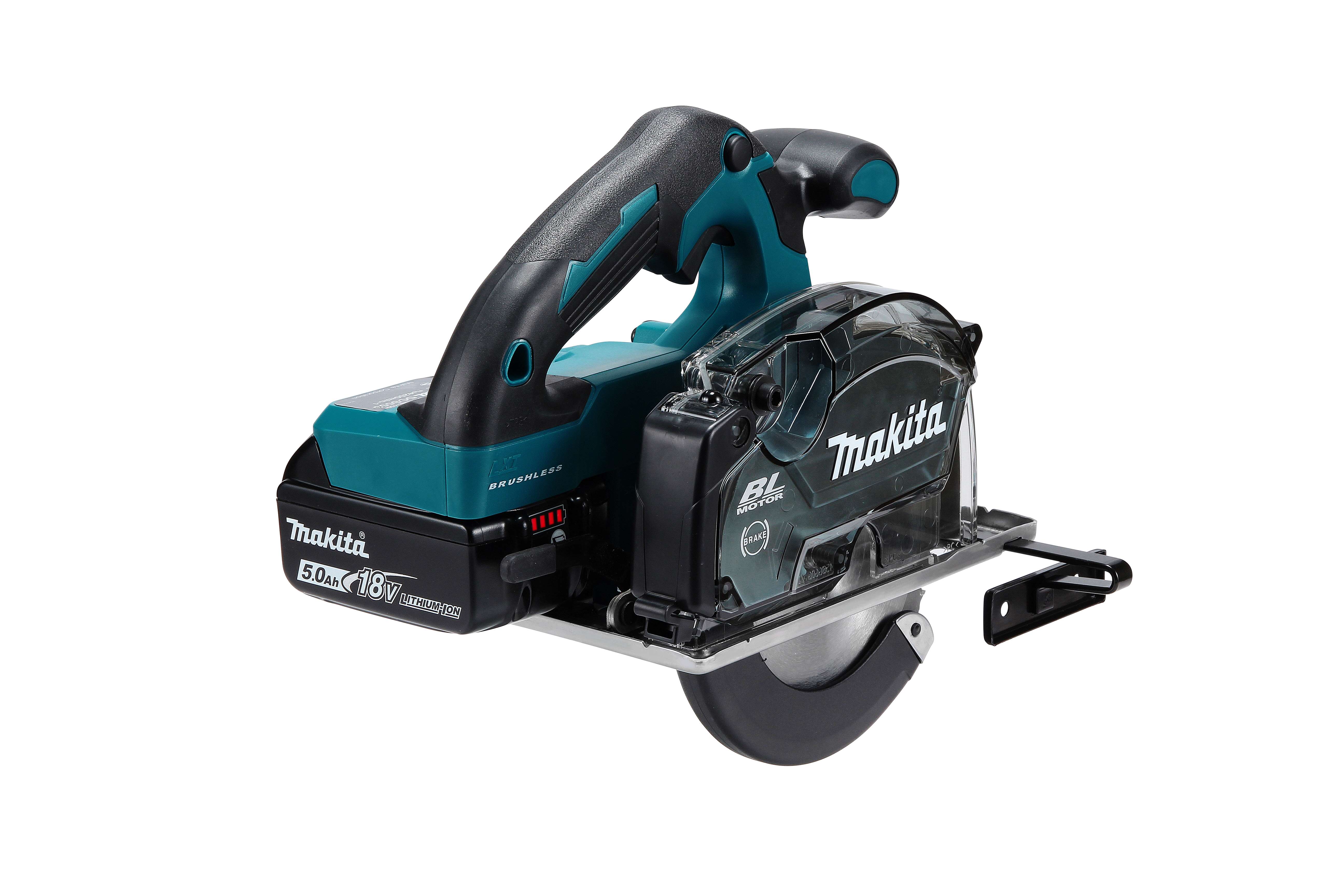

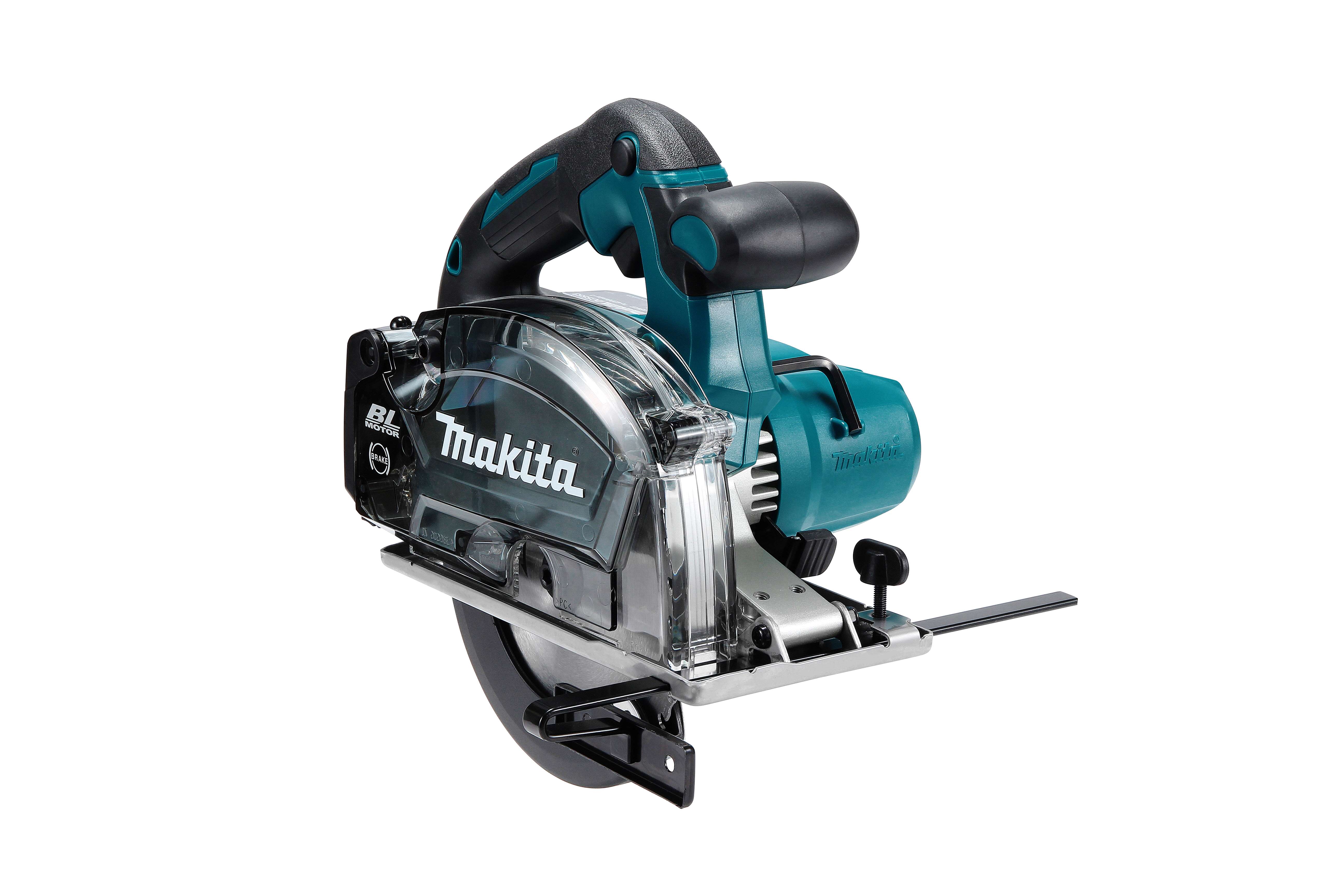

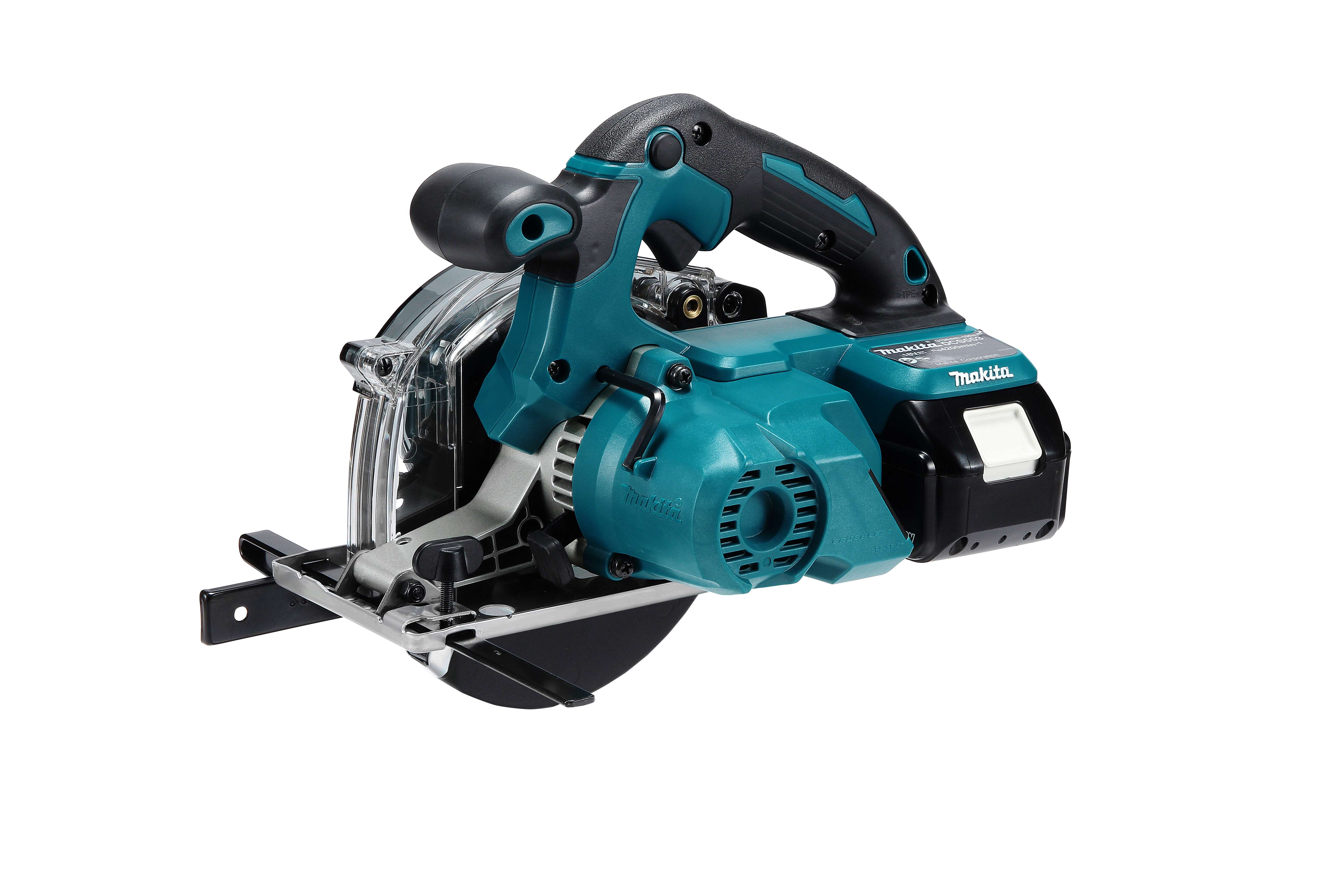

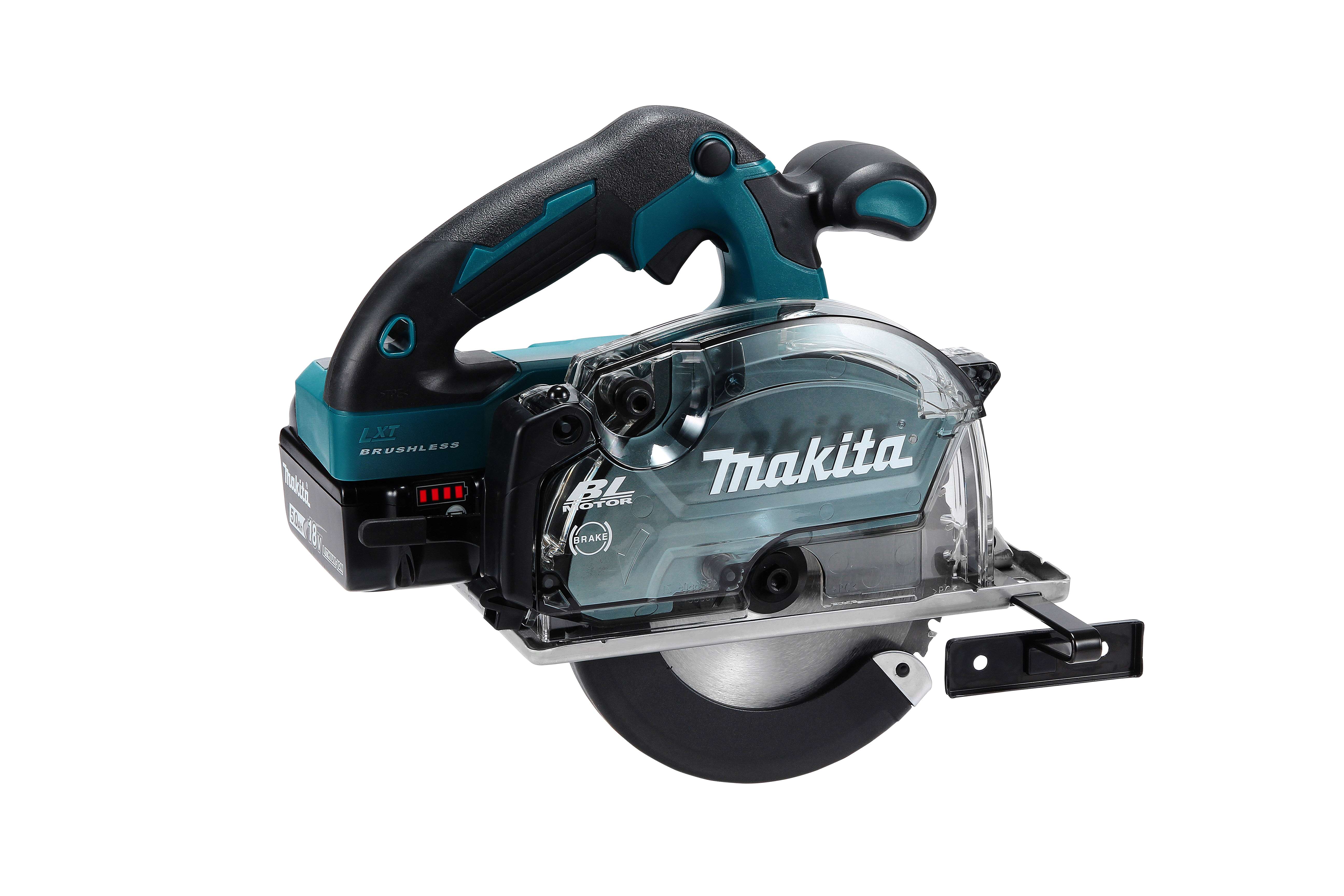

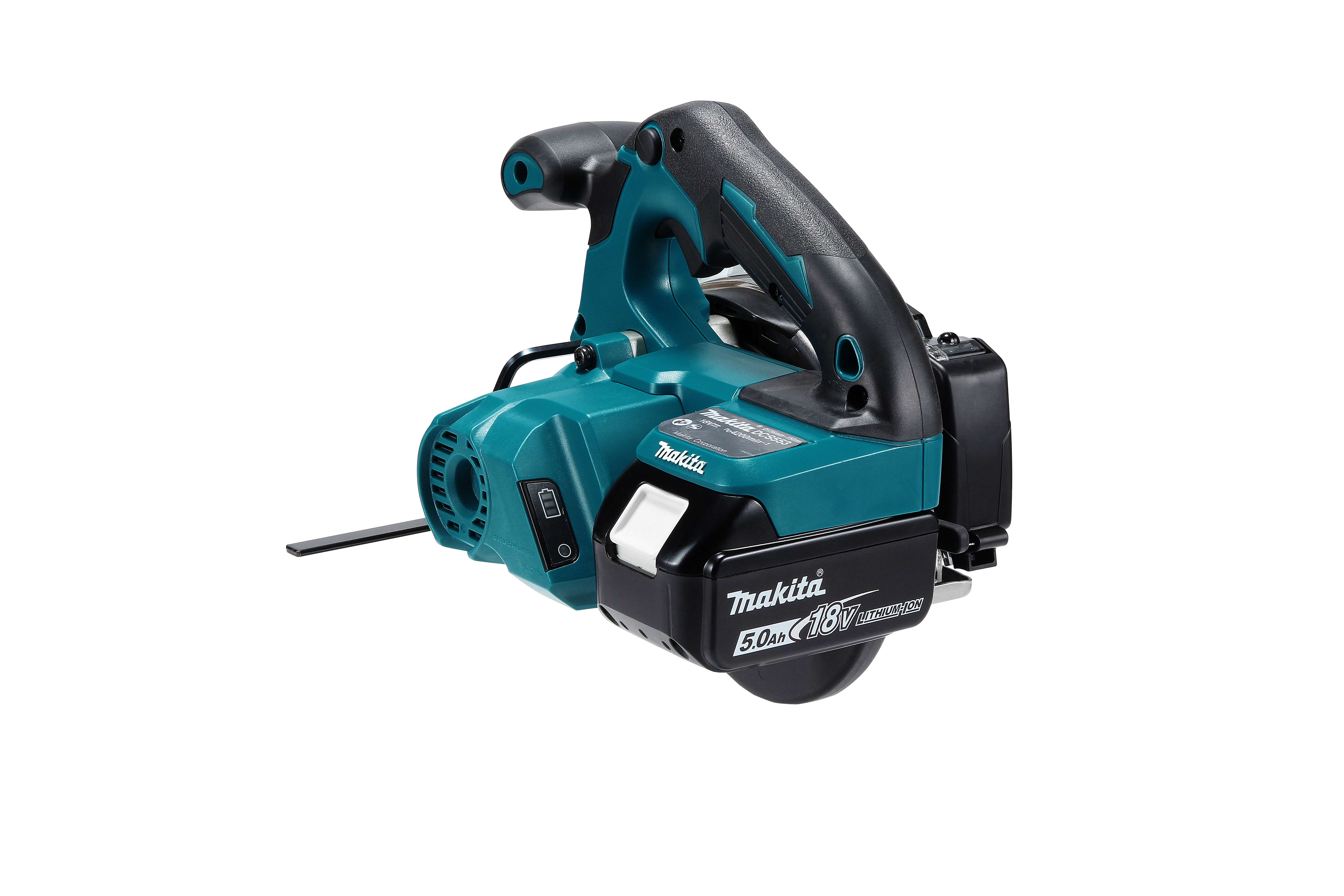

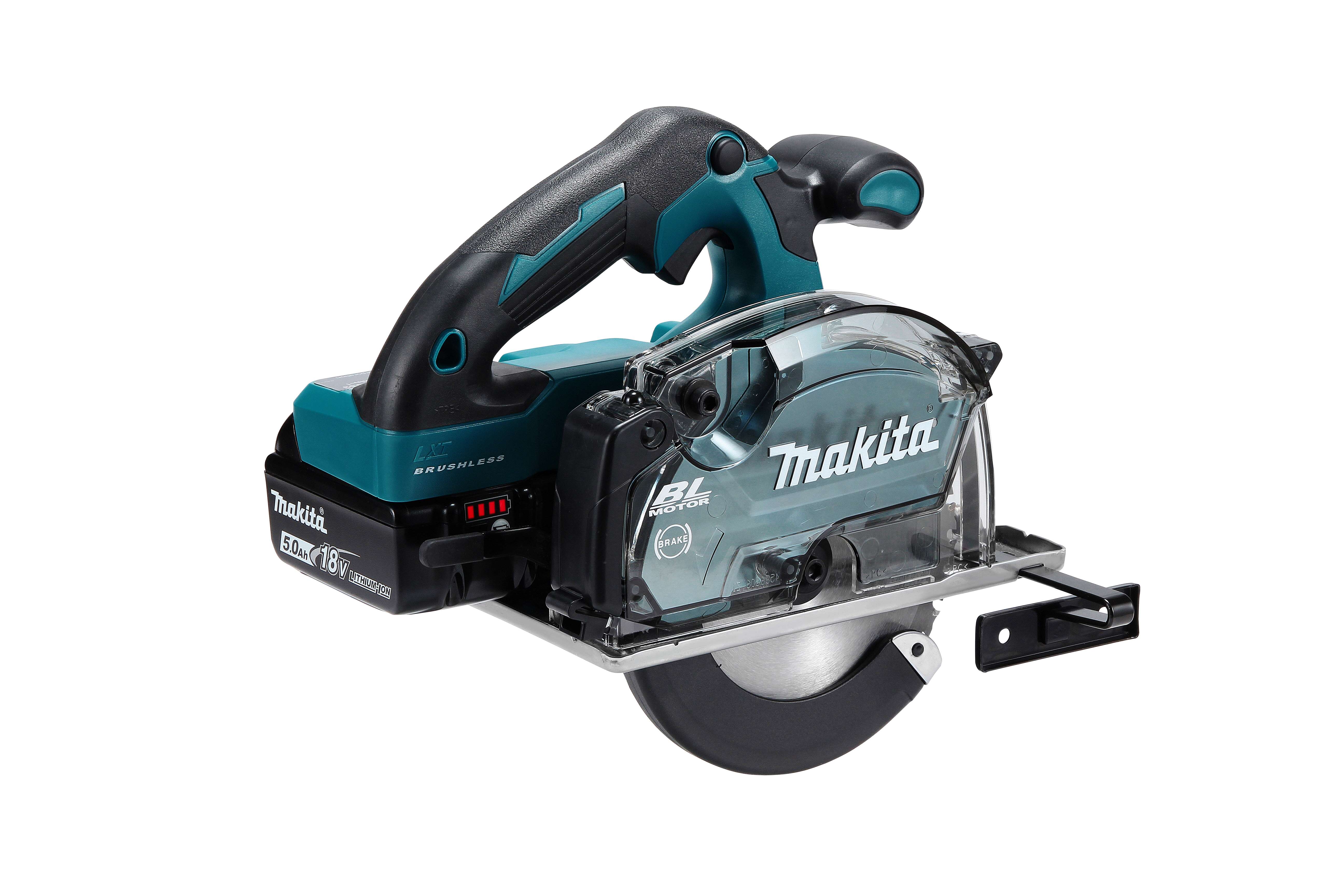

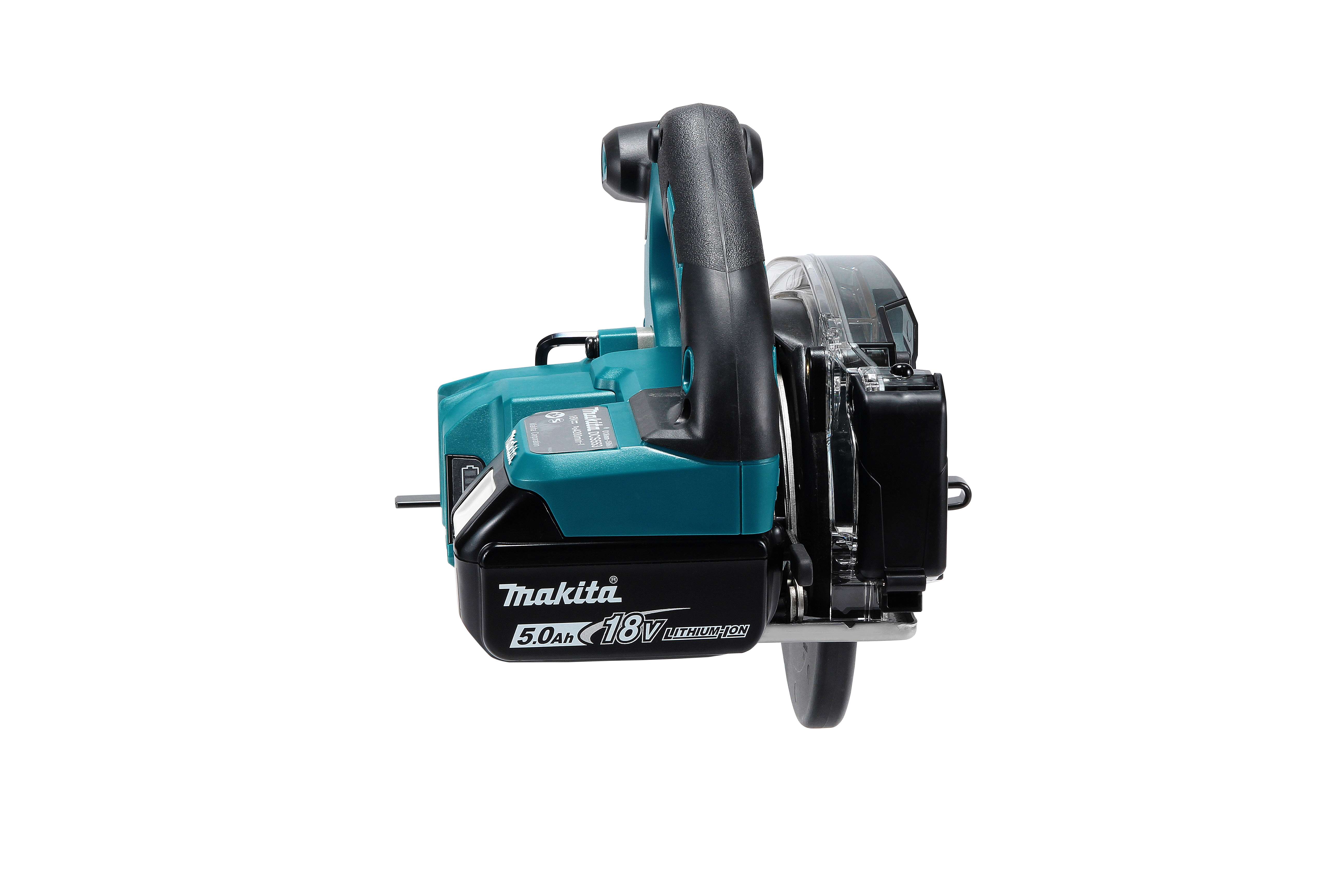

DCS553Z
Cordless Metal Cutter 18V LXT® BL 150 mm, 4200 rpm
Battery and charger are sold separately.
A circular metal saw with a brushless motor. Equipped with a blade with a 150 mm diameter that can achieve a max. cutting depth of 57.5 mm. Suitable for quick, almost spark-free cutting of metal. An ideal tool for electricians and air-conditioning and roofing fitters
Technologies and functions
lxt
LXT
blmotor
BLmotor
adt
ADT
xpt
XPT
brake
Brake
soft-start
Soft Start
built-in-job-light
Built-in Job Light
Advantages
- Drastically Shortened Overall Length for Increased Maneuverability
- Built-in dust collection box for cleaner work environment
- Metal chip/dust can be thrown away by just opening the dust box cap
- Increased speed (4,200 RPM) provides more comfortable operation for light load application
- Cuts 51 mm (2") conduit in a single pass
- BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
- BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
- Automatic Torque Drive Technology (ADT) adjusts speed and torque during operation for optimum performance
- Cuts a wide range of metals including Unistrut, all thread, channel, conduit, pipe and more
- Large cutting capacity (57.5 mm (2-1/4") at 90°)
- Soft grip handle provides increased comfort on the job
- Electric brake for maximum productivity
- Soft start feature for smooth start-ups
- Dual LED lights with preglow/afterglow functions illuminate the work area
- Stainless steel base reduces chip build-up to minimize surface damage
- Compact design for increased maneuverability
- Tool hook enables to hang the machine on the hoist hook, etc
- Water-resistance compatible with XPT
- On-tool hex wrench for fast and easy blade changes and keeping it from lost. Battery protection circuit protects against overloading, over-discharging and over-heating. Flat motor housing allows tool to stand upright when changing blades. Lock-off lever helps minimize accidental starts (for tool with lock-off lever). Conveniently located shaft and lock for easy blade replacement. Optional handy rip fence (guide rule) allows you to do extra-accurate straight cuts
Specifications
Capacity, mm
150
Max output
600
No load speed, rpm
4'200
Глубина реза, мм
57.5
Type of motor
BLmotor
Platform
18V LXT®
Type of battery
Li-Ion
Voltage, V
18
Capacity, Ah
Time of charging, min
Charger
Compatible batteries
18 V: 6.0 Ah / 5.0 Ah / 4.0 Ah / 3.0 Ah / 2.0 Ah / 1.5 Ah
Brake
Constant speed
Built-in job light
Soft start
Anti-restart function
ADT
Mounting diameter, mm
15,88 / 20
Толщина диска, мм
0.95
Net Weight, kg
2.8
Vibration level
2.5
Vibration K factor
1.5
Sound pressure level, dB
103
Sound power level, dB
114
Noise K factor, dB
3
Depth, mm
267
Width, mm
186
Height, mm
250
Code EAN
0088381865241
Packaged Width, mm
220
Packaged Depth, mm
290
Packaged Height, mm
320
Weight (package), kg
3.6
HS code
8467223000
