DHS680Z
Cordless Circular Saw 18V LXT® BL, 165 mm
Battery and charger are sold separately.

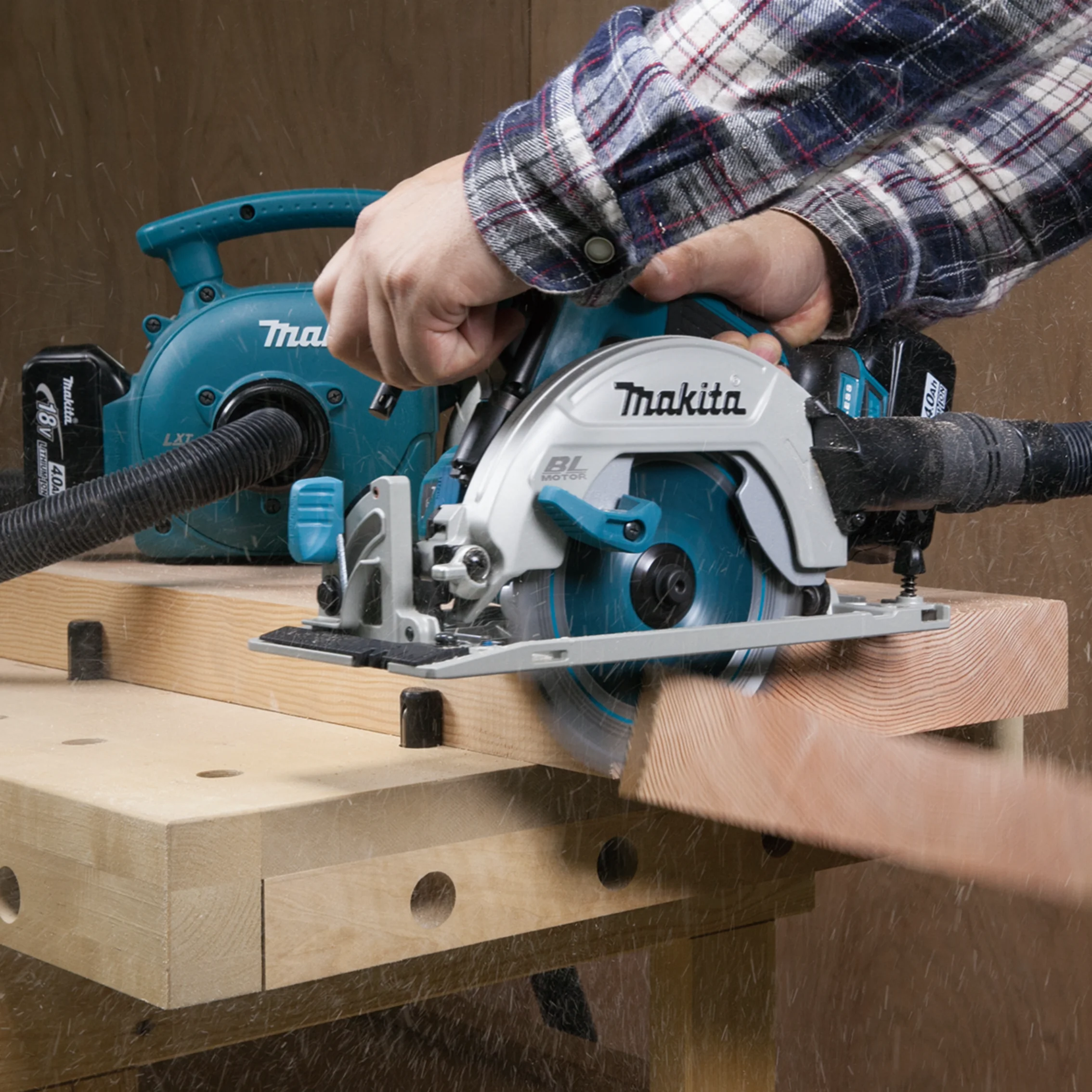

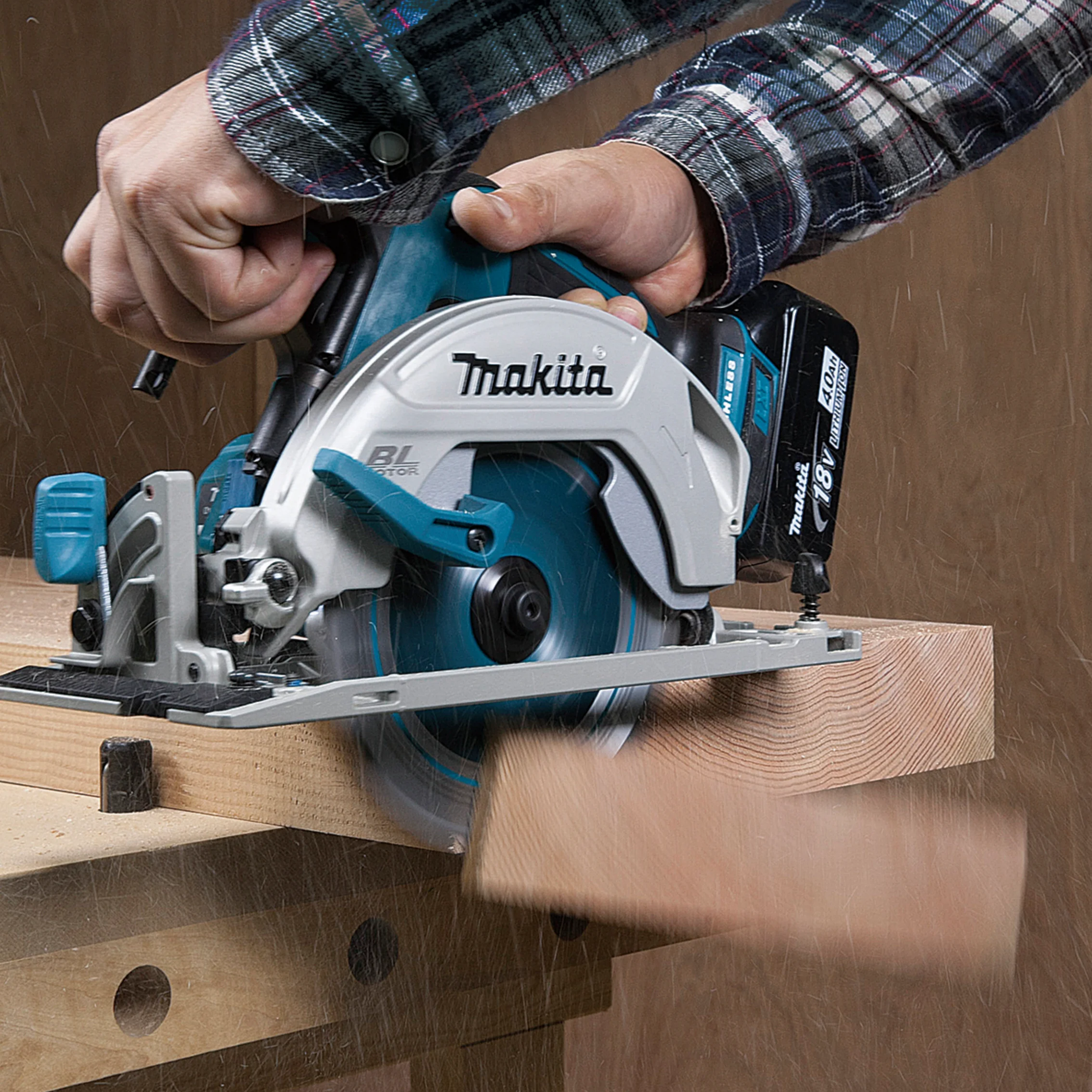

Efficient and compact brushless professional saw An efficient brushless and cordless circular saw for wood. Accepts blades with 165 mm diameter that achieve a max. cutting depth of 57 mm. Ventilation air is guided through the front to keep the cut line clear and an LED light offers added illumination. Compatible with a guide rule.
Technologies and functions
lxt
LXT
blmotor
BLmotor
adt
ADT
brake
Brake
soft-start
Soft Start
dust-collection
Dust Collection
built-in-job-light
Built-in Job Light
Advantages
- High-efficiency BL motor provides higher power and more work amount
- Smooth cutting at high rotational speed of 5,000 RPM
- Compact and lightweight design
- ADT (Automatic Torque Drive Technology) adjusts speed and torque during operation for optimum performance
- Blower function blows sawdust off the cut line ahead for a better cutting view
- Dual LED job lights for more visibility
- Soft grip provides increased comfort on the job
- Large rubberized levers for quick and easy depth and bevel adjustments
- Electric brake for maximum productivity and increased operator safety
- Soft start suppresses start-up reaction for more control and better accuracy
- Dust nozzle is attachable for connecting to vacuum cleaner
- Magnesium base with 45 and 50 degrees bevel cutting capacity
- Rear dust exhaust port
- LED indicator panel with 3 indicators for: Battery Fuel Gauge, Automatic Torque Drive and Overload Protection
- Tool hanger for hanging on a ladder or rafter
- Large, comfortable front grip
- Large lock off lever easily operated even with a gloved hand
- 24T thin kerf TCT saw blade for fast cutting
Specifications
Capacity, mm
165
Type of motor
BLmotor
No load speed, rpm
5'000
Mounting diameter, mm
15,88 / 20 / 25,4 / 30
Толщина диска, мм
1.0
Диапазон угла наклона (влево / вправо)
50 °
Глубина реза_ENG
0°: 57 mm / 45°: 41 mm / 50°: 37 mm
Положение диска_ENG
Left side
Материал изготовления_ENG
Base plate: Magnesium diecast / Safety cover: Magnesium diecast / Blade case: Magnesium diecast
Platform
18V LXT®
Type of battery
Li-Ion
Voltage, V
18
Charger
Compatible batteries
18 V: 6.0 Ah / 5.0 Ah / 4.0 Ah / 3.0 Ah / 2.0 Ah / 1.5 Ah
Brake
Constant speed
Built-in job light
Soft start
Dust Collection
Anti-restart function
Net Weight, kg
3
Vibration level, m/s²
2.5
Vibration K factor, m/s²
1.5
Sound pressure level, dB
83
Sound power level, dB
94
Noise K factor, dB
3
Depth, mm
350
Width, mm
170
Height, mm
238
Code EAN
0088381683197
Packaged Width, mm
200
Packaged Depth, mm
360
Packaged Height, mm
270
Weight (package), kg
3.75
HS code
8467223000
