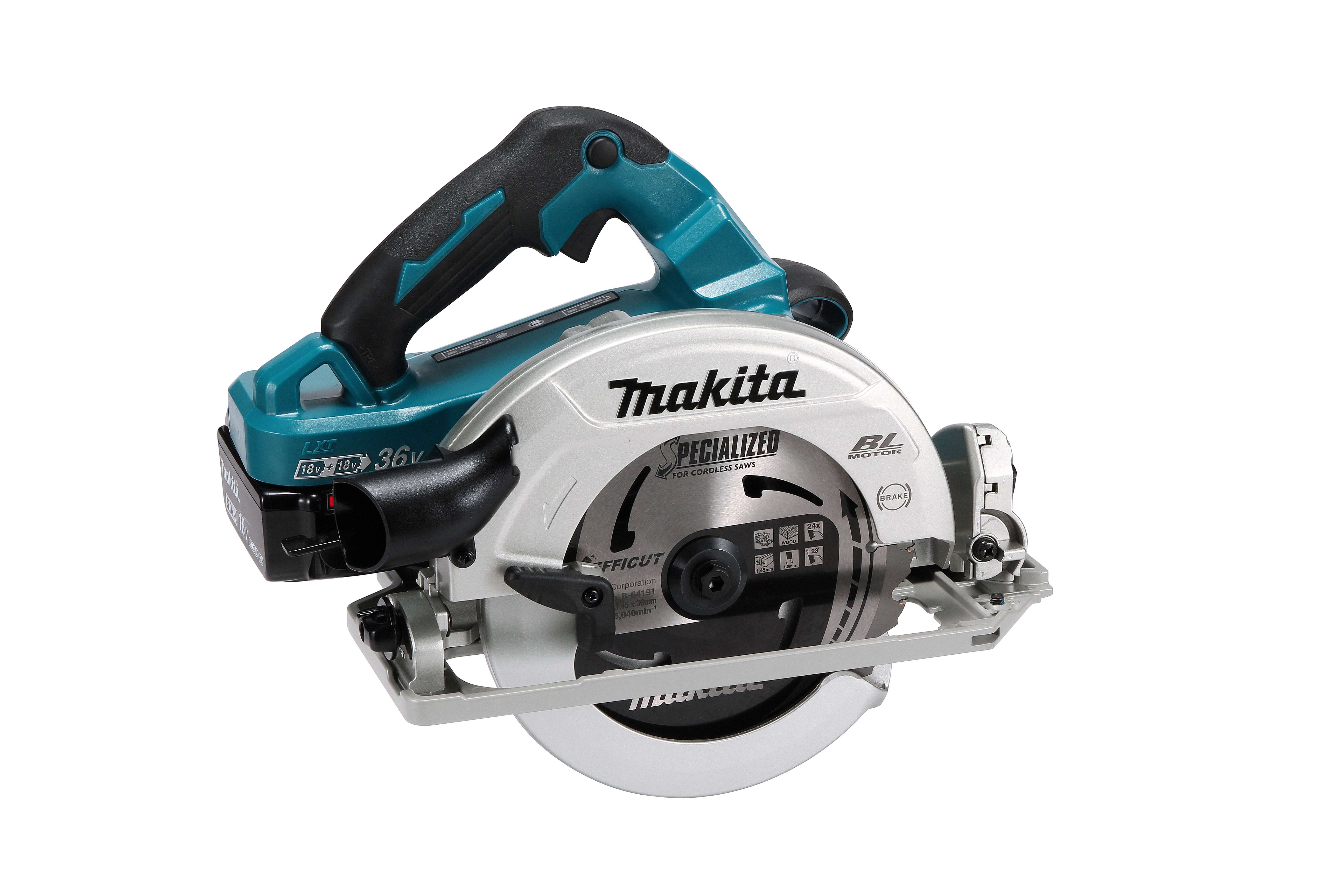

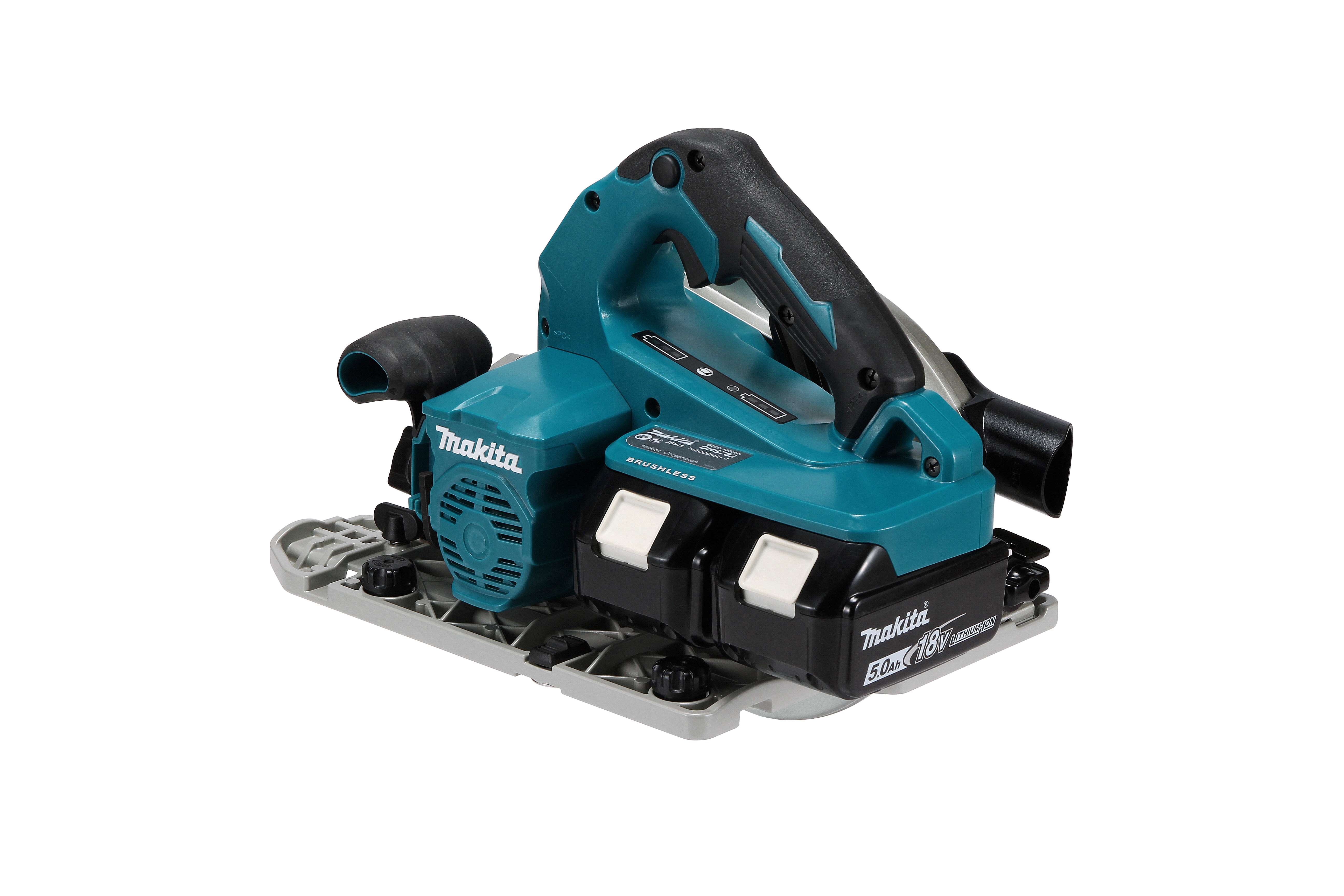

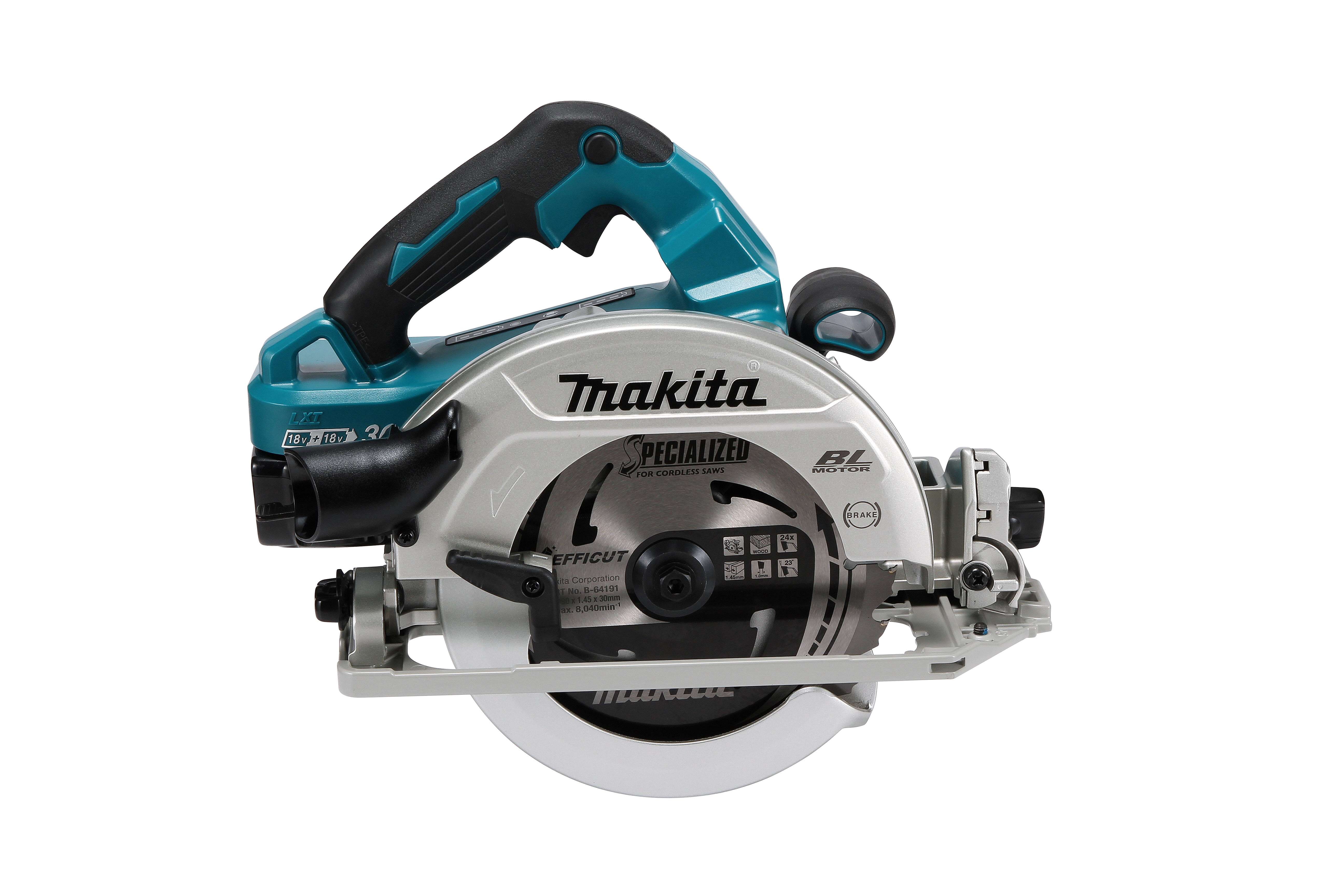

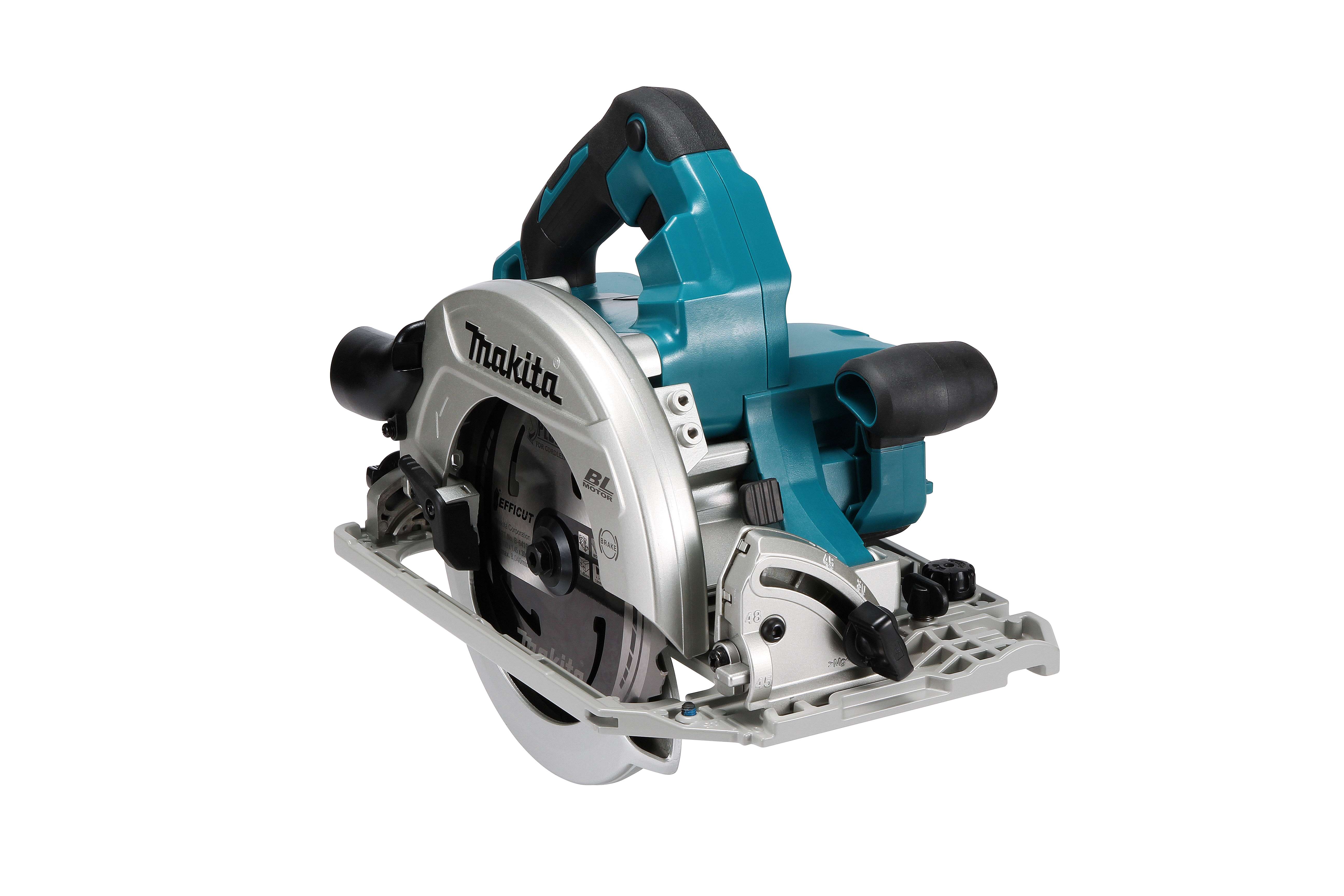

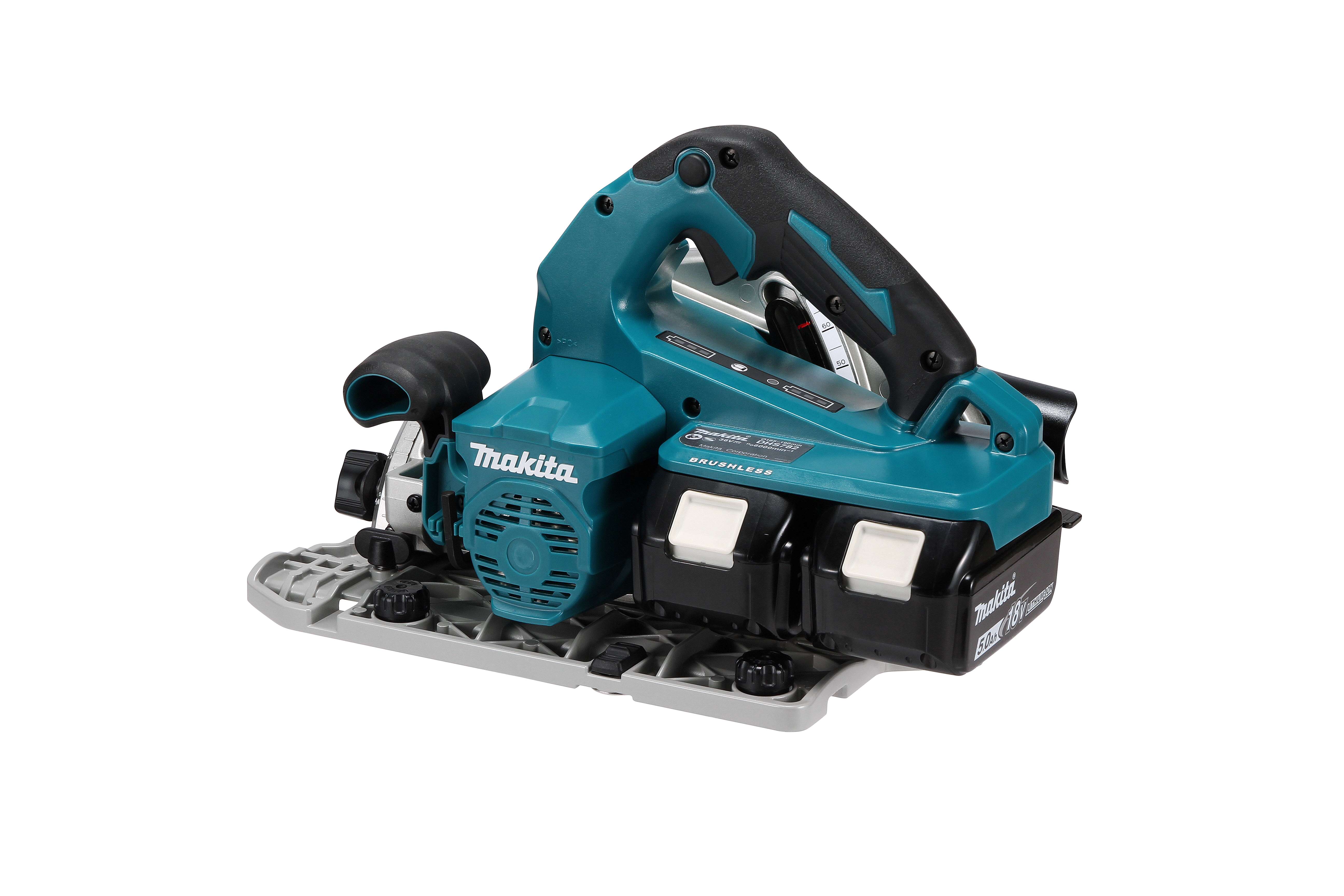

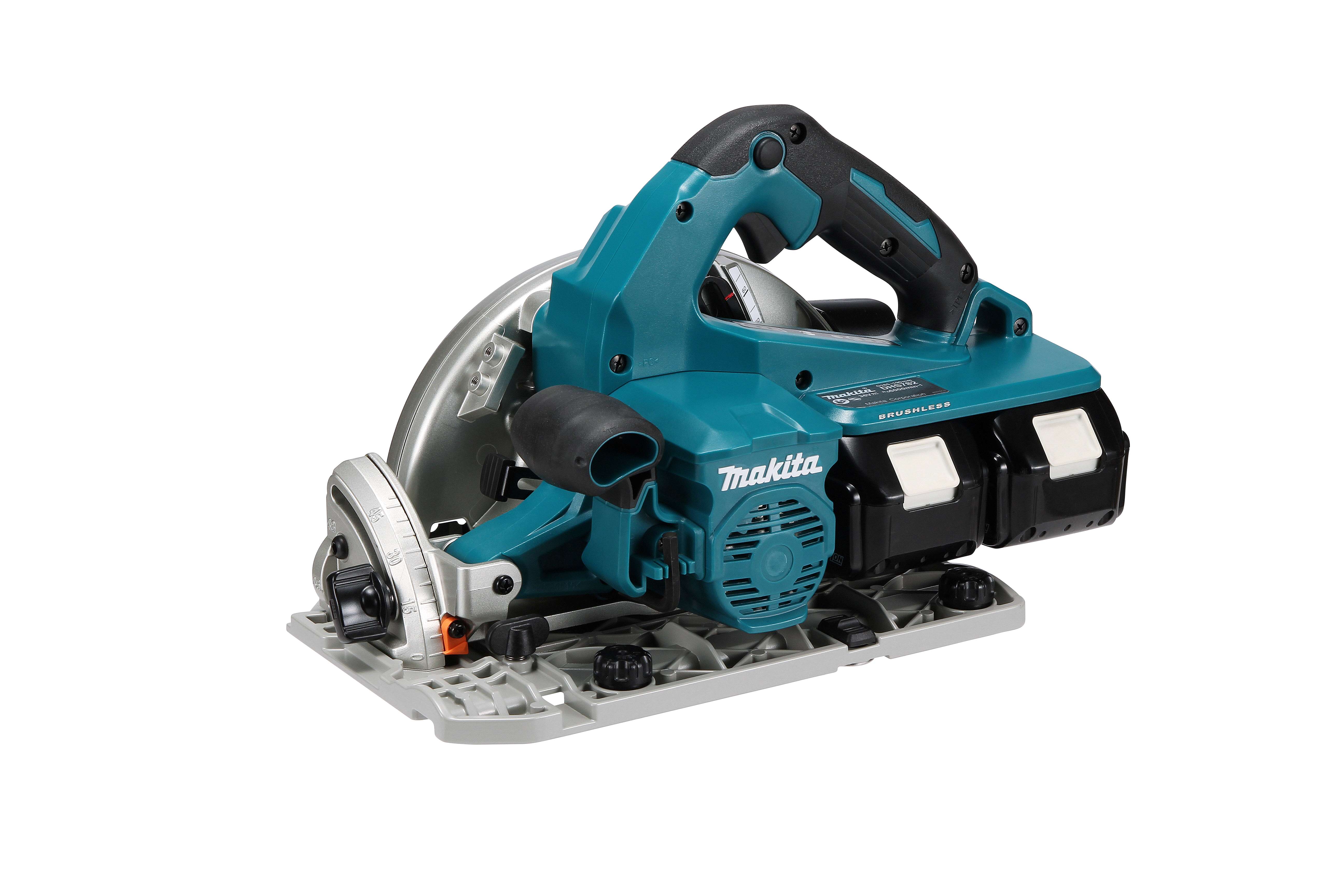

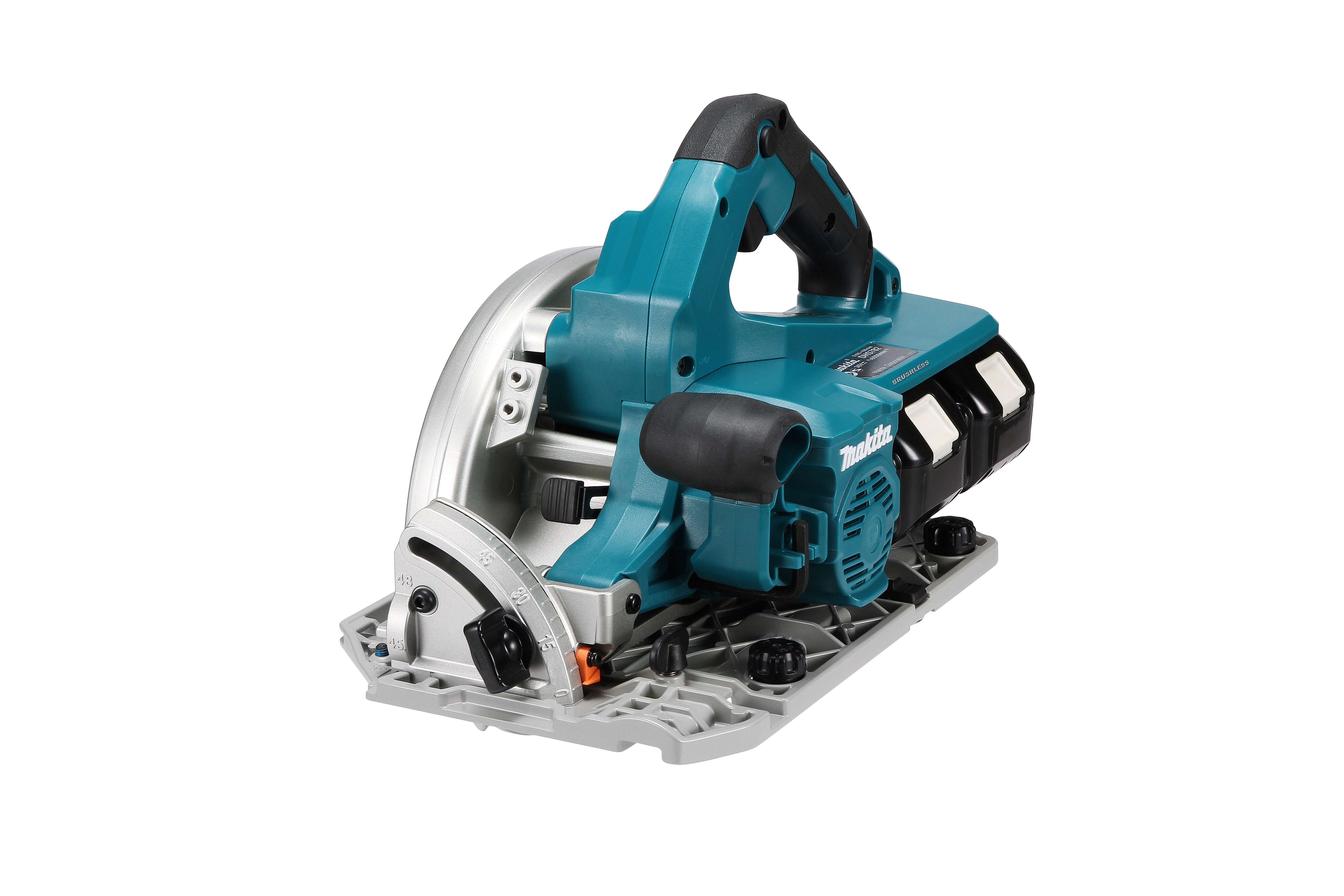

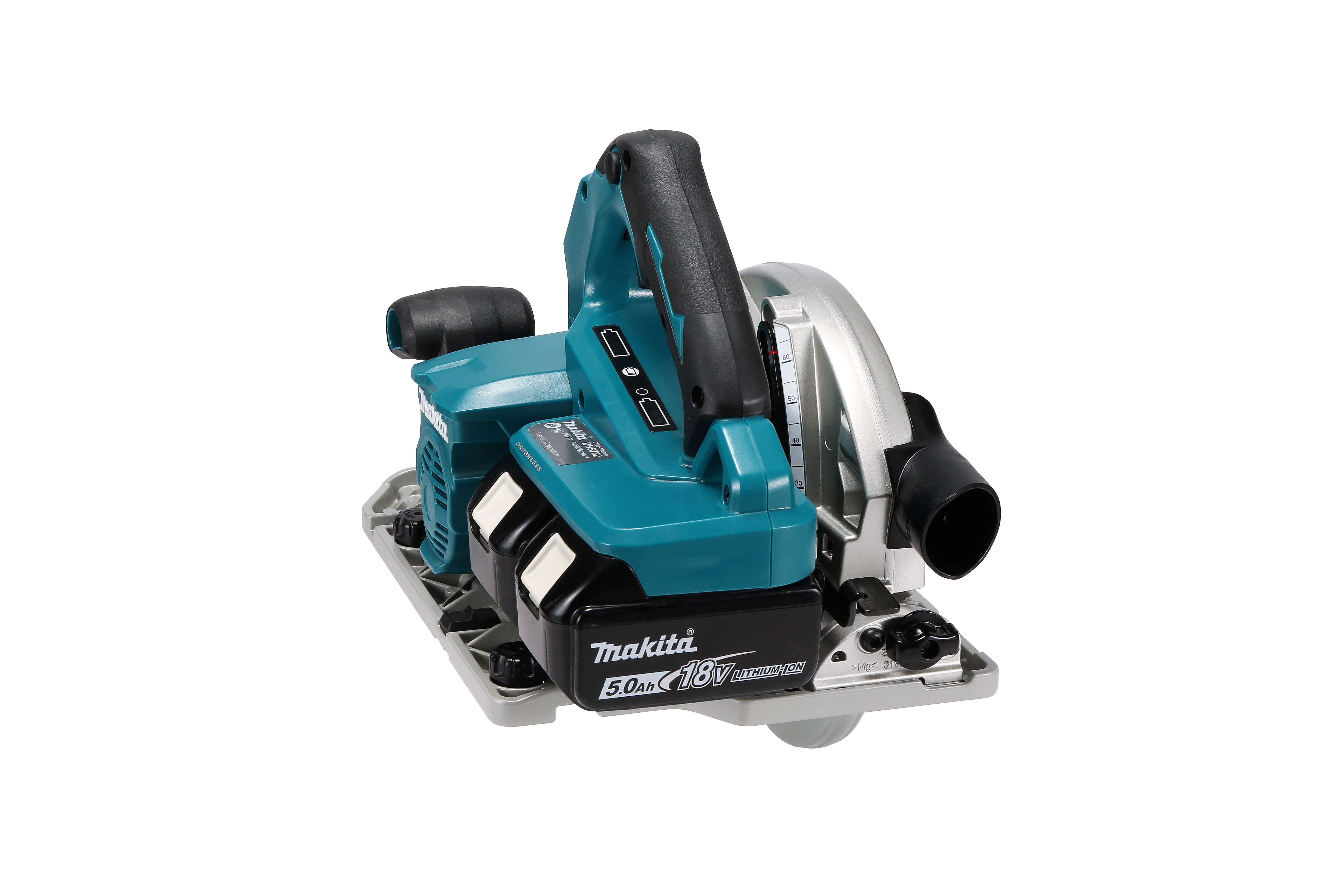

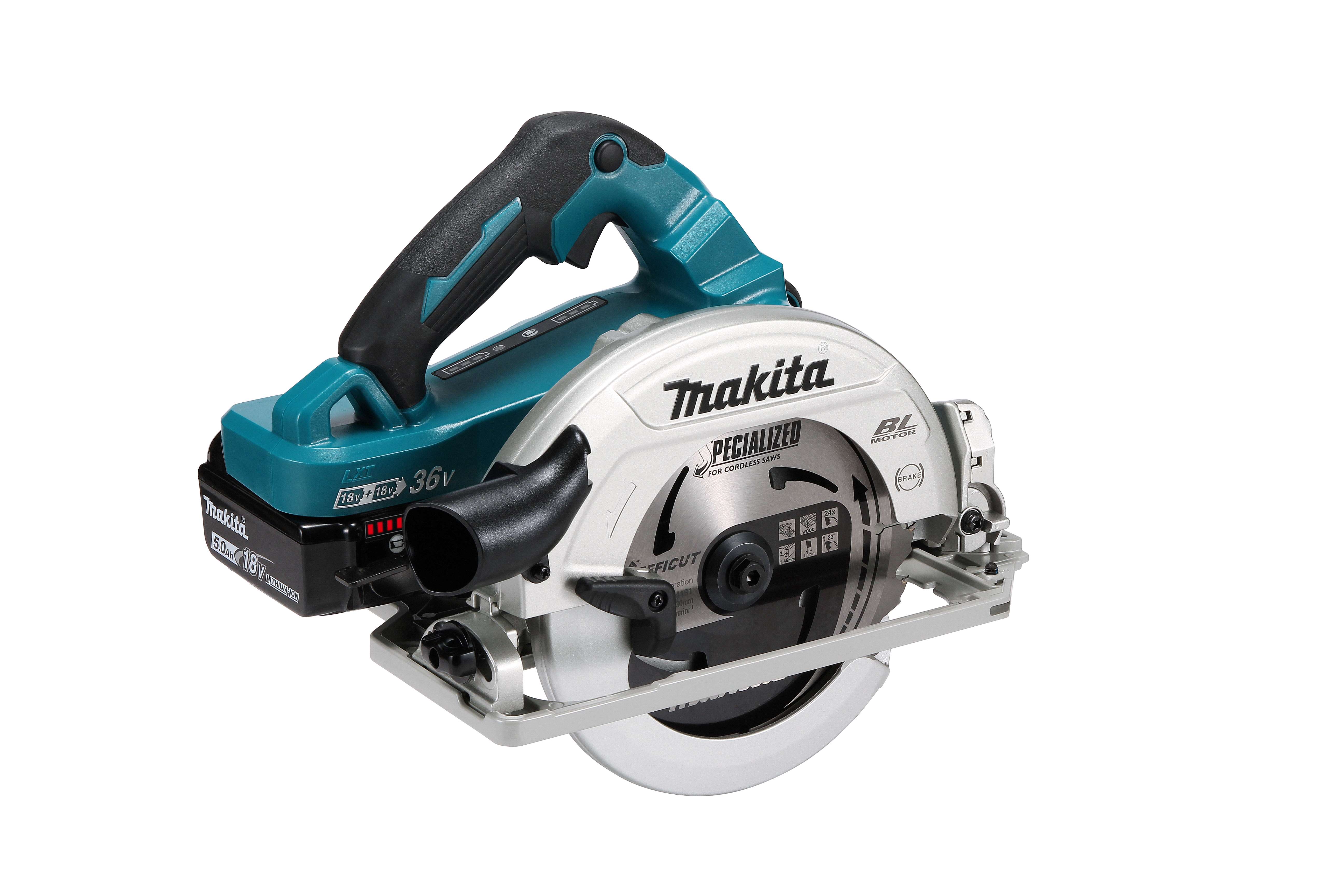

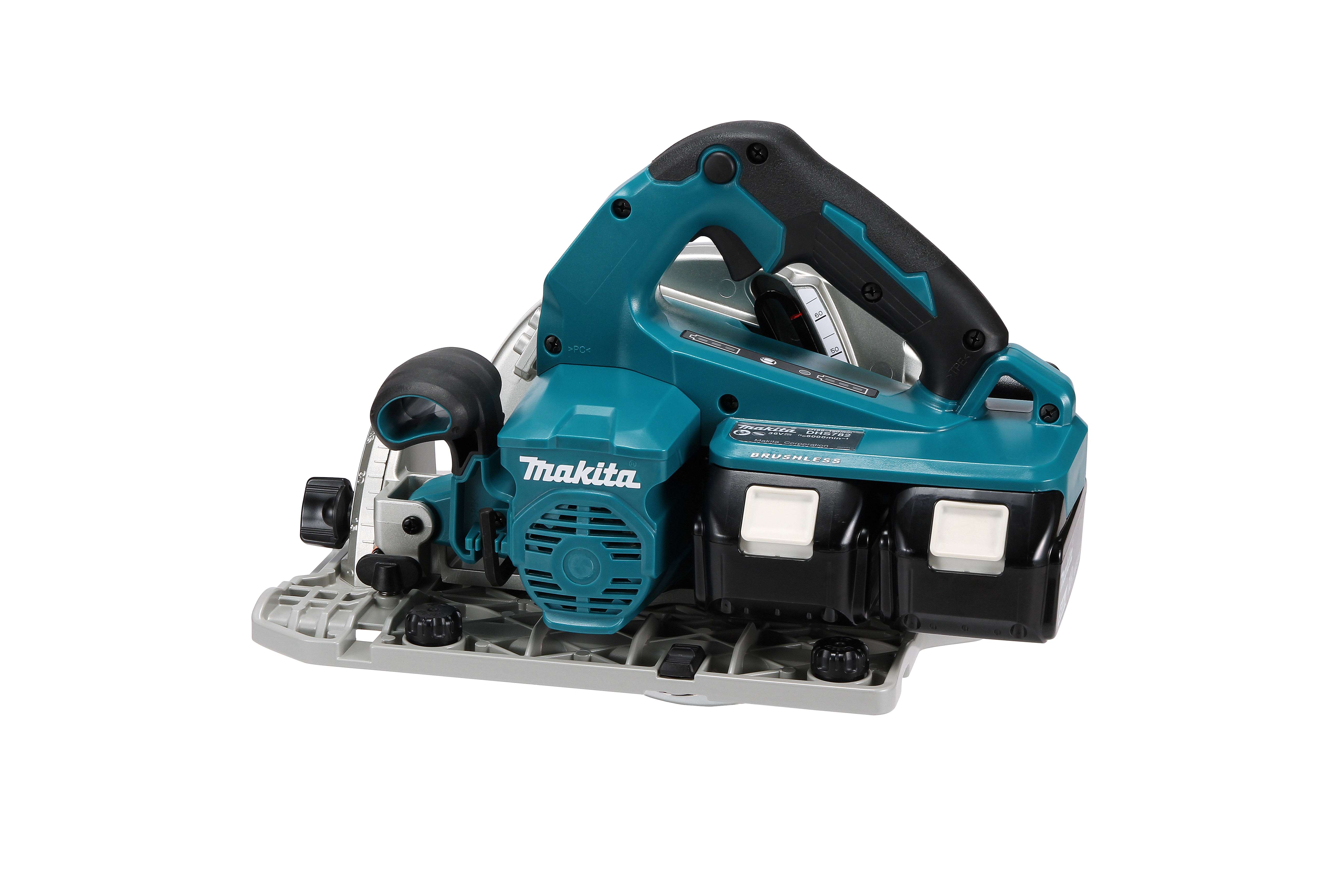

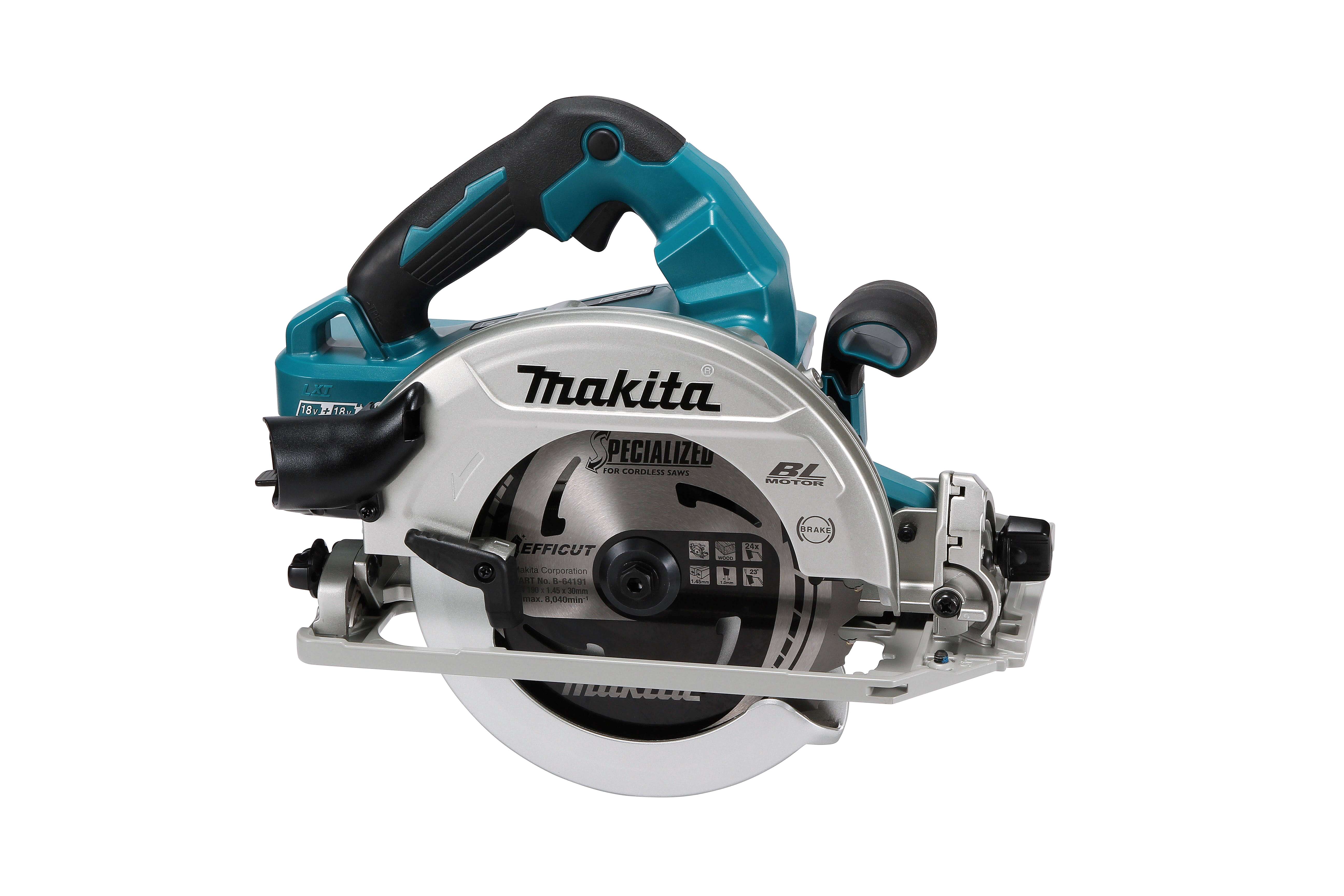

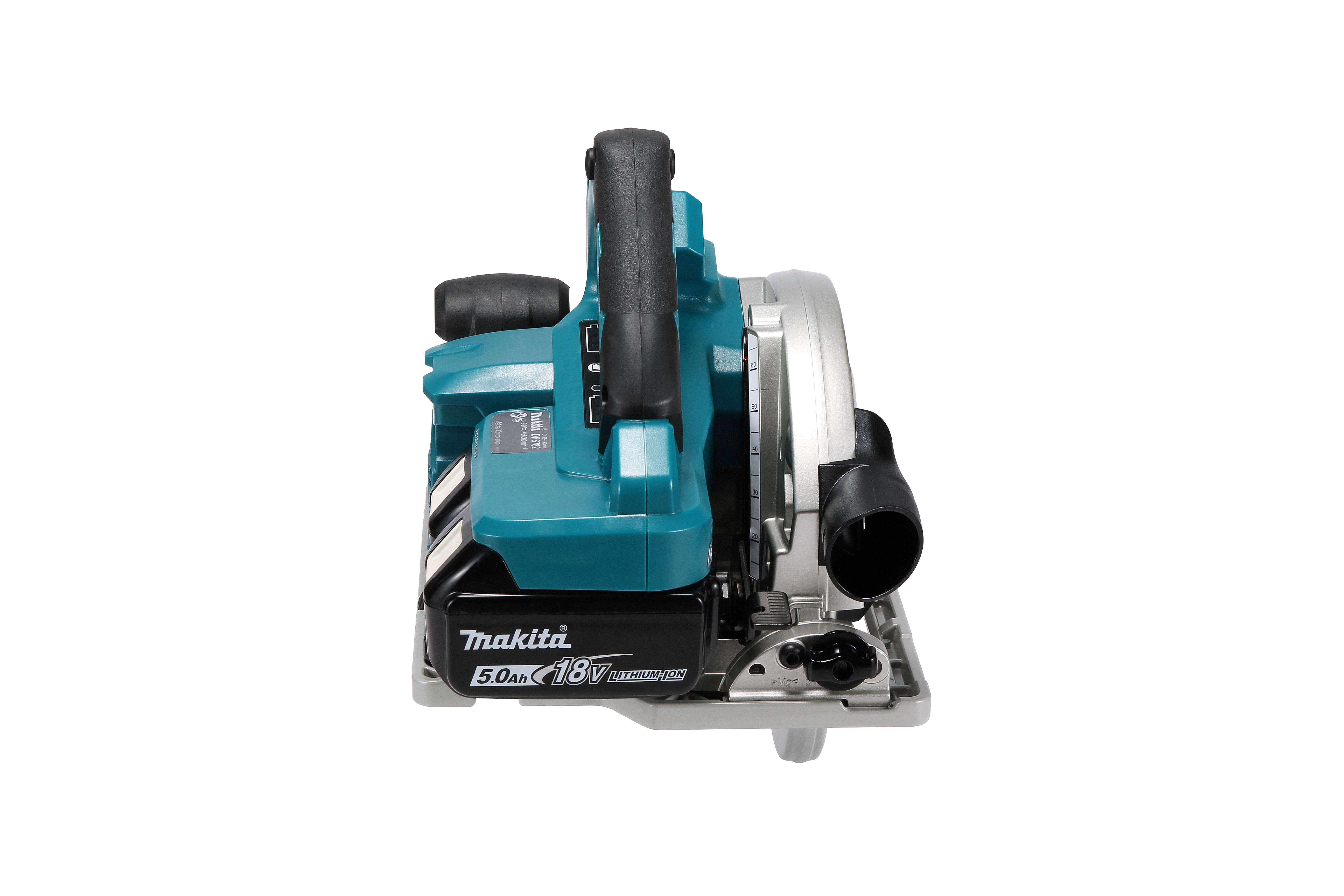

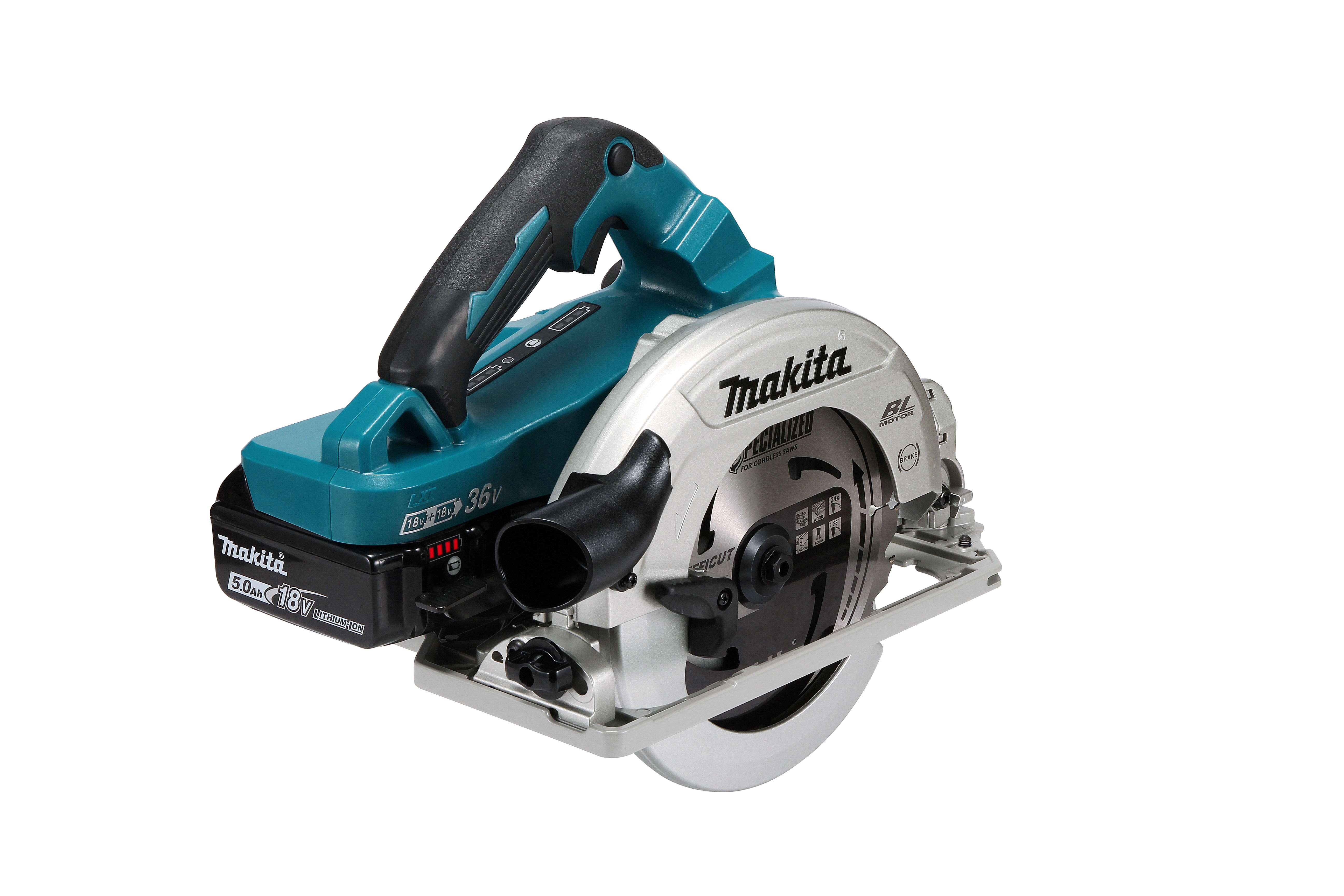

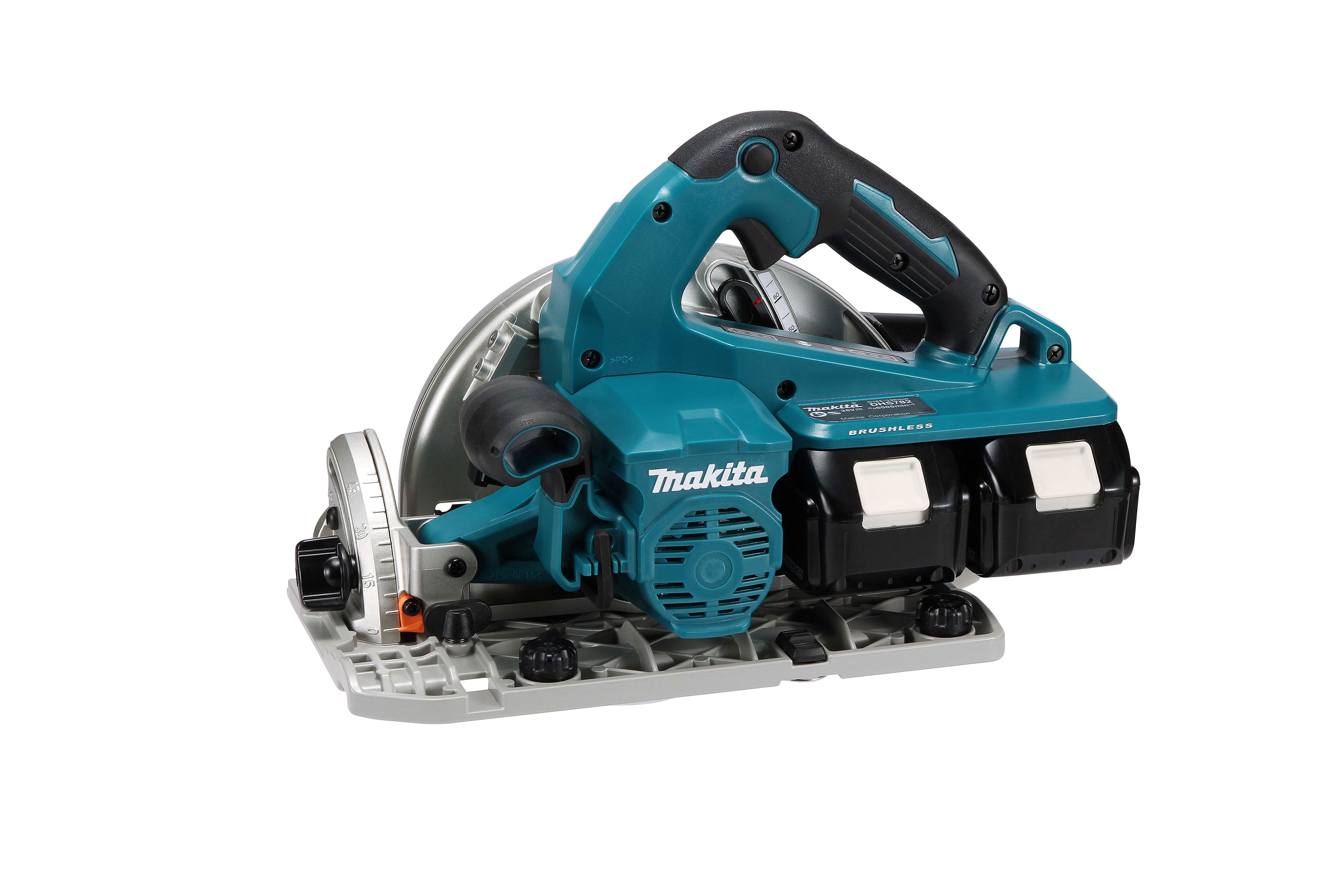

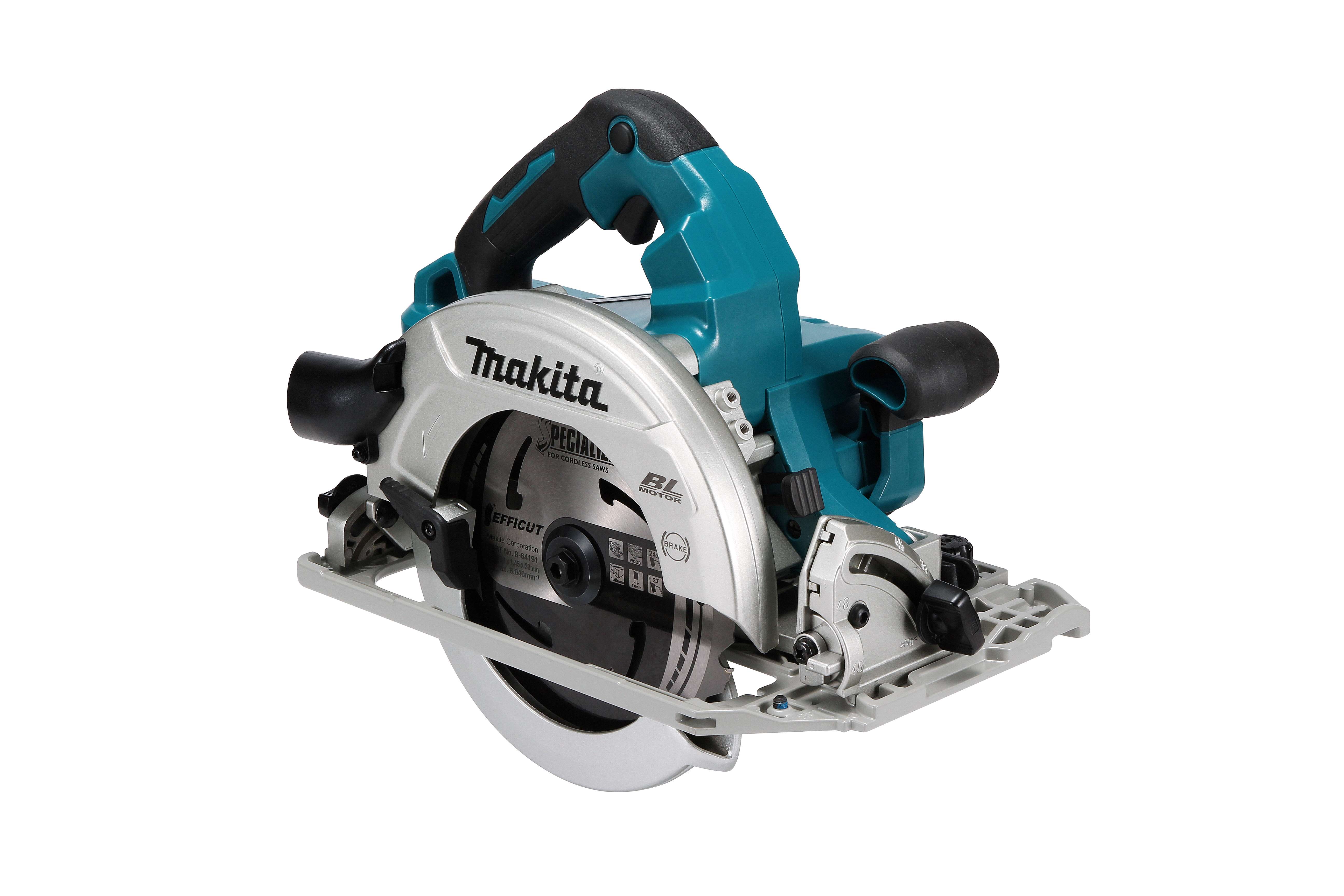

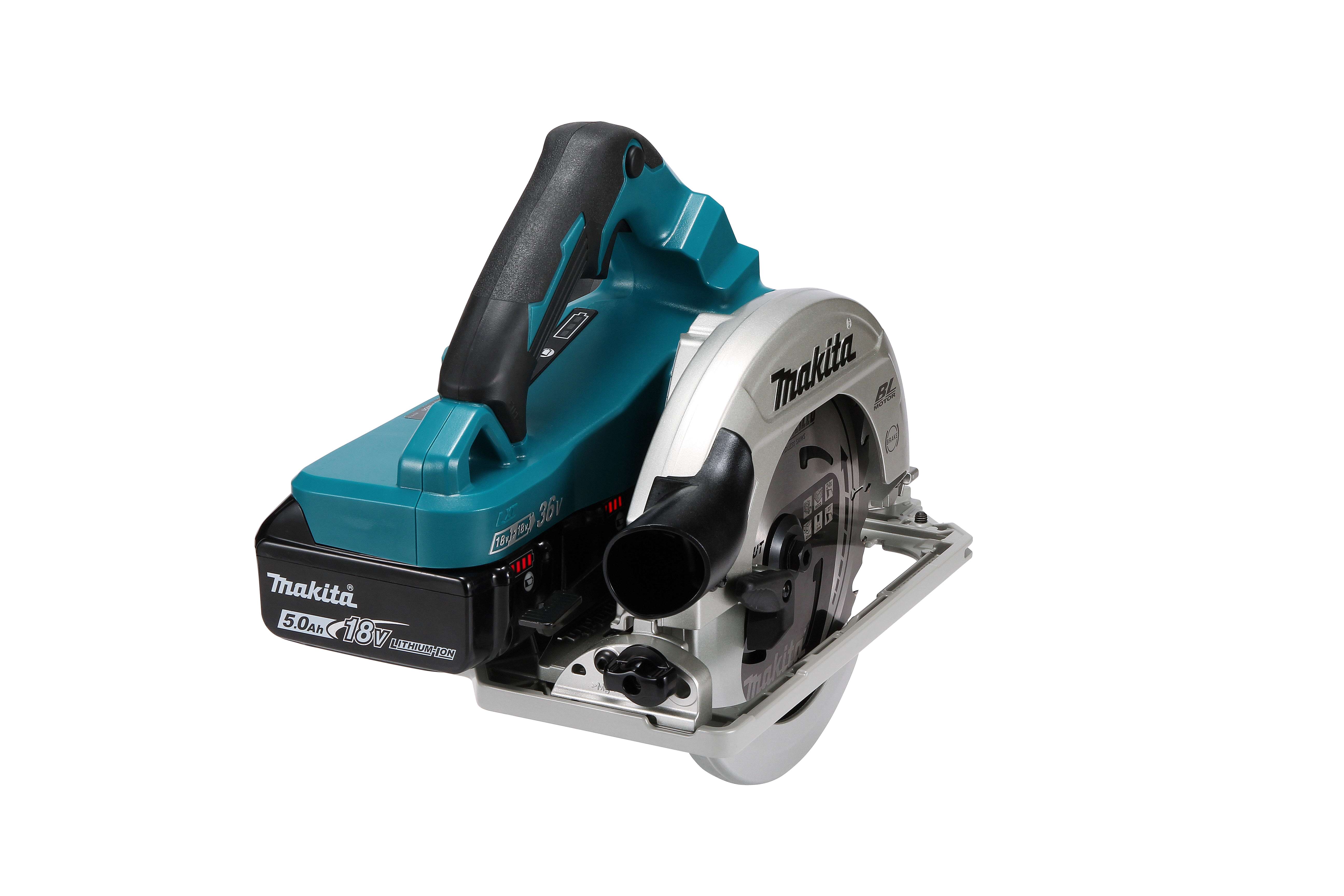

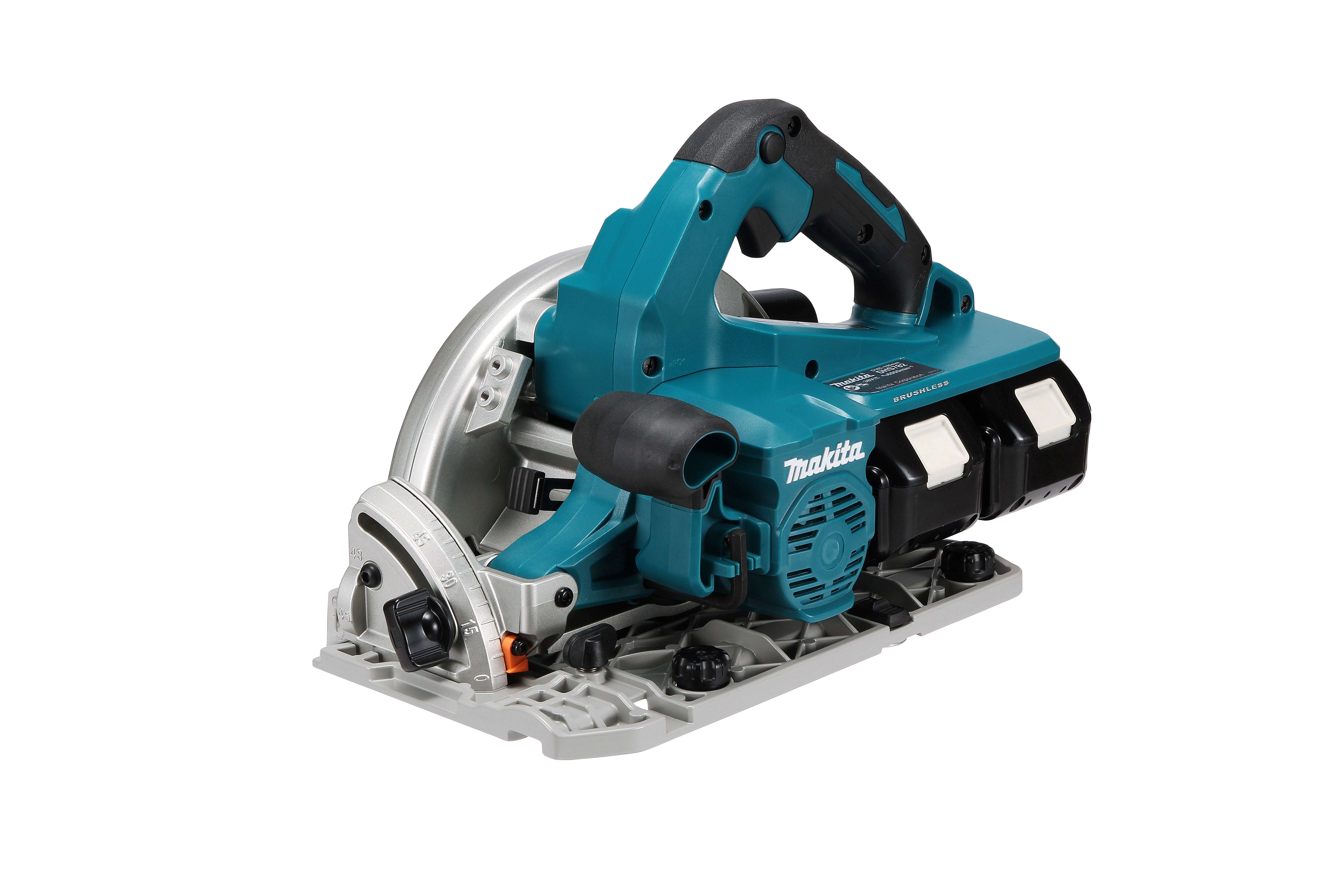

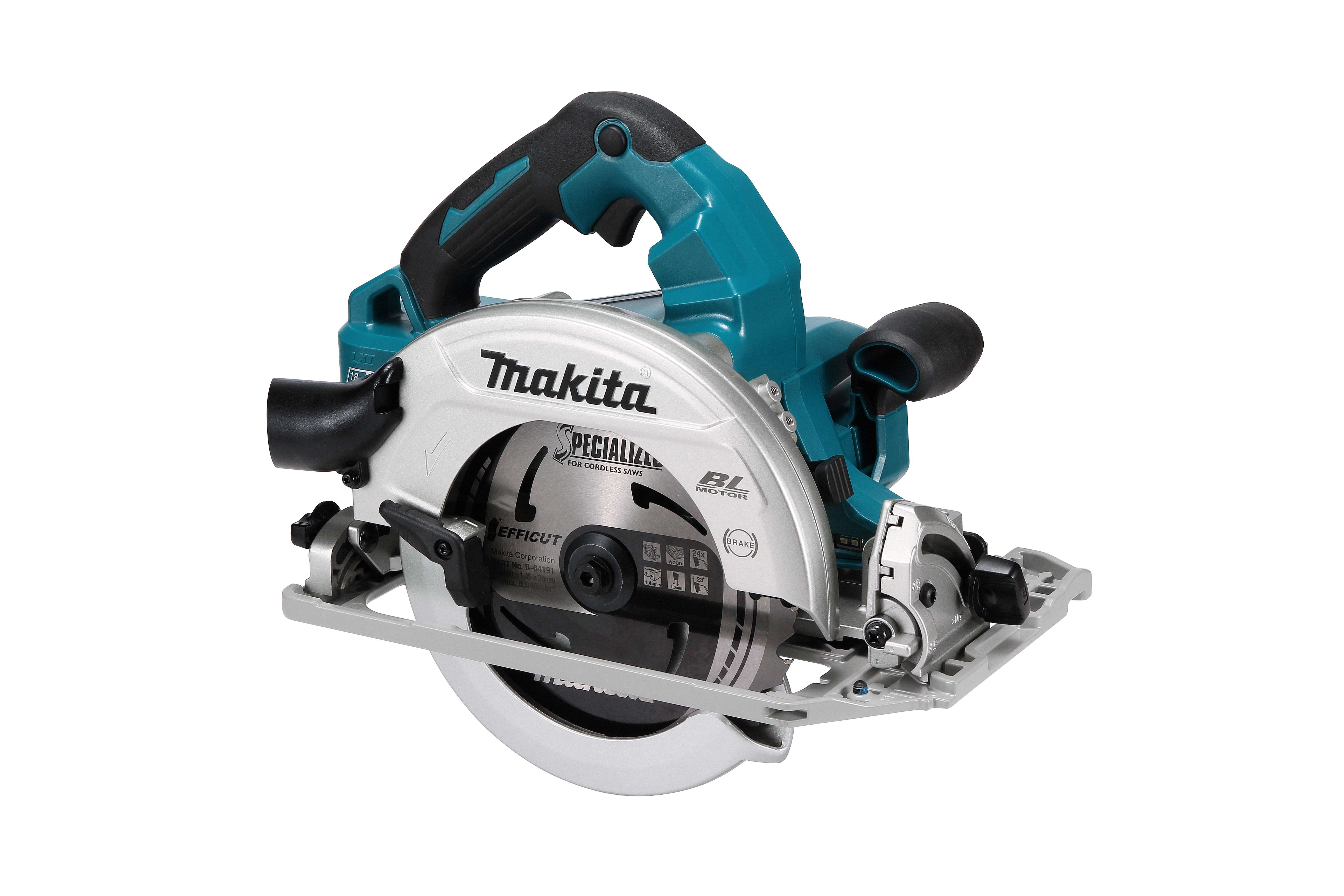

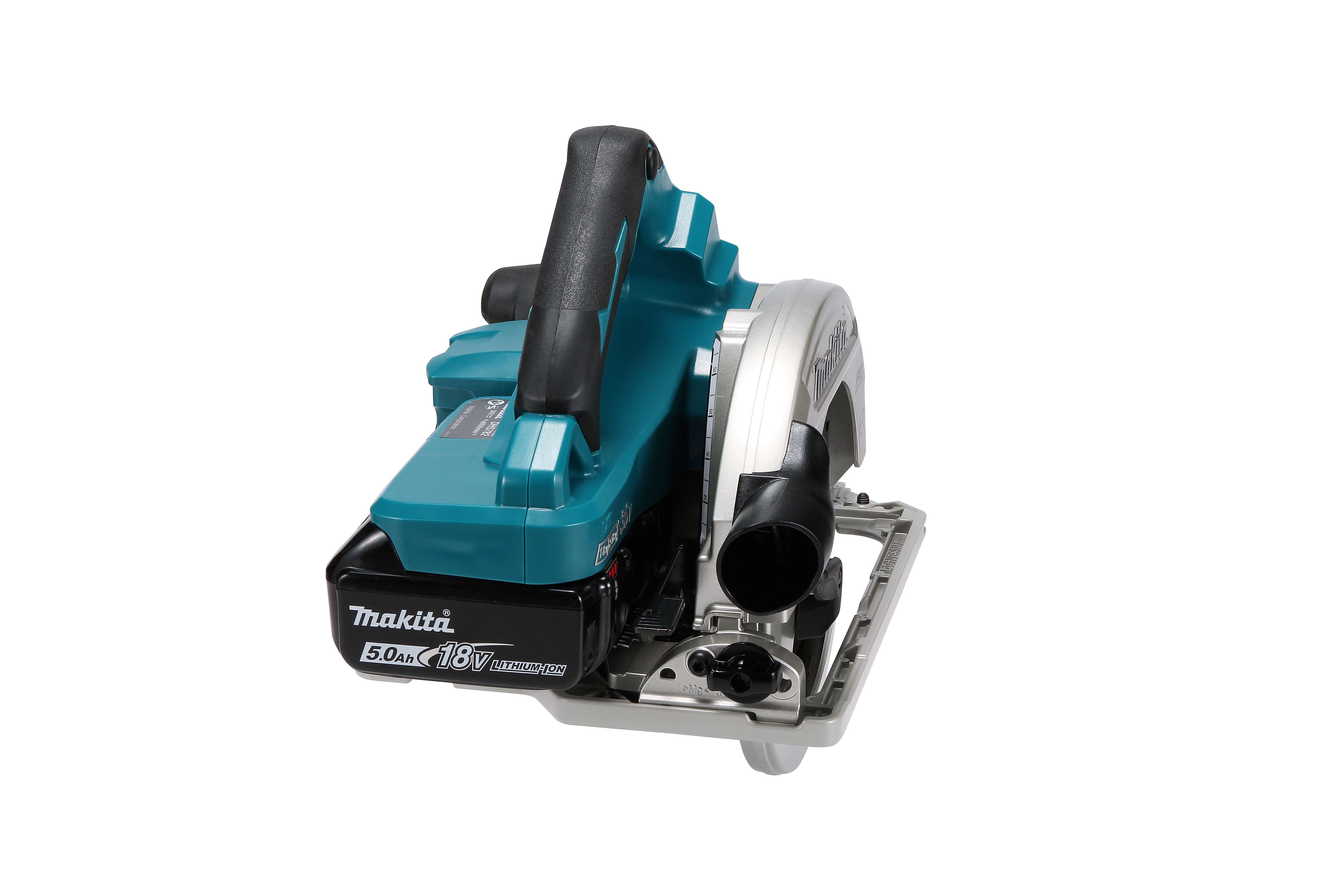

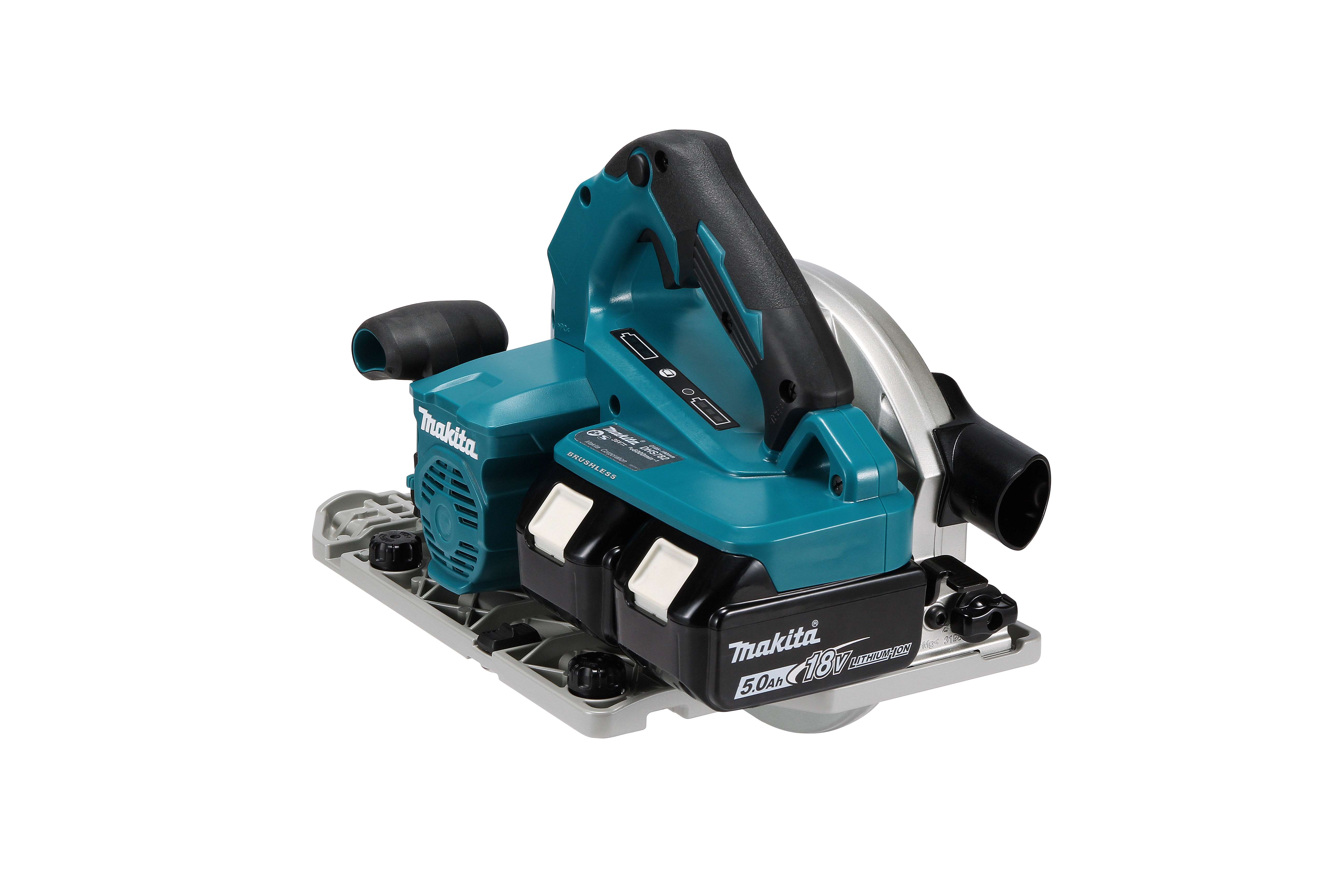

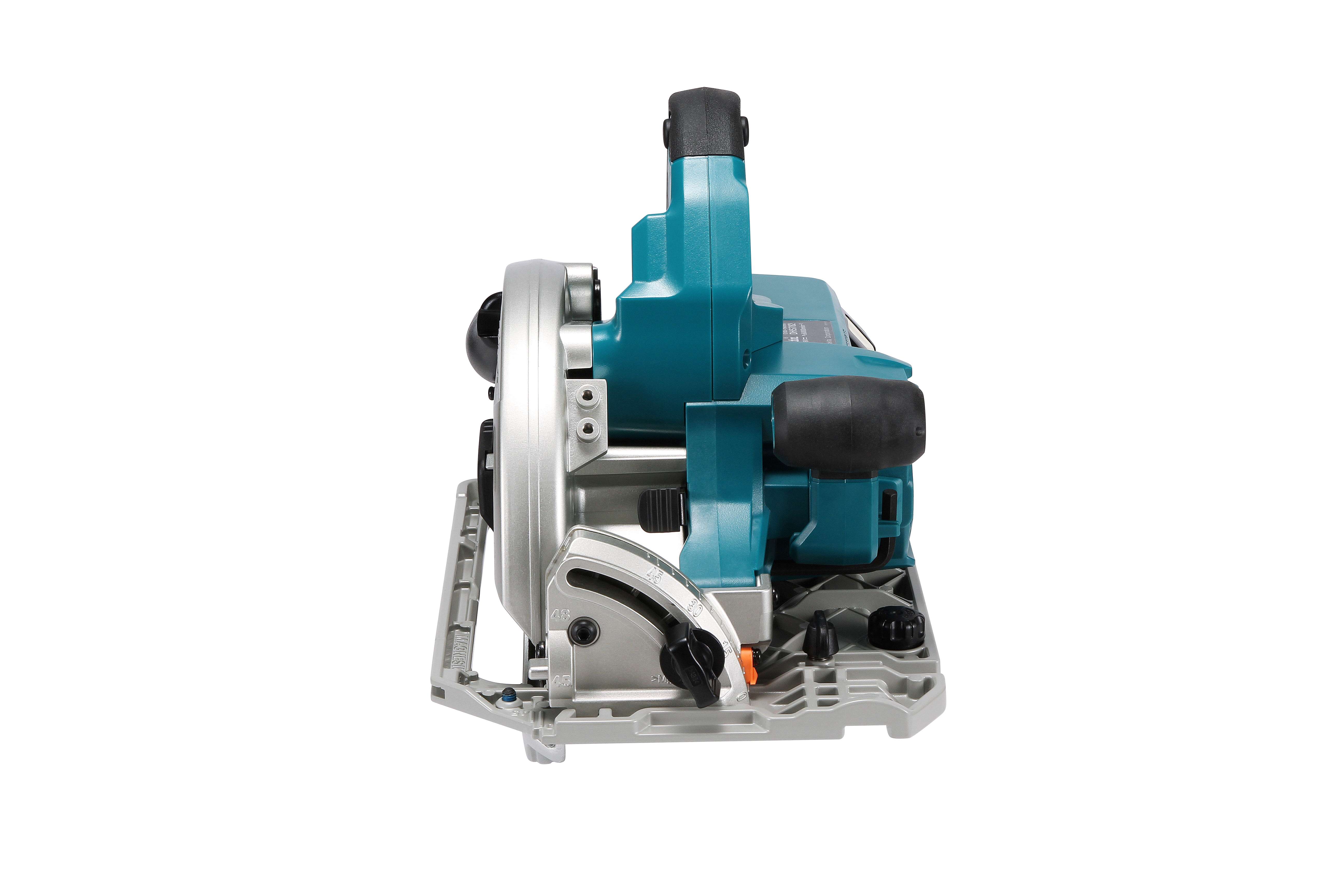

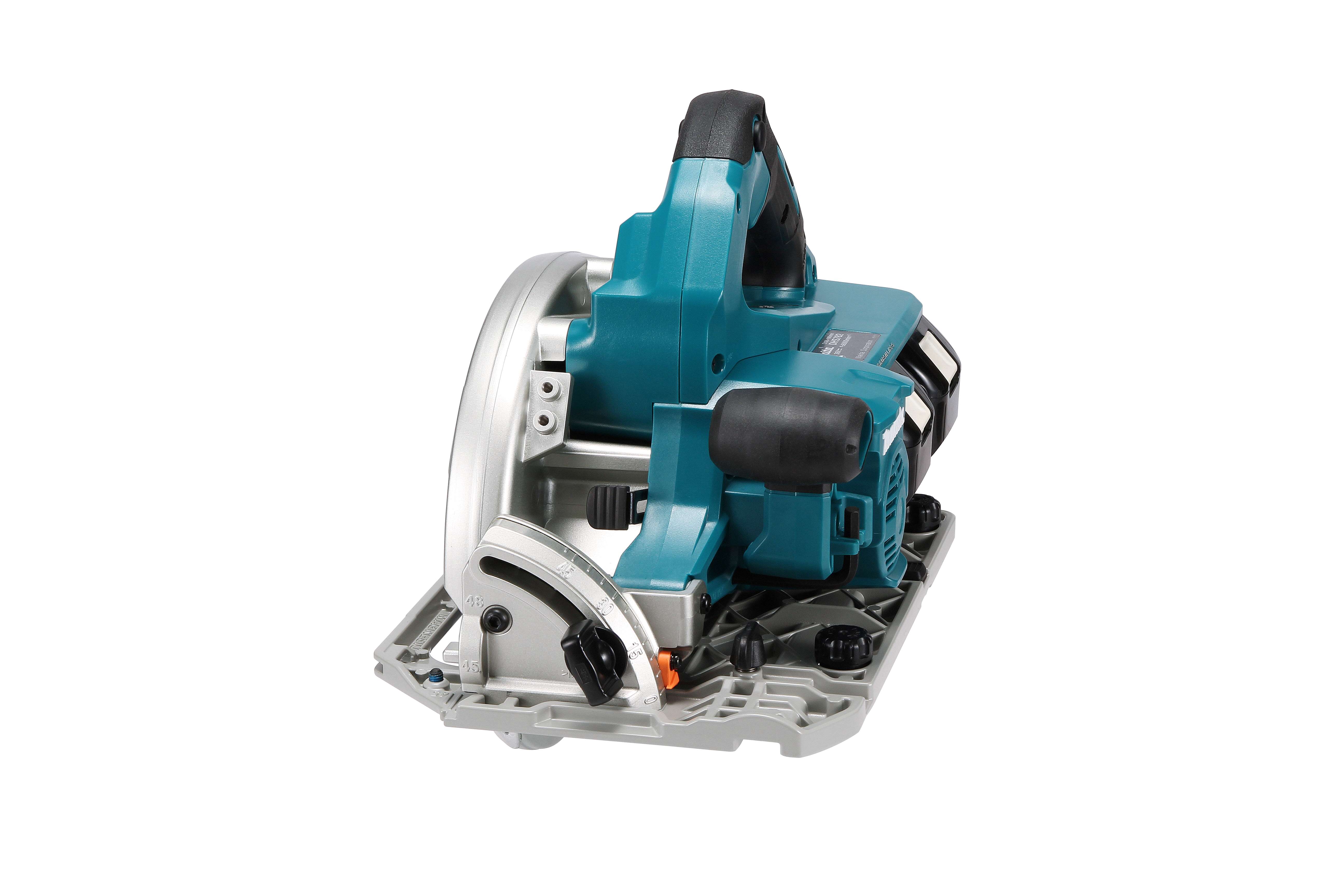

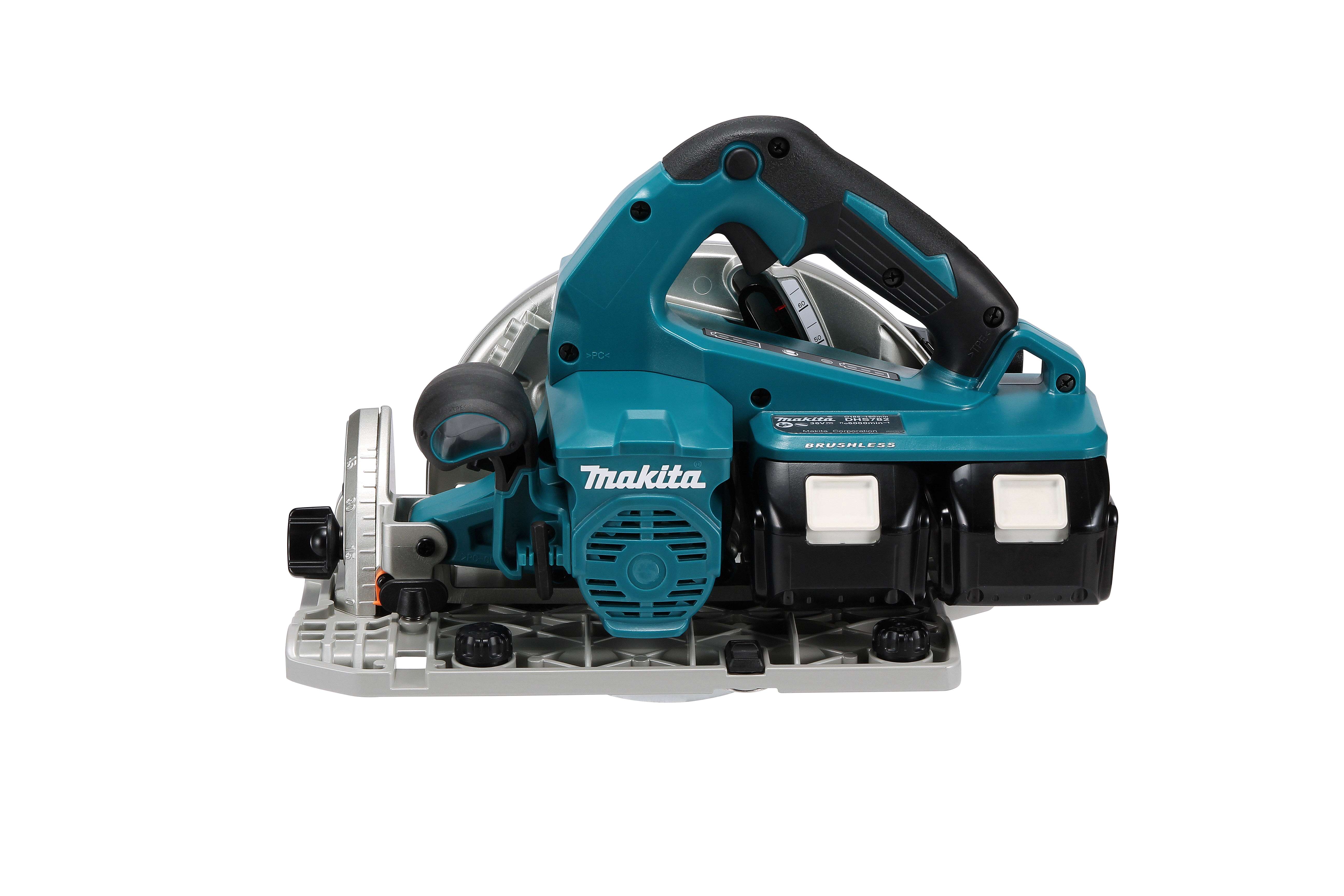

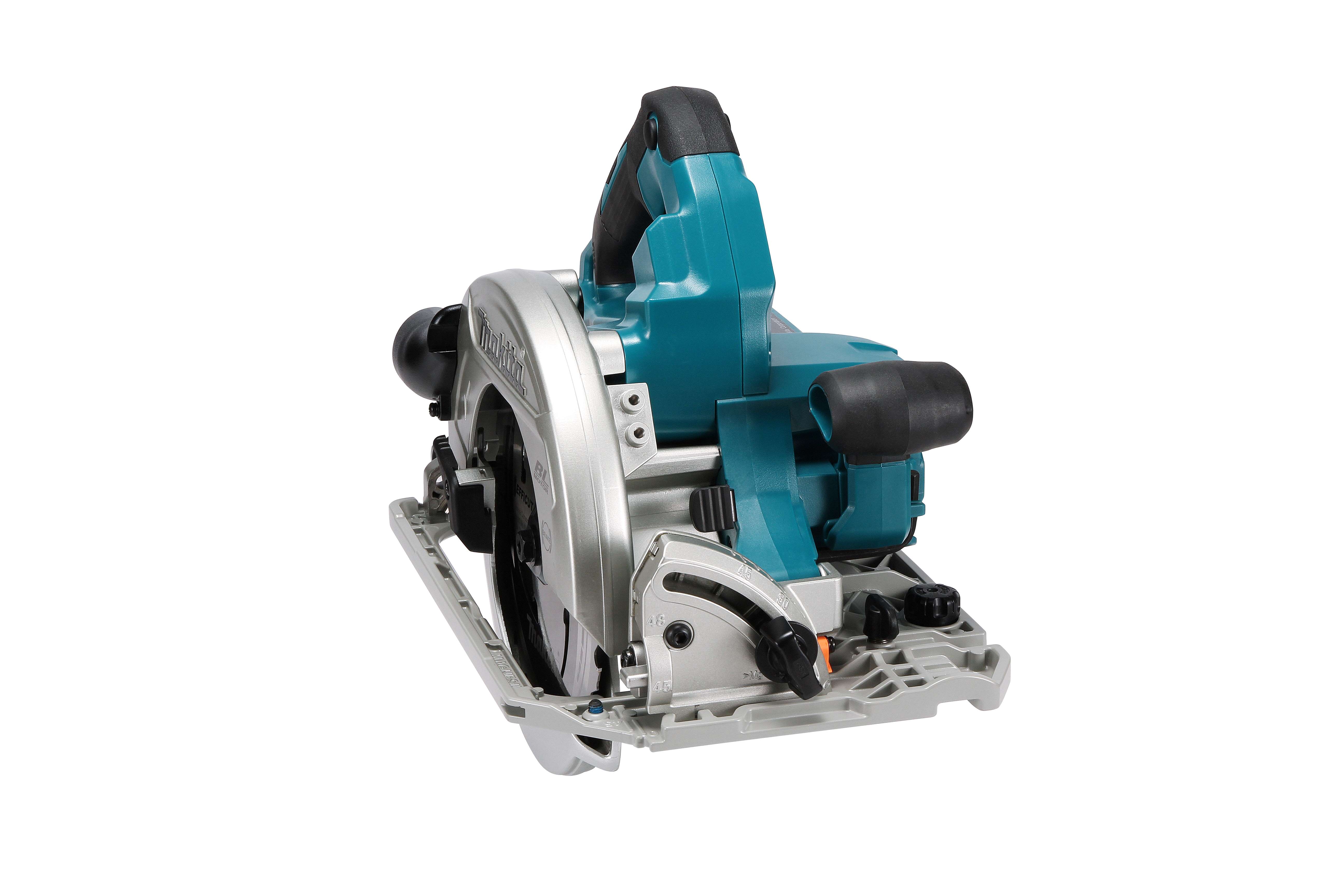

Cordless Circular Saw 18V LXT® BL, 185 mm

DHS782ZJ

Cordless Circular Saw 18V LXT® BL, 185 mm

Battery and charger are sold separately.

Highly robust circular saw for demanding applications Highly efficient cordless circular saw for demanding use. Brushless 36V motor runs on two 18V batteries. The blade can reach up to 60,000 rpm to ensure high cutting performance. The magnesium saw table is directly attached to the guide bar.

Technologies and functions Advantages Specifications

Technologies and functions

Advantages

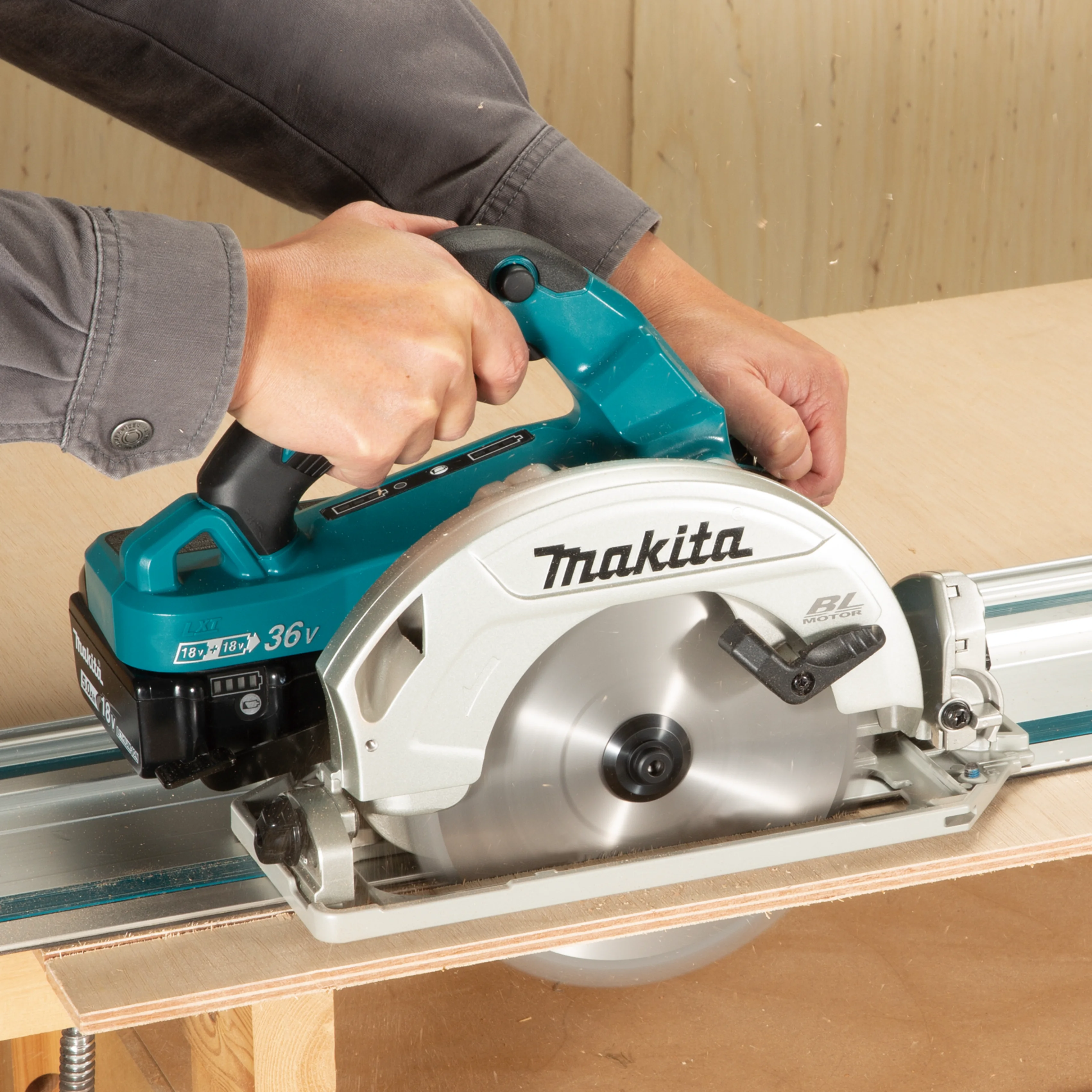

Compatible with Guide Rail without Adapter, Providing Precision Cutting
Increased visibility of ink line position
6,000 RPM for fast cutting
18V solution for corded power demands
Two 18V LXT Li-Ion batteries deliver the power and performance for corded demands without leaving the 18V LXT platform
BL motor delivers 6,000 RPM for fast cutting
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
Large cutting capacity (62.5 mm at 90°) and bevel capacity (0° - 48°) with a positive stop at 45°
Automatic torque Drive Technology (ADT) adjusts cutting speed and torque during cut for optimum performance
Overload alert using ADT lamp
Optional hook is compatible with 3X materials
High visibility of scale enables to adjust the scale without looking into the scale thanks to separation and relocation of scale
Electric brake for maximum productivity and increased operator safety
Greater blade visibility from motor side
Dual LED lights with preglow and afterglow functions for better illumination and more accurate work
Magnesium components create lightweight saws that are well-balanced and jobsite tough
Soft start for smooth start-ups
Water-resistance compatible with XPT
Soft grip provides increased comfort on the job. Lock-off (2 stage) safety switch for increased operator safety. Battery protection circuit protects against overloading, over-discharging and over-heating. Optional handy rip fence (guide rule) allows you to do extra-accurate straight cuts.

Specifications

Capacity, mm 185 - 190

Type of motor BLmotor

No load speed, rpm 6'000

Max output 1'800

Mounting diameter, mm 15,88 / 19 / 20 / 20,6 / 30

Толщина диска, мм 1.0

Глубина реза_ENG 0°: 62.5 - 60 mm / 45°: 44.5 - 43 mm / 48°: 42 - 41 mm

Platform 18V LXT®

Type of battery Li-Ion

Voltage, V 18

Charger

Compatible batteries 18 V x2: 6.0 Ah / 5.0 Ah / 4.0 Ah / 3.0 Ah / 2.0 Ah / 1.5 Ah

Brake

Constant speed

Built-in job light

Soft start

Dust Collection

Anti-restart function

Net Weight, kg 4.5

Vibration level, m/s² 2.5

Vibration K factor, m/s² 1.5

Sound pressure level, dB 93

Sound power level, dB 104

Noise K factor, dB 3

Depth, mm 348

Width, mm 210

Height, mm 290

Code EAN 0088381879712

Packaged Width, mm 395

Packaged Depth, mm 295

Packaged Height, mm 320

Weight (package), kg 7.09

HS code 8467223000
