Cordless Plunge Cut Saw 18V LXT® BL, 165 mm

DSP600Z

Cordless Plunge Cut Saw 18V LXT® BL, 165 mm

Battery and charger are sold separately.

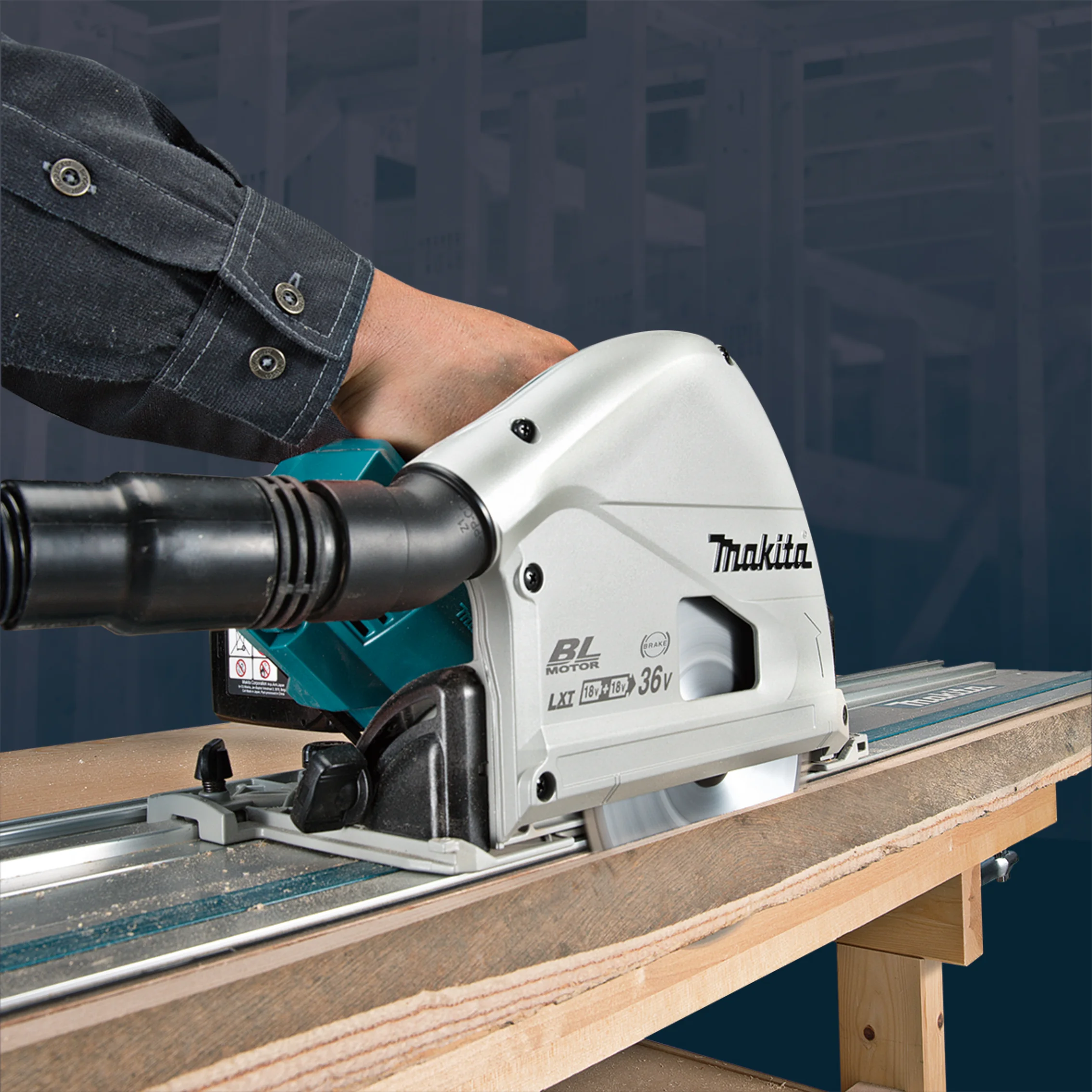

Precise brushless plunge cut circular saw for professional useA precise plunge cut circular saw with a brushless motor. Two 18V LXT® batteries offer a voltage of 36V. This fast saw has an adjustable speed of between 2 500 and 6 300 min⁻¹. Achieves neat cutting results when used with a guide rail.

Technologies and functions Advantages Specifications

Technologies and functions

Advantages

Up to 40% Faster Cutting than Corded Model SP6000
18V solution for corded power demands
Two 18V LXT Li-Ion batteries deliver the power and performance for corded demands without leaving the 18V LXT platform
BL motor delivers 6,300 RPM for fast cutting and ripping
BL motor with high power to weight and size ratio
BL motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
Automatic torque Drive Technology (ADT) adjusts cutting speed and torque during cut for optimum performance
Large cutting capacity (56 mm at 90º, 40 mm at 45º and 38 mm at 48º) and bevel capacity (-1° - 48°) with a positive stop at 22.5°
Precision accurate cutting delivers a splinter-free mirror finish
Depth stopper for splinter-free cutting enables to easily cut a preliminary groove at a depth of 2 mm
Variable speed dial control (2,500 - 6,300 RPM) for optimum performance in a variety of materials
Electronic soft start feature for smooth start-ups
Easy to set depth adjustment with large scale
Magnesium components deliver a well balanced and lightweight saw
Dual front and rear bevel supports provide additional rigidity for precise and accurate bevel cuts
Locking lever holds the blade in position so that the wrench can be inserted through the hole in the blade case for easier blade installation
Electric brake for improved productivity and increased operator safety. Rubberized handles for added comfort. Large rear dust port directs material away from the operator and easily connects to a vacuum system. Tip-resistant design minimizes the machine from falling down. Onboard hex wrench for fast and easy blade changes. Battery protection circuit protects against overloading, over-discharging and over-heating. Compatible with optional guide rail for increased maneuverability

Specifications

Capacity, mm 165

Type of motor BLmotor

No load speed, rpm 6300

Диапазон угла наклона (влево / вправо) - 1 / 48 °

Mounting diameter, mm 20

Толщина диска, мм 1

Глубина реза_ENG 0°: 56 mm / 45°: 40 mm / 48°: 38 mm

Platform 18V LXT®

Type of battery Li-Ion

Voltage, V 18

Capacity, Ah

Time of charging, min

Charger

Compatible batteries 18V x2: 6.0 Ah / 5.0 Ah / 4.0 Ah / 3.0 Ah / 2.0 Ah / 1.5 Ah

Variable speed

Brake

Constant speed

Soft start

Dust Collection

Net Weight, kg 4.4

Sound pressure level, dB 92

Sound power level, dB 103

Noise K factor, dB 3

Vibration level, m/s² 2.5

Vibration K factor, m/s² 1.5

Depth, mm 346

Width, mm 241

Height, mm 272

Code EAN 0088381844284

Packaged Width, mm 270

Packaged Depth, mm 390

Packaged Height, mm 290

Weight (package), kg 5.42

HS code 8467223000
