JS1602
Metal Shear 1,6 mm, 380 W

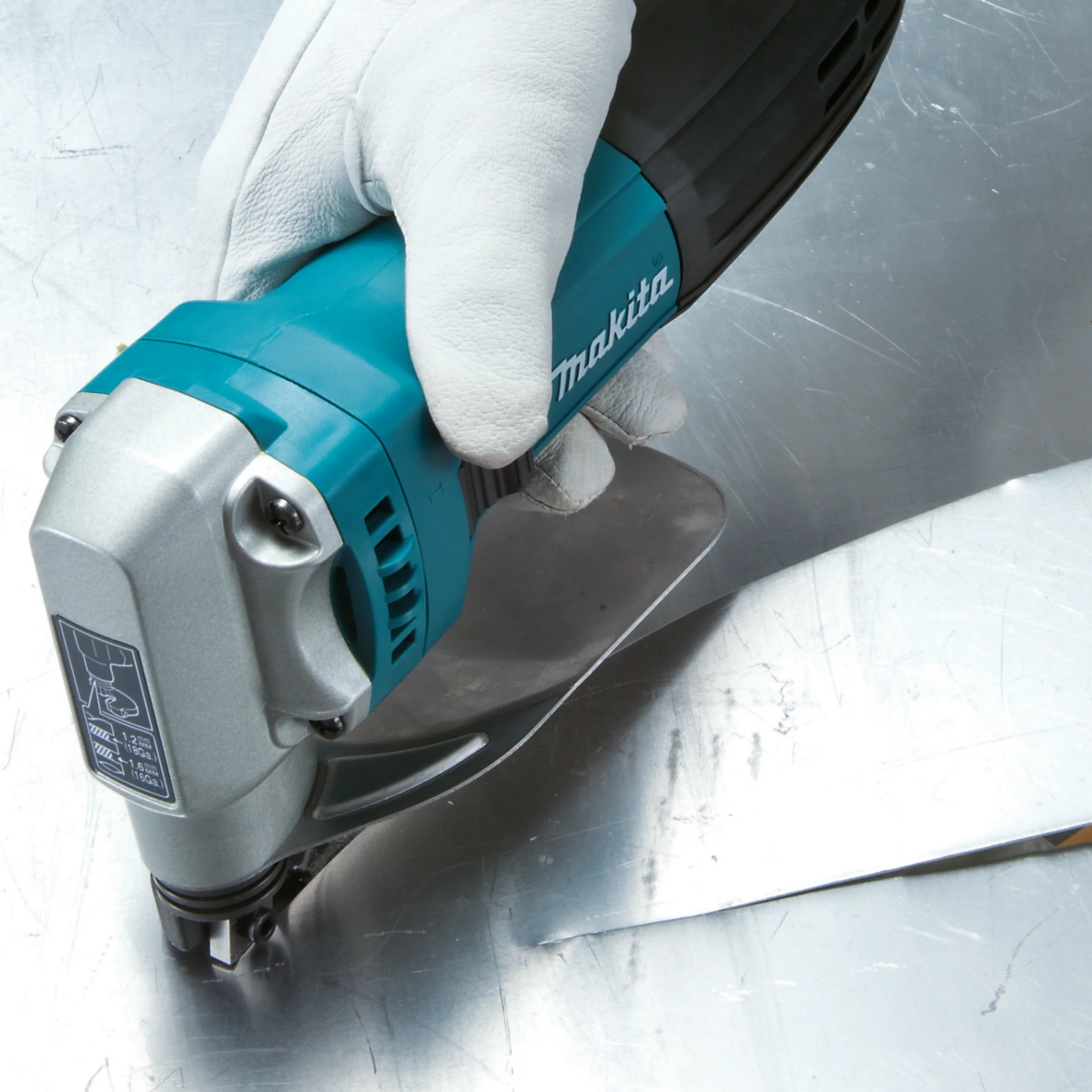

Handy, high-capacity metal shear. A metal shear for straight and curved cuts with a radius of 30 mm, cuts a clean-edged strip from the middle. A high cutting capacity of 2.5 mm for aluminium and 1.6 mm for steel. A motor capacity of 380W and a stroke rate of 4 000 min⁻¹
Technologies and functions
double-insulation
Double Insulation
Advantages
- Cuts 16 Ga. Mild Steel and 18 Ga. Stainless
- Powerful 380 W motor delivers 4,000 SPM for the most demanding applications
- Smaller circumference barrel grip (only 2-1/4”) for added comfort
- Refined design for increased control
- Lock-on slide switch for continuous operation
- Built-in thickness gauge for added convenience
- Engineered for continuous operation in 16 gauge mild steel and 18 gauge stainless steel
- Large easily replaceable blades with 8 cutting edge each
- Engineered to cut without the material loss in kerf typically associated with nibblers
- Highly visible line-of-sight for precise pattern following
- Engineered for cutting sheet metal and metal decking
- Double insulated
Specifications
Max cutting capacity, mm
Steel up to 400 N/mm²: 1.6 mm / Steel up to 600 N/mm²: 1.2 mm / Steel up to 800 N/mm²: 0.8 mm / Aluminum up to 200 N/mm²: 2.5 mm
Сontinuous rating input, W
380
Sanding strokes per minute
4'000
Type of motor
Brush
Double Insulation
Min. cutting radius, mm
30
Net weight, kg
1.6
Power supply cord, m
4
Sound pressure level, dB
79
Sound power level, dB
90
Noise K factor, dB
3
Vibration level, m/s²
7
Vibration K factor, m/s²
1.5
Carbon brush
459
Depth, mm
255
Width, mm
74
Height, mm
146
Code EAN
0088381634113
Packaged Width, mm
80
Packaged Depth, mm
320
Packaged Height, mm
190
Weight (package), kg
1
HS code
8467298509
